SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Cooling Fan


04 - Door


05 - Internal Controls


06 - Oven

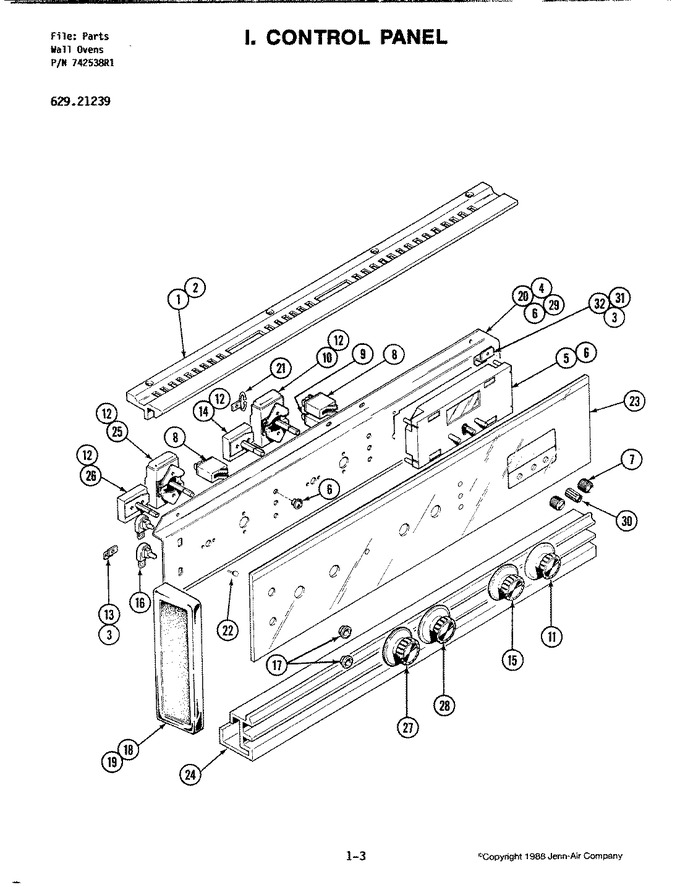

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	704251		Extrusion, Top		Appelez-nous	-
2	704714		Screw, Trim		Appelez-nous	-
3	WP12990527		Screw   (Replaces: Y708955)			Immediately	$ 7.15
3	WP74004005		Screw   (Replaces: Y708359)				$ 6.95
4	703277		Plate, Cover		Appelez-nous	-
5	Y703708		Clock		Appelez-nous	-
6	Y700630		Lens, Indicator Lights				$ 4.18
7	WP7711P492-60		Knob, Clock (sm/blk)   (Replaces: Y704239)				$ 12.13
8	Y702394		Light, Indicator 240v		Appelez-nous	-
9	Y702393		Light, Indicator-120v		Appelez-nous	-
10	703080		Thermostat-upper		Appelez-nous	-
11	Y704840		Knob, Thermostat				$ 21.24
12	71002058		Screw   (Replaces: Y702124)				$ 5.82
13	701609		Angle, Attachment		Appelez-nous	-
14	703078		Switch, Selector (upper)		Appelez-nous	-
15	WPY704841		Knob, Selector Switch   (Replaces: Y704841)				$ 40.37
16	DE81-08481A		Switch, Push   (Replaces: 701621)				$ 606.80
17	704323		Bezel, Switch		Appelez-nous	-
18	704257		End Cap (lt-blk)		Appelez-nous	-
19	704258		End Cap (rt-blk)		Appelez-nous	-
20	705334		Panel, Control		Appelez-nous	-
21	702746		Tie, Mount Cable		Appelez-nous	-
22	705331		Pad, Spacer		Appelez-nous	-
23	704866		Glass Control Panel		Appelez-nous	-
24	704896		Extrusion, Bottom		Appelez-nous	-
25	703081		Thermostat-lower		Appelez-nous	-
26	703079		Selector-lower		Appelez-nous	-
27	704857		Knob, Selector		Appelez-nous	-
28	704856		Knob, Thermostat		Appelez-nous	-
29	WP74004005		Screw   (Replaces: Y708359)				$ 6.95
30	WP7711P492-60		Knob, Clock (blk)   (Replaces: Y703910)				$ 12.13
31	703679		Palnut		Appelez-nous	-
32	704868		Harness, Wire Control		Appelez-nous	-
32	703089		Wire, Tan		Appelez-nous	-
32	DE81-04412A		Wire, Pink   (Replaces: 703090)				$ 327.97
32	703280		Harness-wire		Appelez-nous	-
32	703290		Wire, Resistor		Appelez-nous	-
32	DE81-09159A		Wire, Wire   (Replaces: 703370)				$ 313.88
32	703676		Bracket, Timer		Appelez-nous	-
