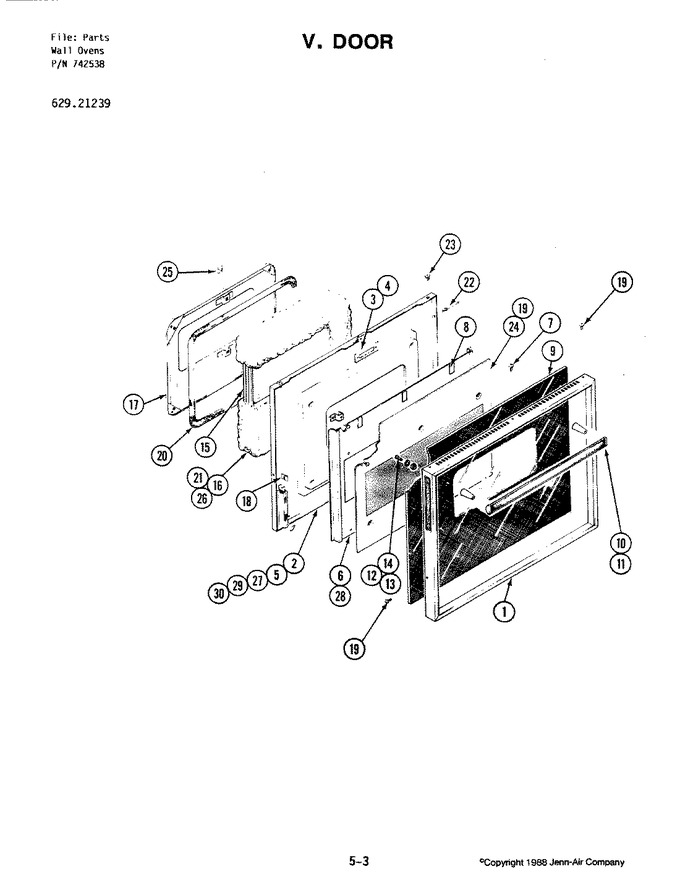

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	704318		Frame		Appelez-nous	-
2	712188		Liner, Door		Appelez-nous	-
3	703275		Plate, Latch (lower)		Appelez-nous	-
3	Y712010		Plate, Latch (upper)		Appelez-nous	-
4	WP210720		Rivet   (Replaces: 701662)				$ 12.14
5	703289		Stand-off Bracket (lower)		Appelez-nous	-
5	701652		Bracket, Stand-off		Appelez-nous	-
6	712250		Baffle		Appelez-nous	-
7	WPY706189		Screw (blk)   (Replaces: Y704238)			Immediately	$ 6.47
8	W10840861		Pad, Spacer   (Replaces: Y702688)				$ 8.89
9	Y703706		Glass, Outer		Appelez-nous	-
9	703709		Glass (lwr)		Appelez-nous	-
10	704859		Handle, Door----na		Appelez-nous	-
11	701832		Post, Mounting		Appelez-nous	-
12	715939		Bushing		Appelez-nous	-
13	Y700446		Washer				$ 5.27
14	Y703533		Screw		Appelez-nous	-
15	701648		Window Pack		Appelez-nous	-
15	703258		Window Pack (lower)		Appelez-nous	-
16	701658		Insulation, Bottom		Appelez-nous	-
17	Y712208		Plug (lower)		Appelez-nous	-
17	Y701649		Plug, Oven		Appelez-nous	-
18	Y700503		Clip, Retainer		Appelez-nous	-
19	W11233072		Screw (blk)   (Replaces: Y704237)			Immediately	$ 12.62
20	WPY702338		Seal (lwr)   (Replaces: Y703611)			Immediately	$ 172.53
20	WP701650		Seal, Oven Door   (Replaces: 701650)				$ 184.62
21	DE81-08905A		Insulation, Side   (Replaces: 701659)				$ 160.26
22	DE81-07129A		Rivet, Accordion   (Replaces: 701641)				$ 128.48
23	702657		Nut, Push-in		Appelez-nous	-
24	DE81-09358A		Panel, Perforated (upr)   (Replaces: 703784)				$ 54.82
25	Y700834		Clip		Appelez-nous	-
26	701660		Insulation, Top		Appelez-nous	-
27	703958		Screw		Appelez-nous	-
28	Y704223		Bumper, Button		Appelez-nous	-
29	715870		Screw		Appelez-nous	-
30	Y703449		Washer		Appelez-nous	-
30	703613		Spacer, Corner (lwr)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
