SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Cooling Fan
04 - Door

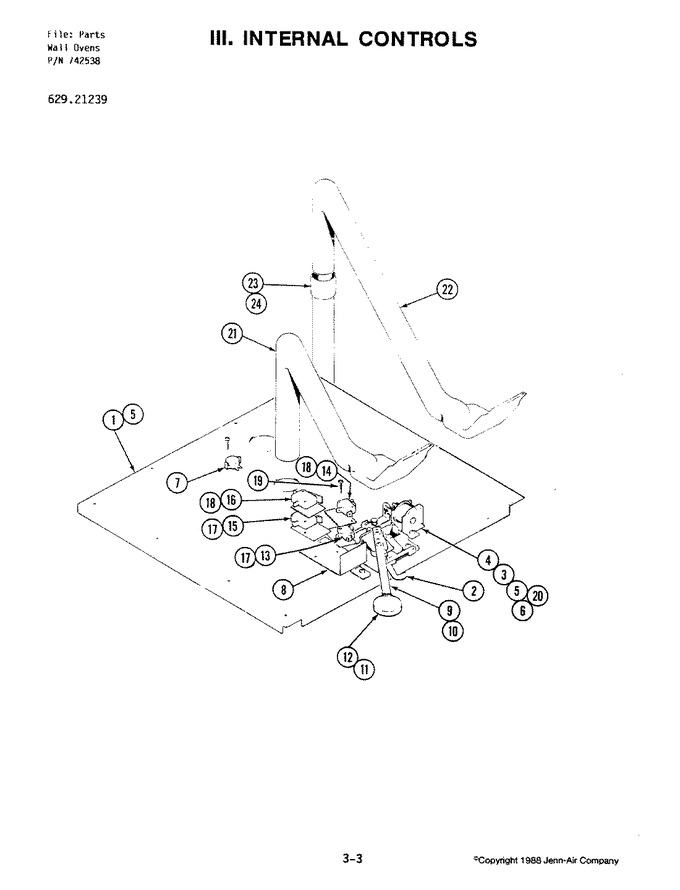

05 - Internal Controls
06 - Oven
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 704155 | Panel-top |
|
- | |||||
| 2 | Y703357 | Latch Assy. |
|
- | |||||
| 2 | 703067 | Tube, Vent-top (upper) |
|
- | |||||
| 3 | Y701686 | Pin, Cotter |
|
- | |||||
| 4 | Y702526 | Solenoid |
|
- | |||||
| 5 | WP12990527 | Screw (Replaces: Y708955) |
|
Immediately | $ 7.15 | ||||
| 6 | 703767 | Wire, Gray |
|
- | |||||
| 7 | 703259 | Limit, Thermostat |
|
- | |||||
| 7 | 701687 | Thermostat |
|
- | |||||
| 8 | 701706 | Shield, Switch |
|
- | |||||
| 9 | Y701690 | Lever, Latch |
|
- | |||||
| 10 | 707407 | Screw |
|
$ 6.42 | |||||
| 11 | 701671 | Spring, Knob |
|
- | |||||
| 12 | 701670 | Knob, Lever |
|
- | |||||
| 13 | Y702360 | Switch, Solenoid |
|
- | |||||
| 14 | Y703732 | Switch, Latch |
|
- | |||||
| 15 | 702805 | Switch, Door |
|
- | |||||
| 16 | 702806 | Switch, Door |
|
- | |||||
| 17 | Y702350 | Insulator |
|
- | |||||
| 18 | 703264 | Insulator |
|
- | |||||
| 19 | 702807 | Screw |
|
- | |||||
| 20 | 703767 | Wire, Gray |
|
- | |||||
| 21 | 703066 | Tube, Vent Offset (upper) |
|
- | |||||
| 23 | 703068 | Tube, Vent-rear |
|
- | |||||
| 24 | 704373 | Tube, Vent Bottom |
|
- |
