SELECT A DIAGRAM
01 - Body
02 - Control Panel

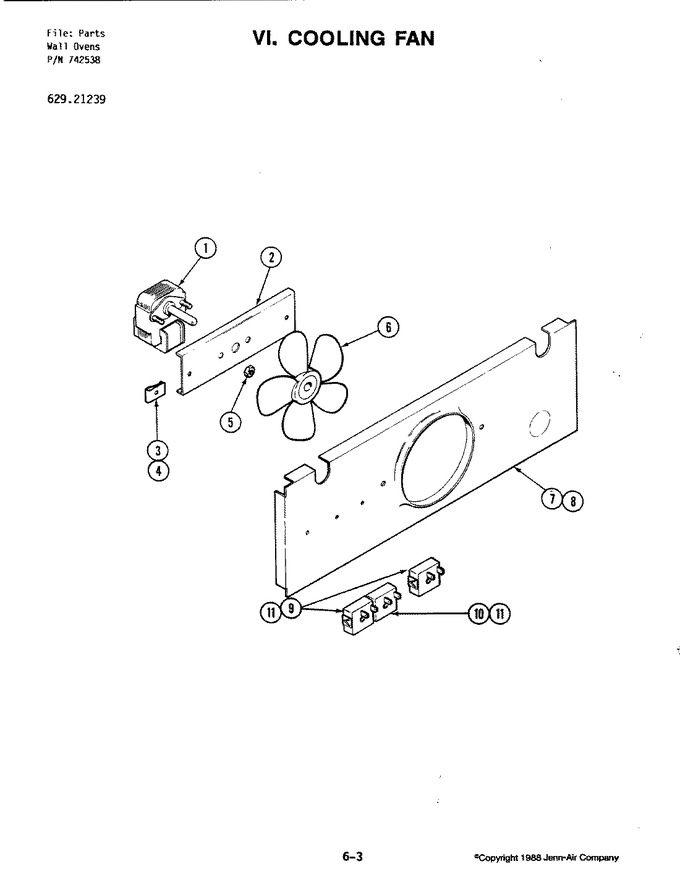

03 - Cooling Fan
04 - Door
05 - Internal Controls
06 - Oven
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y701721 | Motor, Fan |
|
- | |||||
| 2 | Y703570 | Mount, Motor |
|
- | |||||
| 3 | Y700556 | Clip, J |
|
- | |||||
| 4 | WP90767 | Screw (Replaces: 715773) |
|
Immediately | $ 7.04 | ||||
| 5 | M0282005 | Nut,no.6-32 Hex (Replaces: Y707149) |
|
$ 7.07 | |||||
| 6 | 701718 | Blade, Fan |
|
- | |||||
| 7 | 704336 | Plate, Motor |
|
- | |||||
| 8 | 712025 | Plenum, Upper |
|
- | |||||
| 9 | 704354 | Switch, Bake Cycle |
|
- | |||||
| 10 | 704355 | Switch, Broil Cycle |
|
- | |||||
| 10 | 703280 | Harness-wire |
|
- | |||||
| 11 | 704335 | Screw |
|
- |
