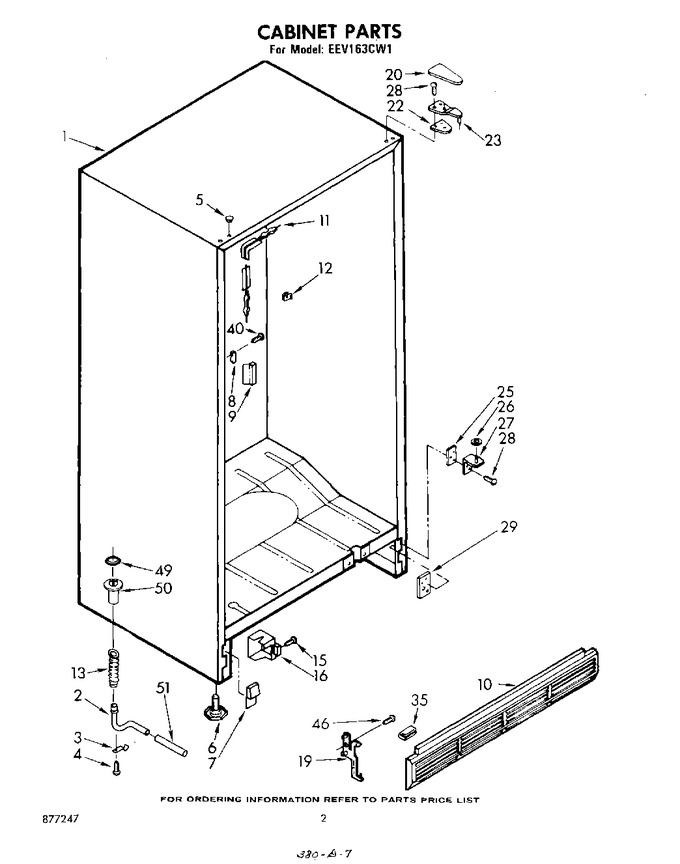

SELECT A DIAGRAM

02 - Cabinet


03 - Door , Lit/optional


04 - Unit


05 - Liner


06 - Breaker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	842257		Extension, Fitting		Appelez-nous	-
3	841648		Clip, Drain		Appelez-nous	-
4	488845		Screw, 8-32 X 1/2		Appelez-nous	-
5	989876		Plug, Hole (3) (new Gold)		Appelez-nous	-
5	989875		Plug, Hole (3) (coffee)		Appelez-nous	-
5	985874		Plug, Hole (3) (copper)		Appelez-nous	-
5	985873		Plug, Hole (3) (avocado)		Appelez-nous	-
5	842034		Plug, Hole (3) (gold)		Appelez-nous	-
5	842031		Plug, Hole (3) (white)		Appelez-nous	-
5	989195		Plug, Hole (3) (almond)		Appelez-nous	-
5	989877		Plug, Hole (3) (new Avocado)		Appelez-nous	-
6	W11117769		Leveler (2)   (Replaces: 848392)			Immediately	$ 16.61
7	839178		Filler, Grille		Appelez-nous	-
8	991992		Bracket, Strike		Appelez-nous	-
9	839865		Cover, Strike		Appelez-nous	-
10	981089		Grille		Appelez-nous	-
11	851608		Heater, Stile		Appelez-nous	-
12	488295		Clip, Speed		Appelez-nous	-
13	842256		Fitting, Drain		Appelez-nous	-
15	WP488729		Screw, 8 X 1/2   (Replaces: 486993)			Immediately	$ 7.01
16	549947		Box, Junction		Appelez-nous	-
19	844614		Support, Grille (2)		Appelez-nous	-
20	985877		Cover, Hinge (avocado)		Appelez-nous	-
20	989897		Cover, Hinge (new Avocado)		Appelez-nous	-
20	989896		Cover, Hinge (new Gold)		Appelez-nous	-
20	989895		Cover, Hinge (coffee)		Appelez-nous	-
20	989184		Cover, Hinge (almond)		Appelez-nous	-
20	842010		Cover, Hinge (white)		Appelez-nous	-
20	842014		Cover, Hinge (gold)		Appelez-nous	-
20	985878		Cover, Hinge (copper)		Appelez-nous	-
22	836151		Shim, Hinge		Appelez-nous	-
23	842038		Hinge, Top		Appelez-nous	-
25	836196		Shim, Hinge		Appelez-nous	-
26	WP487802		Washer   (Replaces: 488723)			Immediately	$ 7.12
27	836686		Hinge (bottom)		Appelez-nous	-
28	WP999367		Screw, 10-32 X 3/4   (Replaces: 488948)				$ 7.07
28	488949		Screw (repair)		Appelez-nous	-
29	836162		Tap Plate		Appelez-nous	-
35	546131		Bumper (2)		Appelez-nous	-
40	WP489128		Screw, 8-32 X .375   (Replaces: 488500)				$ 9.79
46	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 12.62
49	835370		Drain Cover		Appelez-nous	-
50	934607		Drain, Ferrule Cap		Appelez-nous	-
51	842260		Drain Hose		Appelez-nous	-
