SELECT A DIAGRAM
02 - Cabinet
03 - Door , Lit/optional
04 - Unit
05 - Liner

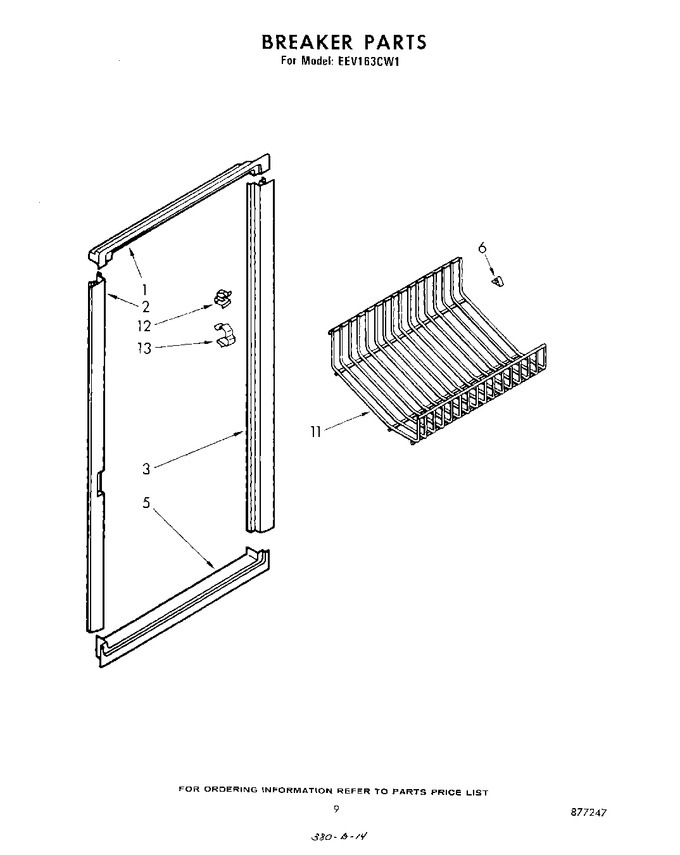

06 - Breaker
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 836178 | Breaker, Top |
|
- | |||||
| 2 | 981082 | Breaker, L.s. |
|
- | |||||
| 3 | 843333 | Breaker, R.s. |
|
- | |||||
| 5 | 836176 | Breaker, Bottom |
|
- | |||||
| 6 | 216446 | Grommet, Trivet (4) |
|
- | |||||
| 11 | 849641 | Trivet |
|
- | |||||
| 12 | 836090 | Clip (3) |
|
- | |||||
| 13 | 845807 | Clip (19) |
|
- |
