SELECT A DIAGRAM

02 - Cabinet


03 - Door , Lit/optional


04 - Unit

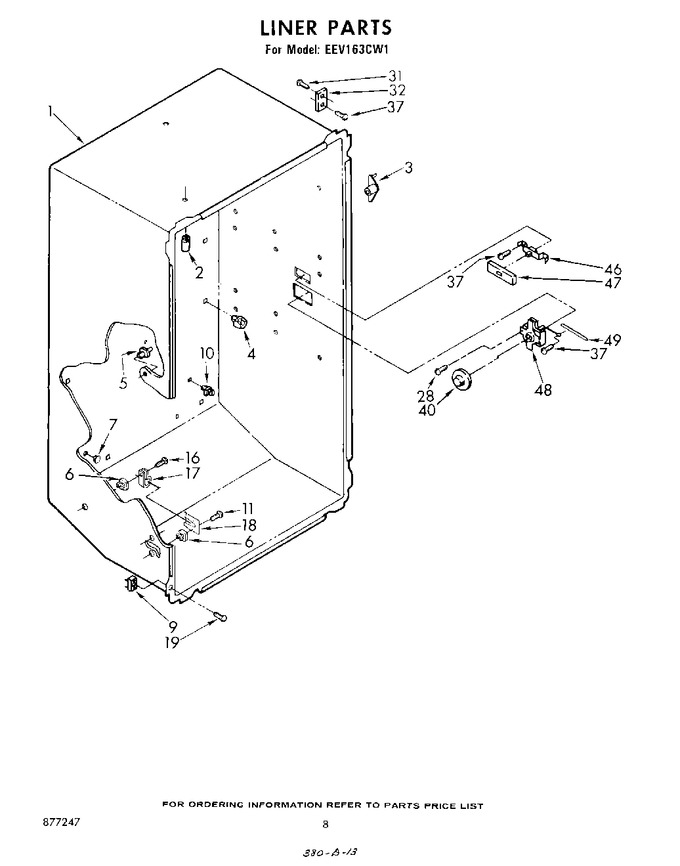

05 - Liner


06 - Breaker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	934634		Spacer, Evaporator (3)		Appelez-nous	-
3	836040		Spacer, Insulator		Appelez-nous	-
4	513002		Stud, Shelf (6)		Appelez-nous	-
5	517151		Stud, Shelf (6)		Appelez-nous	-
6	842339		Grommet		Appelez-nous	-
7	519890		Plug, Hole (2)		Appelez-nous	-
9	539760		Spacer, Insulator (8)		Appelez-nous	-
10	652581		Stud, Hook (2)		Appelez-nous	-
11	WP488729		Screw, 8 X 1/2   (Replaces: 488783)			Immediately	$ 7.01
16	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 7.01
17	488937		Clamp, Tube		Appelez-nous	-
18	839826		Cover, Tube		Appelez-nous	-
19	WP488163		Screw, 8 X 13/16   (Replaces: 488208)				$ 6.79
19	488286		Screw (repair)		Appelez-nous	-
28	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 12.62
31	488684		Screw, 8-32 X 1-1/2		Appelez-nous	-
32	547603		Strap, Ground		Appelez-nous	-
37	WP489128		Screw, 8-32 X .375   (Replaces: 488500)				$ 9.79
40	981934		Knob		Appelez-nous	-
46	845049		Bracket, Switch		Appelez-nous	-
47	984976		Escutcheon, Power Saver		Appelez-nous	-
48	VF3		Thermostat & Barrier Assembly   (Replaces: 851375)				$ 38.40
49	WP2196003		Tube, Barrier   (Replaces: 851376)				$ 7.16

    View Diagram in Separate Window       Print Part List
