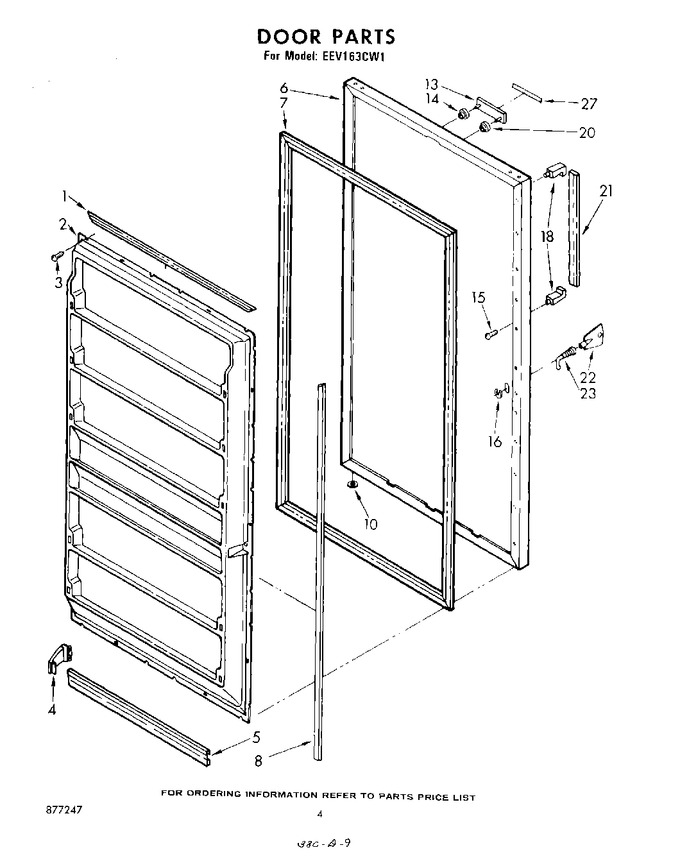

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	836115		Retainer, Gasket (2)		Appelez-nous	-
2	981953		Panel		Appelez-nous	-
3	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 12.62
3	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 7.07
4	981961		Retainer, Trim (8)		Appelez-nous	-
5	934551		Trim, Shelf		Appelez-nous	-
6	988548		Door, Exterior (white)		Appelez-nous	-
7	2188439A		Gasket, Magnetic   (Replaces: 981092)		Appelez-nous	-
8	836120		Retainer, Gasket (side) (2)		Appelez-nous	-
10	534927		Plug, Hole (2)		Appelez-nous	-
13	837577		Escutcheon		Appelez-nous	-
14	938889		Stud, Anchor		Appelez-nous	-
15	488818		Screw, .190dt X 3/4				$ 42.82
16	983465		Clip, Lock		Appelez-nous	-
18	845293		End, Handle		Appelez-nous	-
20	659676		Clip, Tubular		Appelez-nous	-
21	848377		Handle		Appelez-nous	-
22	WP842177		Key   (Replaces: 842177)				$ 7.29
23	983464		Lock		Appelez-nous	-
27	877247		List, Parts		Appelez-nous	-
27	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
27	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
27	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
27	WP279368		Cement, Insulation (1 Oz.)   (Replaces: 797403)			Immediately	$ 99.82
27	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
27	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
27	656493		Booklet, Freezing		Appelez-nous	-
27	988083		Guide, Use & Care		Appelez-nous	-
27	934945		Energy Guide		Appelez-nous	-
27	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
27	842211		Insert		Appelez-nous	-
27	350942		Primer, White (12 Oz. Spray Can)   (Replaces: 206922)				$ 80.69
27	206925		Leveler, Enamel (12 Oz. Spray Can)		Appelez-nous	-
27	285006		Lacquer, Black (12 Oz. Spray Can)   (Replaces: 350939)			Immediately	$ 51.34
27	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
27	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 98.33
27	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 54.25
27	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
27	799340		Lacquer, Black (1 Qt. Uncut)		Appelez-nous	-
27	261887		Lacquer, Coffee (1 Qt. Uncut)		Appelez-nous	-
27	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
27	799351		Blend, Thinner (1 Gal.)		Appelez-nous	-
27	261889		Lacquer, New Avocado (1 Qt. Uncut)		Appelez-nous	-
27	261891		Lacquer, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
27	978883		Lacquer, Almond (1 Qt. Uncut)		Appelez-nous	-
27	212643		Sealer, Gum			Immediately	$ 73.92
27	479502		Tape, Vinyl (1/4`` X 108``)				$ 66.77
27	876370		Kit, Insulation (5 Pcs. 3`` X 24`` X 48)   (Replaces: 479976)				$ 208.40
27	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
27	511881		Lacquer, Aluminum (12 Oz. Spray Can)				$ 278.35
27	WP542638		Grease, Silicone (2 Oz.)   (Replaces: 481634)			Immediately	$ 10.96
27	606755		Bag, Insulation (36-5/8`` X 46``)				$ 70.61
	261886		Xspray (13 Oz.)		Appelez-nous	-
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)			Immediately	$ 51.34
	261890		Xspray (13 Oz.)		Appelez-nous	-
	261888		Xspray (13 Oz.)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
	350956		Xspray (13 Oz.)				$ 46.30
