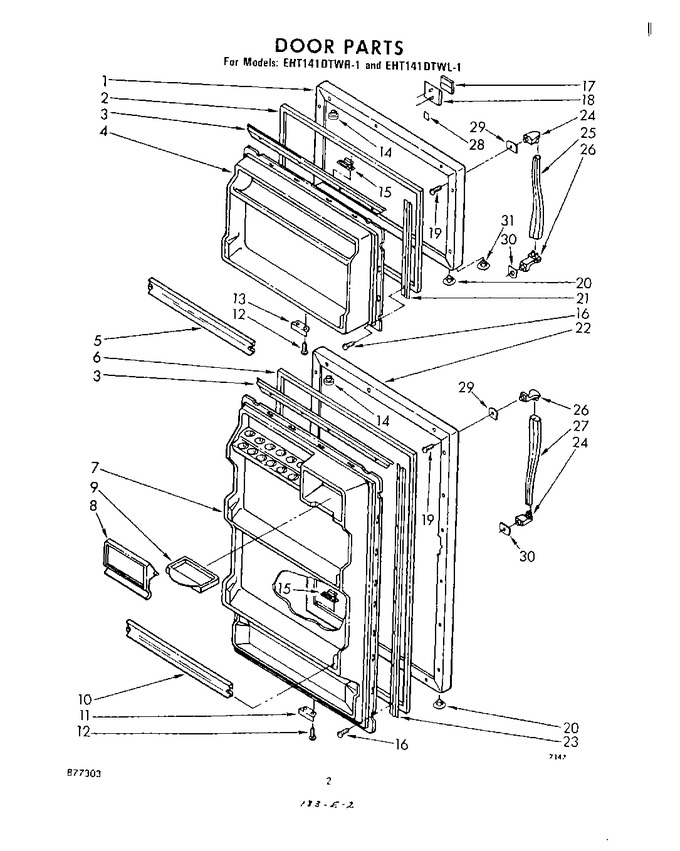

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	940052		Freezer Door Panel (r.h. Swing) (golden Harvest)		Appelez-nous	-
1	940042		Freezer Door Panel (r.h. Swing) (white)		Appelez-nous	-
1	940044		Freezer Door Panel (r.h. Swing) (coffee)		Appelez-nous	-
1	940045		Freezer Door Panel (r.h. Swing) (new Avocado)		Appelez-nous	-
1	940046		Freezer Door Panel (r.h. Swing) (golden Harvest)		Appelez-nous	-
1	940047		Freezer Door Panel (r.h. Swing) (almond (l.h. Swing))		Appelez-nous	-
1	940048		Freezer Door Panel (r.h. Swing) (white)		Appelez-nous	-
1	940050		Freezer Door Panel (r.h. Swing) (coffee)		Appelez-nous	-
1	940051		Freezer Door Panel (r.h. Swing) (new Avocado)		Appelez-nous	-
1	940053		Freezer Door Panel (r.h. Swing) (almond)		Appelez-nous	-
2	WP2188456A		Freezer Door Gasket   (Replaces: 939049)				$ 221.56
3	935759		Gasket Retainer, Top & Bottom (2)		Appelez-nous	-
4	935776		Interior Door Panel (freezer)		Appelez-nous	-
5	935777		Trim, Door Shelf		Appelez-nous	-
6	2188445A		Refrigerator Door Gasket   (Replaces: 939048)				$ 169.16
7	937145		Interior Door Panel (refrigerator)		Appelez-nous	-
8	937146		Butter Door		Appelez-nous	-
9	520747		Tray, Butter		Appelez-nous	-
10	939019		Trim, Door Shelf (2)		Appelez-nous	-
11	940217		Bracket, Door Stop		Appelez-nous	-
12	488930		Screw (repair)		Appelez-nous	-
12	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 6.98
13	940216		Bracket, Door Stop		Appelez-nous	-
14	509929		Cap, Hinge Sleeve (2)		Appelez-nous	-
15	940231		Tap Plate (2)		Appelez-nous	-
16	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 7.07
16	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 12.62
17	848386		Insert, Nameplate		Appelez-nous	-
18	849310		Escutcheon, Nameplate		Appelez-nous	-
19	488818		Screw (2)				$ 42.82
20	989879		Hole Plug (2) (golden Harvest)		Appelez-nous	-
20	534927		Hole Plug (2) (white)		Appelez-nous	-
20	989197		Hole Plug (2) (almond)		Appelez-nous	-
20	989878		Hole Plug (2) (coffee)		Appelez-nous	-
20	989880		Hole Plug (2) (new Avocado)		Appelez-nous	-
21	935775		Gasket Retainer, Side (2)		Appelez-nous	-
22	940064		Refrigerator Door Panel (r.h. Swing) (golden Harvest)		Appelez-nous	-
22	940065		Refrigerator Door Panel (r.h. Swing) (almond)		Appelez-nous	-
22	940062		Refrigerator Door Panel (r.h. Swing) (coffee)		Appelez-nous	-
22	940058		Refrigerator Door Panel (r.h. Swing) (golden Harvest)		Appelez-nous	-
22	940059		Refrigerator Door Panel (r.h. Swing) (almond (l.h. Swing))		Appelez-nous	-
22	940060		Refrigerator Door Panel (r.h. Swing) (white)		Appelez-nous	-
22	940063		Refrigerator Door Panel (r.h. Swing) (new Avocado)		Appelez-nous	-
22	940054		Refrigerator Door Panel (r.h. Swing) (white)		Appelez-nous	-
22	940056		Refrigerator Door Panel (r.h. Swing) (coffee)		Appelez-nous	-
22	940057		Refrigerator Door Panel (r.h. Swing) (new Avocado)		Appelez-nous	-
23	935760		Gasket Retainer, Side (2)		Appelez-nous	-
24	982948		Handle, End		Appelez-nous	-
25	982942		Handle, Center		Appelez-nous	-
26	982947		Handle, End		Appelez-nous	-
27	982978		Handle, Center		Appelez-nous	-
28	991257		Tape		Appelez-nous	-
29	941917		Shim, Handle End		Appelez-nous	-
30	941918		Shim, Handle End		Appelez-nous	-
31	877303		List, Parts		Appelez-nous	-
31	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 10.96
31	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 156.56
31	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 208.40
31	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 208.40
31	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
31	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
31	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
31	941750		Hole Plug		Appelez-nous	-
31	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
31	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
31	833938		Kit, Terminal Connector				$ 7.26
31	940753		Energy Guide		Appelez-nous	-
31	939129		Guide, Use & Care		Appelez-nous	-
31	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
31	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 98.33
31	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 54.25
31	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
31	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
31	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
31	799351		Blend, Thinner (1 Gal.)		Appelez-nous	-
31	261887		Enamel, Coffee (1 Qt. Uncut)		Appelez-nous	-
31	261889		Enamel, New Avocado (1 Qt. Uncut)		Appelez-nous	-
31	261891		Enamel, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
31	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
31	212643		Sealer, Gum (4 Feet)			Immediately	$ 73.92
31	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
31	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
31	606755		Bag, Insulation (36-5/8`` X 46``)				$ 70.61
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 46.30
	350942		Primer White (13 Oz. Spray Can)				$ 80.69
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)			Immediately	$ 51.34
	511881		Xlacquer, Aluminum (13 Oz. Spray Can)				$ 278.35
	261890		Xenamel, Golden Harvest (13 Oz. Spray Can)		Appelez-nous	-
	261888		Xenamel, New Avocado (13 Oz. Spray Can)		Appelez-nous	-
	261886		Xenamel, Coffee (13 Oz. Spray Can)		Appelez-nous	-
