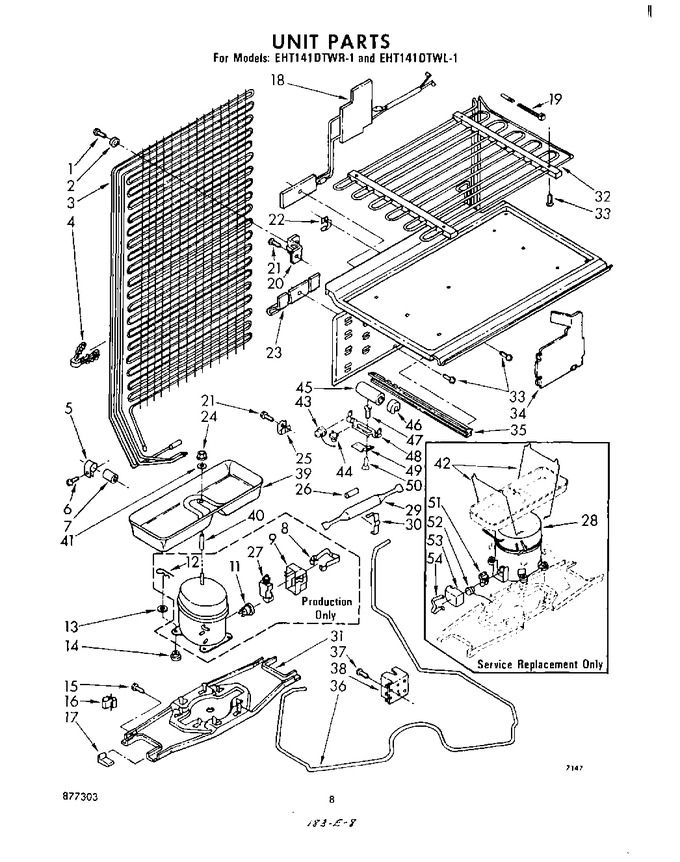

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	487888		Screw, 8 X 3/4 (2)		Appelez-nous	-
2	204349		Bumper (2)		Appelez-nous	-
3	938387		Condenser & Precooler Assembly		Appelez-nous	-
4	938232		Clip, Tube (2)		Appelez-nous	-
5	510716		Tube Clamp		Appelez-nous	-
6	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488197)				$ 19.04
7	510769		Dampener		Appelez-nous	-
8	938384		Strap		Appelez-nous	-
9	938383		Terminal Cover		Appelez-nous	-
11	938386		Overload		Appelez-nous	-
12	596712		Clip (4)		Appelez-nous	-
13	992950		Slotted Washer (4)		Appelez-nous	-
14	646499		Grommet (4)		Appelez-nous	-
15	489340		Screw, 5/16-18 X 5/8 (2)   (Replaces: 488683)		Appelez-nous	-
16	W10812038		Clip, Wire   (Replaces: 939054)		Appelez-nous	-
17	937000		Support Grommet (2)		Appelez-nous	-
18	937013		Defrost Heater		Appelez-nous	-
19	851095		Strap (2)		Appelez-nous	-
20	937066		Bracket, Condenser (2)		Appelez-nous	-
21	484480		Screw, 8 X 1/2		Appelez-nous	-
22	939079		Clip, Capillary Tube		Appelez-nous	-
23	937019		Clamp, Capillary Tube		Appelez-nous	-
24	WP487939		Hex Nut, 1/4-20   (Replaces: 489034)				$ 6.95
25	935788		Clip, Condenser Mounting (2)		Appelez-nous	-
26	510446		Restrictor Sleeve		Appelez-nous	-
27	938385		Relay		Appelez-nous	-
28	482055		Compressor (also Order 482727 Installation Kit & 876527 Mounting Kit)		Appelez-nous	-
29	W10843121		Drier   (Replaces: 978246)			Immediately	$ 47.31
30	547637		Clamp		Appelez-nous	-
31	935779		Unit, Frame		Appelez-nous	-
32	937035		Evaporator Assembly		Appelez-nous	-
33	486214		Screw 8-15 X 1/2		Appelez-nous	-
34	937059		Tube Cover		Appelez-nous	-
35	940116		Gasket, Evaporator Lower L.s.		Appelez-nous	-
35	940115		Gasket, Evaporator Lower R.s.		Appelez-nous	-
36	938393		Heat Exchanger		Appelez-nous	-
37	W11624204		Screw, 8-32 X 3/8   (Replaces: 486194)				$ 12.62
38	937068		Box, Junction		Appelez-nous	-
39	935781		Tray, Evaporator		Appelez-nous	-
40	941517		Spacer		Appelez-nous	-
41	487596		Washer		Appelez-nous	-
42	482726		Retainer, Drain Pan (2) (service Replacement Only)		Appelez-nous	-
43	482280		Overload (used In Start Kit 482278)		Appelez-nous	-
44	482279		Relay (used In Start Kit 482278)		Appelez-nous	-
45	WP482156		Capacitor (used In Start Kit 482278)   (Replaces: 482156)				$ 97.14
46	482157		Cap, Capacitor (used In Start Kit 482278)		Appelez-nous	-
47	487631		Screw (2) (used In Start Kit 482278)		Appelez-nous	-
48	482158		Bracket, Capacitor (used In Start Kit 482278)		Appelez-nous	-
49	549939		Bracket, Support (used In Start Kit 482278)		Appelez-nous	-
50	488487		Screw (used In Start Kit 482278)		Appelez-nous	-
51	989647		Relay (alternate)		Appelez-nous	-
51	989646		Relay		Appelez-nous	-
52	937214		Overload		Appelez-nous	-
53	549336		Terminal Cover		Appelez-nous	-
54	482278		Start Kit		Appelez-nous	-
54	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 19.48
54	978028		Valve, Access (1/2)		Appelez-nous	-
54	978029		Valve Access (5/8``)				$ 93.85
54	978030		Valve, Access (3/4``)				$ 117.64
54	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 94.73
54	549342		Strap		Appelez-nous	-
54	978026		Valve, Access (5/16``)			Immediately	$ 115.28
