| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

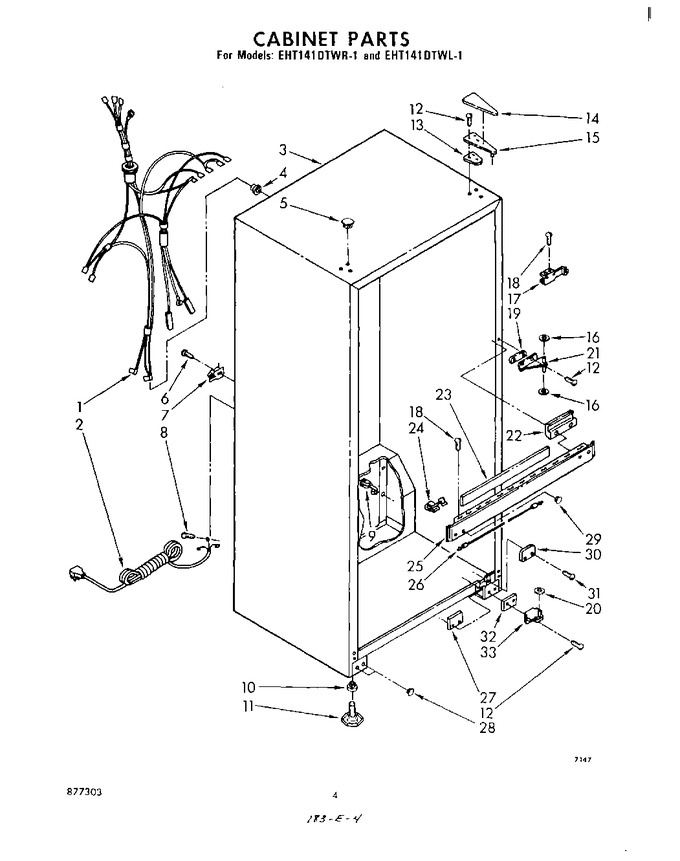

| 1 | 937011 | Cabinet, Wiring Assembly |
|
- | |||||
| 2 | 850626 | Cord, Service |
|
- | |||||
| 3 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 4 | 938284 | Grommet, Wiring |
|
- | |||||
| 5 | 989195 | Hole Plug (3) (almond) |
|
- | |||||
| 5 | 989875 | Hole Plug (3) (coffee) |
|
- | |||||
| 5 | 989876 | Hole Plug (3) (golden Harvest) |
|
- | |||||
| 5 | 989877 | Hole Plug (3) (new Avocado) |
|
- | |||||
| 5 | 842031 | Hole Plug (3) (white) |
|
- | |||||
| 6 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 12.62 | |||||
| 7 | 939009 | Clamp |
|
- | |||||
| 8 | 488474 | Screw, 8-32 X 3/8 |
|
- | |||||
| 9 | 544108 | Bushing, Strain Relief |
|
- | |||||
| 10 | 940113 | Grommet (4) |
|
- | |||||
| 11 | W11117769 | Leveler (4) (Replaces: 939005) |
|
Immediately | $ 16.61 | ||||
| 12 | 488949 | Screw (repair) |
|
- | |||||
| 12 | WP999367 | Screw, 10-32 X 3/4 (Replaces: 488948) |
|
$ 7.07 | |||||
| 13 | 836192 | Shim, Top Hinge |
|
- | |||||
| 14 | 989897 | Hinge Cover (new Avocado) |
|
- | |||||
| 14 | 989896 | Hinge Cover (golden Harvest) |
|
- | |||||
| 14 | 989895 | Hinge, Cover (coffee) |
|
- | |||||
| 14 | 989194 | Hinge Cover (almond) |
|
- | |||||
| 14 | 842010 | Hinge Cover (white) |
|
- | |||||
| 15 | 842039 | Hinge & Shim (top) |
|
- | |||||
| 16 | WP487802 | Washer (7/64 Nylon) (Replaces: 487802) |
|
Immediately | $ 7.12 | ||||
| 17 | 935692 | Bracket, Center Rail |
|
- | |||||
| 18 | WP488729 | Screw, 8 X 1/2 (Replaces: 487900) |
|
Immediately | $ 7.01 | ||||
| 19 | 836155 | Shim, Center Hinge |
|
- | |||||
| 20 | WP487576 | Washer, 1/16 (Replaces: 487576) |
|
Immediately | $ 8.89 | ||||
| 21 | 836153 | Hinge, Center |
|
- | |||||
| 22 | 939034 | Center, Rail Shim (2) |
|
- | |||||
| 23 | 940092 | Seal Strip, Center Rail |
|
- | |||||
| 24 | 534365 | Clip, Mullion Heater (3) |
|
$ 13.35 | |||||
| 25 | 935686 | Center Rail (coffee) |
|
- | |||||
| 25 | 935687 | Center Rail (golden Harvest) |
|
- | |||||
| 25 | 935688 | Center Rail (new Avocado) |
|
- | |||||
| 25 | 935689 | Center Rail (almond) |
|
- | |||||
| 25 | 935685 | Center Rail (white) |
|
- | |||||
| 26 | 935691 | Heater, Mullion |
|
- | |||||
| 27 | 935743 | Tap Plate |
|
- | |||||
| 28 | 940081 | Plug Button (2) (coffee) |
|
- | |||||
| 28 | 940083 | Plug Button (2) (new Avocado) |
|
- | |||||
| 28 | 940080 | Plug Button (2) (almond) |
|
- | |||||
| 28 | 656945 | Plug Button (2) (white) |
|
- | |||||
| 28 | 940082 | Plug Button (2) (golden Harvest) |
|
- | |||||
| 29 | 940087 | Hole Plug (2) (almond) |
|
- | |||||
| 29 | 940090 | Hole Plug (2) (new Avocado) |
|
- | |||||
| 29 | 940089 | Hole Plug (2) (golden Harvest) |
|
- | |||||
| 29 | 940086 | Hole Plug (2) (white) |
|
- | |||||
| 29 | 940088 | Hole Plug (2) (coffee) |
|
- | |||||
| 30 | 935709 | Rail Cover, Tube Entry (golden Harvest) |
|
- | |||||
| 30 | 935710 | Rail Cover, Tube Entry (new Avocado) |
|
- | |||||
| 30 | 935711 | Rail Cover, Tube Entry (almond) |
|
- | |||||
| 30 | 935708 | Rail Cover, Tube Entry (coffee) |
|
- | |||||
| 30 | 935707 | Rail Cover, Tube Entry (white) |
|
- | |||||
| 31 | 488895 | Screw |
|
- | |||||
| 32 | 935737 | Shim, Bottom Hinge |
|
- | |||||
| 33 | 943670 | Hinge, Bottom L.h. |
|
- | |||||
| 33 | 943668 | Butt,\ Hinge\ (bottom) ((r.h. Models)) |
|
- |
