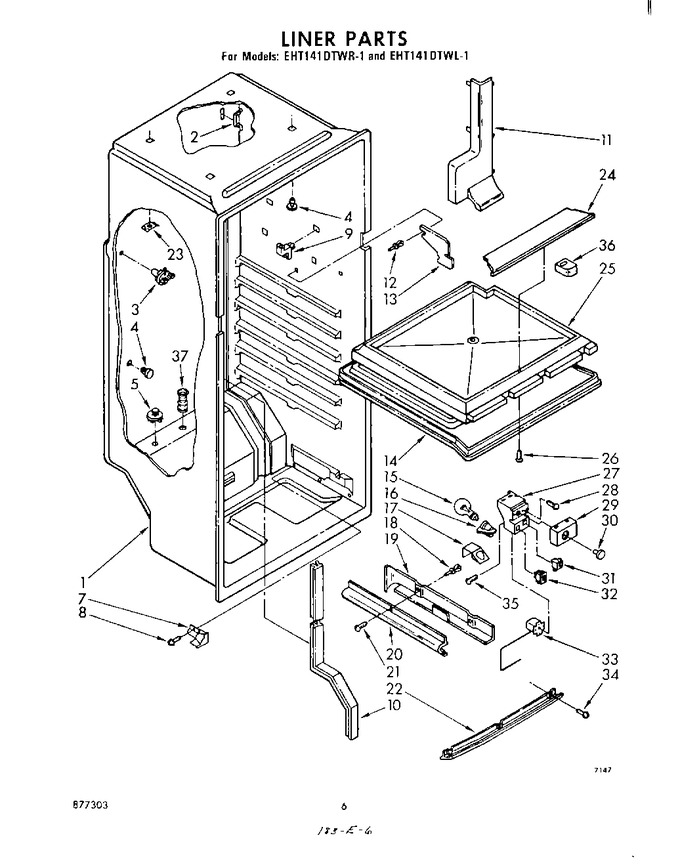

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 533998 | Speed Clip (3) |
|
- | |||||
| 3 | 939989 | Screw Anchor (4) |
|
- | |||||
| 4 | 845717 | Screw Anchor (repair) |
|
- | |||||
| 5 | 934607 | Drain, Ferrule Cap |
|
- | |||||
| 7 | 941776 | Tube Entry Cover (bottom) |
|
- | |||||
| 8 | W11693756 | Screw, 8-15 X 5/8 (Replaces: 487042) |
|
Immediately | $ 12.65 | ||||
| 9 | 939203 | Support Stud (4) |
|
- | |||||
| 10 | 937032 | Tube Entry Cover (rear) |
|
- | |||||
| 11 | 937021 | Tube Cover |
|
- | |||||
| 12 | 939962 | Rivet, Plastic (2) |
|
$ 10.65 | |||||
| 13 | 937228 | Electric Shield |
|
- | |||||
| 14 | 937014 | Bottom, Compartment Separator |
|
- | |||||
| 15 | 8009 | Light Bulb (Replaces: 527949) |
|
Immediately | $ 16.80 | ||||
| 16 | 4387478 | Socket (Replaces: 851067) |
|
Immediately | $ 99.14 | ||||
| 17 | 937230 | Light Shield |
|
- | |||||
| 18 | 939961 | Rivet, Plastic (2) |
|
- | |||||
| 19 | 939957 | Wire Cover (rear) |
|
- | |||||
| 20 | 939960 | Wire Cover (front) |
|
- | |||||
| 21 | 486214 | Screw 8-15 X 1/2 |
|
- | |||||
| 22 | 937022 | Drain Trough |
|
- | |||||
| 23 | WP939101 | Screw Anchor (4) (Replaces: 939101) |
|
$ 6.75 | |||||
| 24 | 937016 | Breaker, Mullion (top) |
|
- | |||||
| 25 | 937015 | Insulation, Compartment Separator |
|
- | |||||
| 26 | WP488163 | Screw, 8 X 13/16 (2) (Replaces: 488208) |
|
$ 6.79 | |||||
| 27 | 939089 | Control Box |
|
- | |||||
| 28 | WP489128 | Screw, 8-32 X 3/8 (Replaces: 488500) |
|
$ 9.79 | |||||
| 29 | 937028 | Cover, Control Box |
|
- | |||||
| 30 | 845233 | Control Knob |
|
- | |||||
| 31 | W11384469 | Switch, Rocker (Replaces: 549702) |
|
Immediately | $ 33.51 | ||||
| 32 | 936115 | Switch, Power Miser |
|
- | |||||
| 33 | 941549 | Thermostat |
|
- | |||||
| 34 | WP488729 | Screw, 8 X 1/2 (Replaces: 488320) |
|
Immediately | $ 7.01 | ||||
| 35 | WP489069 | Screw, 8 X 1/2 (3) (Replaces: 488874) |
|
Immediately | $ 7.07 | ||||
| 36 | 940070 | Insulation, Crossover Tube |
|
- | |||||
| 37 | 842256 | Fitting, Drain |
|
- |
