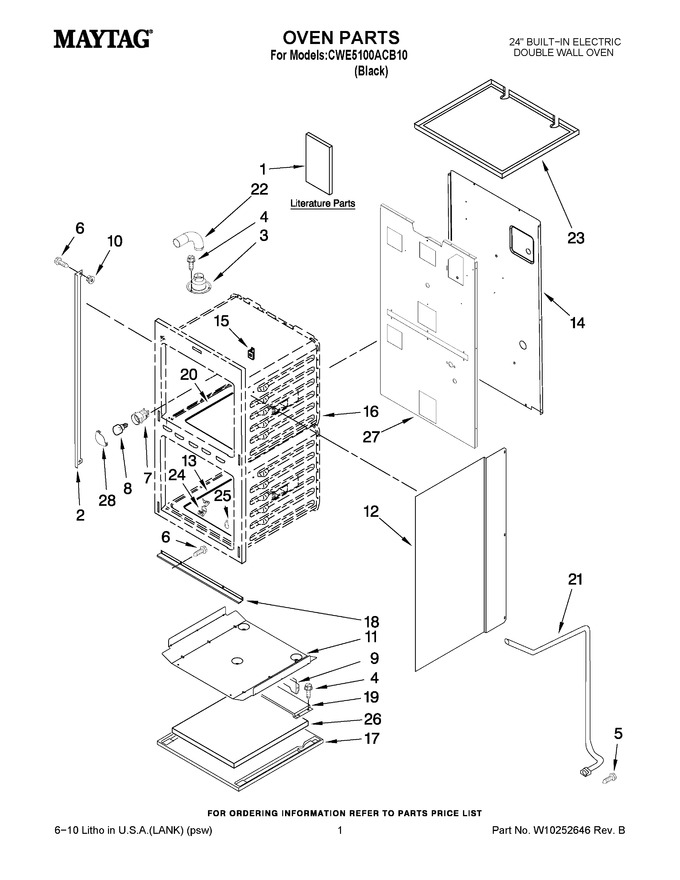

01 - Oven Parts
02 - Lower Door Parts
03 - Upper Door Parts
04 - Internal Oven Parts
05 - Control Panel Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10203506 | Installation Instructions |
|
- | |||||
| 1 | W10224167 | Use & Care Guide |
|
- | |||||
| 1 | 9762761 | Brochure, Tips Safe Cooking |
|
- | |||||
| 1 | W10211157 | Diagram, Wiring |
|
- | |||||
| 2 | 7750P116-60 | Extrusion, Side (left) |
|
- | |||||
| 2 | 7750P115-60 | Extrusion, Side (right) |
|
- | |||||
| 3 | 7506P403-60 | Tube, Oven |
|
- | |||||
| 4 | WP7101P126-60 | Screw (Replaces: 7101P356-60) |
|
Immediately | $ 6.85 | ||||
| 5 | 7101P287-60 | Screw (grounding) |
|
$ 12.03 | |||||
| 6 | WP98008545 | Screw (Replaces: 7101P633-60) |
|
$ 15.94 | |||||
| 7 | 7408P035-60 | Receptacle, Oven Light (2) |
|
$ 30.71 | |||||
| 8 | 8009 | Bulb, Light (Replaces: W10132113) |
|
Immediately | $ 16.80 | ||||
| 9 | 3807F135-80 | Support |
|
- | |||||
| 10 | 7103P051-60 | Nut, Snap (black) |
|
- | |||||
| 10 | WP7103P114-60 | Nut, Snap (white) (Replaces: 7103P039-60) |
|
$ 9.89 | |||||
| 11 | 3804F104-51 | Retainer, Insulation Bottom |
|
- | |||||
| 12 | 2618F153-51 | Panel, Side (right) |
|
- | |||||
| 12 | 2618F154-51 | Panel, Side (left) |
|
- | |||||
| 13 | 2205F004-19 | Bottom Lower Bottom |
|
- | |||||
| 14 | 4002F143-51 | Back, Main |
|
- | |||||
| 15 | 7112P020-60 | Clip, Oven Front |
|
- | |||||
| 16 | N/P | Liner, Oven (not Serviceable) |
|
- | |||||
| 17 | 4003F049-80 | Base, Chassis |
|
- | |||||
| 18 | 7754P003-60 | Extrusion, Bottom |
|
- | |||||
| 19 | 3601F005-61 | Baffle, Base |
|
- | |||||
| 20 | 2205F003-19 | Bottom, Oven |
|
- | |||||
| 21 | 8026P014-60 | Tube, Oven Vent |
|
- | |||||
| 22 | 8026P070-60 | Tube, Vent |
|
- | |||||
| 23 | 3804F054-51 | Retainer, Insul. |
|
- | |||||
| 24 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) |
|
Immediately | $ 11.07 | ||||
| 25 | 4005F011-35 | Cover, Cap Hole |
|
- | |||||
| 26 | 7002P006-60 | Insul., Bottom |
|
- | |||||
| 27 | 3804F286-51 | Retainer, Rear |
|
- | |||||
| 28 | 3604F037-44 | Shield, Oven Lamp |
|
$ 30.78 | |||||
| NI | 7002P171-60 | Insulation, Wrap |
|
- | |||||
| NI | 7002P160-60 | Insulation, Back |
|
- |
