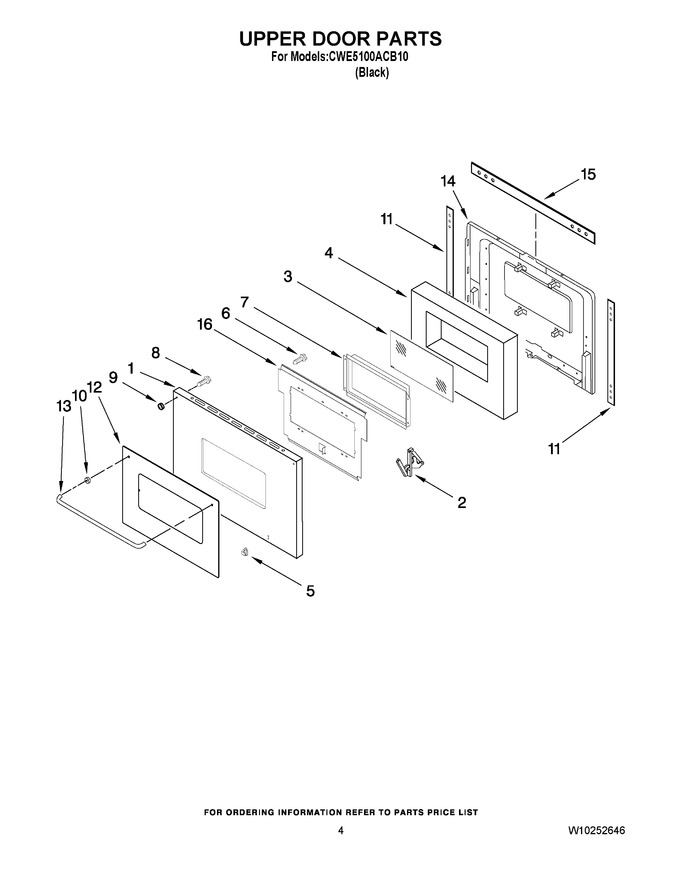

03 - Upper Door Parts
04 - Internal Oven Parts
05 - Control Panel Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2401F199-70 | Panel, Door |
|
- | |||||
| 2 | 74004059 | Hinge, Door (Replaces: 7106P088-60) |
|
$ 153.66 | |||||
| 3 | 7902P715-60 | Glass, Inner |
|
$ 56.81 | |||||
| 4 | 7002P015-60 | Insulation, Door |
|
- | |||||
| 5 | 7112P093-60 | Retainer, Glass Clip |
|
$ 12.67 | |||||
| 6 | WP7101P126-60 | Screw (Replaces: 7101P356-60) |
|
Immediately | $ 6.85 | ||||
| 7 | 3603F013-80 | Frame, Window |
|
- | |||||
| 8 | WP4159193 | Screw (Replaces: 7101P282-60) |
|
$ 4.29 | |||||
| 9 | 74003986 | Spacer, Nylon (Replaces: 8010P124-60) |
|
$ 13.08 | |||||
| 10 | 8010P127-60 | Spacer, Handle (2) |
|
- | |||||
| 11 | 7212P003-60 | Seal, Upper Door |
|
$ 46.94 | |||||
| 12 | 7902P357-60 | Assembly, Door Glass |
|
$ 99.18 | |||||
| 13 | 7701P136-60 | Door Handle |
|
- | |||||
| 14 | 2402W205-19 | Lining, Oven Door |
|
- | |||||
| 15 | WP7212P006-60 | Seal, Door (horizontal) (Replaces: 7212P006-60) |
|
$ 105.81 | |||||
| 16 | 3601F102-51 | Baffle, Oven Door |
|
- |
