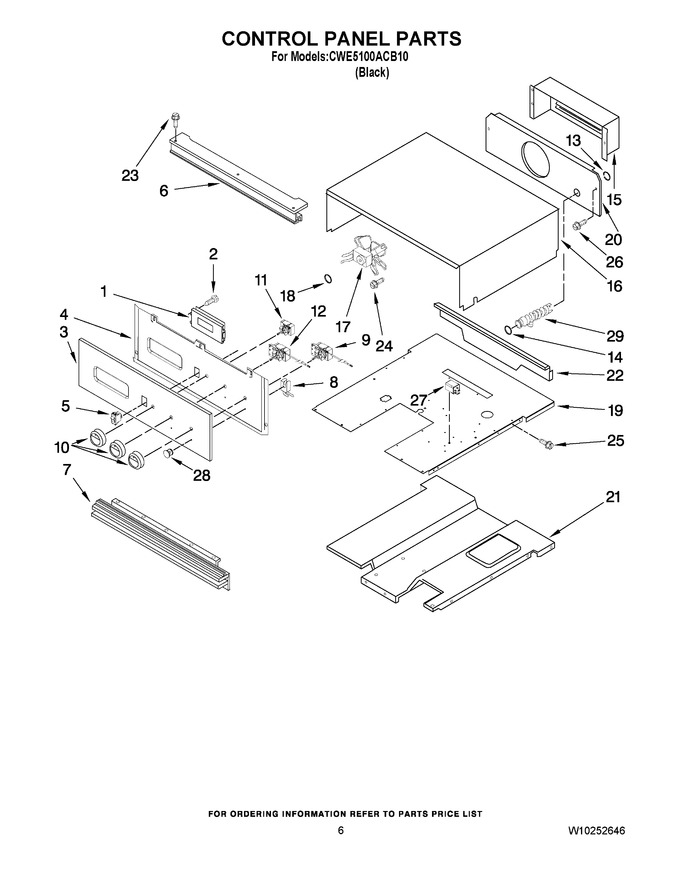

05 - Control Panel Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10799767		Clock   (Replaces: 7602P164-60)				$ 493.35
2	WP59002061		Screw   (Replaces: 7101P077-60)				$ 6.98
3	W10198732		Panel, Control		Appelez-nous	-
4	3605F194-80		Plate, Backing		Appelez-nous	-
5	7403P067-60		Switch, Rocker   (Replaces: 7403P841-60)				$ 91.35
6	7756P104-60		Extrusion, Top Frt		Appelez-nous	-
7	7756P071-60		Extrusion, Vent		Appelez-nous	-
8	W10852510		Light, Indicator   (Replaces: 7407P102-60)				$ 106.11
9	7404P042-60		Thermostat, Lower		Appelez-nous	-
10	7735P049-60		Knob, Themostat		Appelez-nous	-
11	7403P172-60		Switch, Selector		Appelez-nous	-
12	7404P049-60		Thermostat, Oven				$ 113.60
13	8008P055-60		Grommet		Appelez-nous	-
14	7417P017-60		Connector, Cable				$ 9.81
15	4005F262-51		Cover, Fan		Appelez-nous	-
16	W10214294		Cover, Wire		Appelez-nous	-
17	7427P006-60		Assembly, Fan		Appelez-nous	-
18	8008P004-60		Grommet		Appelez-nous	-
19	W10214296		Cover, Box		Appelez-nous	-
20	3605F164-51		Plate, Conduit		Appelez-nous	-
21	3804F118-51		Retainer, Top		Appelez-nous	-
22	3604F101-80		Shield, Air		Appelez-nous	-
23	WP98008545		Screw   (Replaces: 7101P633-60)				$ 15.94
24	W11347848		Screw   (Replaces: 7101P376-60)				$ 12.20
25	WP7101P126-60		Screw   (Replaces: 7101P356-60)			Immediately	$ 6.85
26	7101P287-60		Screw				$ 12.03
27	7428P088-60		Relay, Auxillary		Appelez-nous	-
28	W11690131		Lens, Indicator   (Replaces: 7730P012-60)				$ 6.73
29	5700P356-60		Conduit, Flexible		Appelez-nous	-
NI	8010P050-60		Felt, Disc		Appelez-nous	-
