01 - Oven Parts

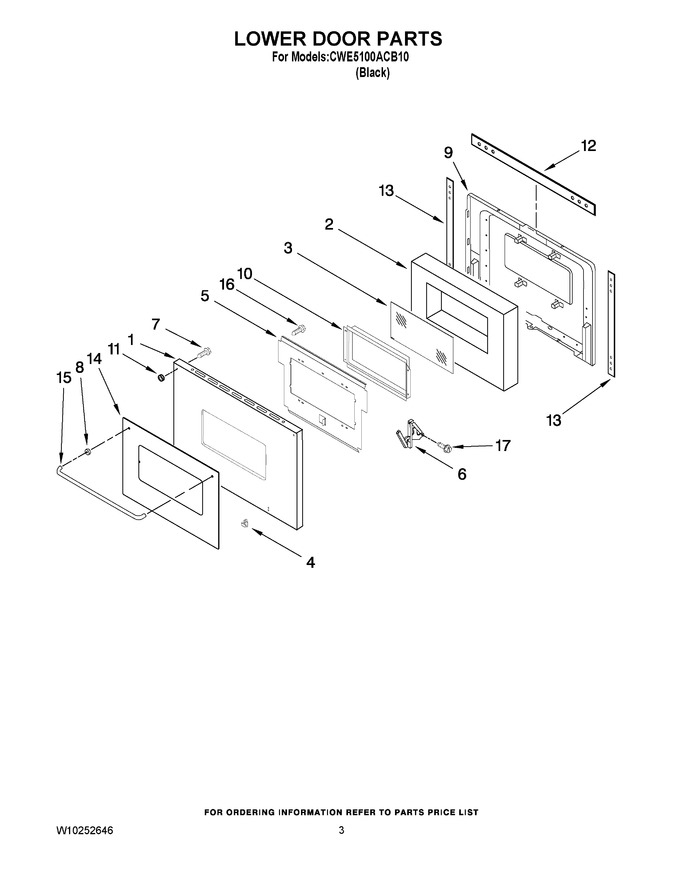

02 - Lower Door Parts
03 - Upper Door Parts
04 - Internal Oven Parts
05 - Control Panel Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2401F161-70 | Panel-door |
|
- | |||||
| 2 | 7002P019-60 | Insulation, Door |
|
- | |||||
| 3 | 7902P715-60 | Glass, Inner |
|
$ 56.81 | |||||
| 4 | 7112P093-60 | Retainer, Glass Clip |
|
$ 12.67 | |||||
| 5 | 3601F103-51 | Baffle, Door |
|
- | |||||
| 6 | 74001856 | Hinge, Door (Replaces: 7106P059-60) |
|
$ 123.16 | |||||
| 7 | WP4159193 | Screw (4) (Replaces: 7101P282-60) |
|
$ 4.29 | |||||
| 8 | 8010P127-60 | Spacer, Handle (2) |
|
- | |||||
| 9 | 2402W231-19 | Lining, Oven Door |
|
- | |||||
| 10 | 3603F013-80 | Frame, Window |
|
- | |||||
| 11 | 74003986 | Spacer, Nylon (Replaces: 8010P124-60) |
|
$ 13.08 | |||||
| 12 | WP7212P006-60 | Seal, Door (horizontal) (Replaces: 7212P006-60) |
|
$ 105.81 | |||||
| 13 | 7212P007-60 | Seal, Door (vertical) |
|
$ 47.10 | |||||
| 14 | 7902P424-60 | Assy., Door Glass |
|
- | |||||
| 15 | 7701P136-60 | Door Handle |
|
- | |||||
| 16 | WP7101P126-60 | Screw (Replaces: 7101P356-60) |
|
Immediately | $ 6.85 | ||||
| 17 | 7101P326-60 | Screw, Handle |
|
- |
