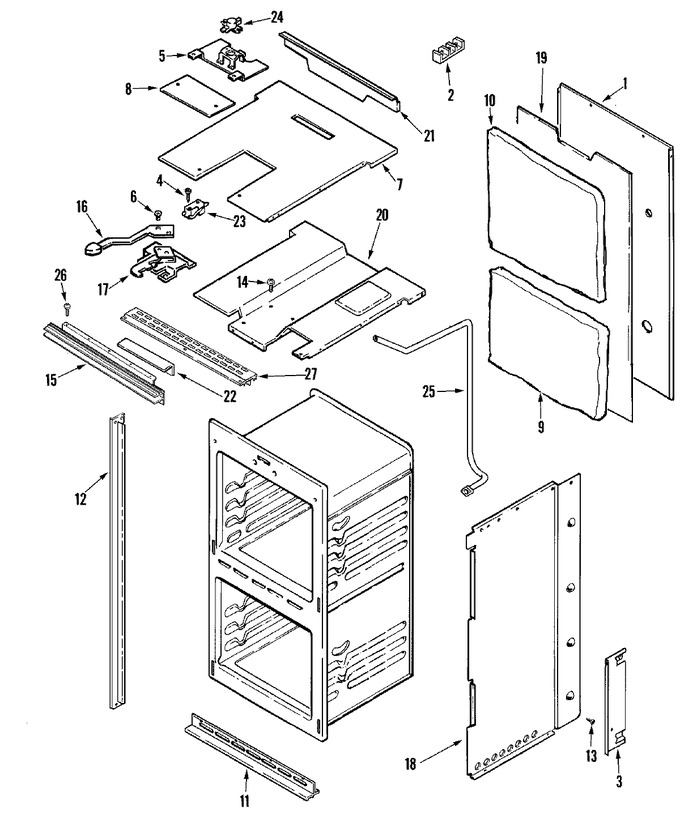

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F143-51 | Back, Main | 10 |
|
- | ||||
| 1 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 10 |
|
Immediately | $ 6.85 | |||
| 2 | WPW10245259 | Block, Terminal (Replaces: 7401P039-60) | 10 |
|
Immediately | $ 31.65 | |||
| 3 | 3601F244-51 | Baffle, Side | 10 |
|
- | ||||
| 4 | 7101P330-60 | Screw, Switch | 10 |
|
- | ||||
| 4 | 7101P287-60 | Screw, Metal Grounding | 10 |
|
$ 12.03 | ||||
| 5 | 3801F128-45 | Bracket, Hi Limit | 10 |
|
- | ||||
| 6 | WP4159193 | Screw (Replaces: 7101P115-60) | 10 |
|
$ 4.29 | ||||
| 7 | 74009403 | Cover, Box | 10 |
|
- | ||||
| 8 | 4005F160-45 | Cover, Lock | 10 |
|
- | ||||
| 9 | 7002P163-60 | Insulation (bottom) | 10 |
|
- | ||||
| 10 | 7002P157-60 | Insulation, Wrapper | 10 |
|
- | ||||
| 10 | 7002P154-60 | Insulation (back) | 10 |
|
- | ||||
| 11 | 74001846 | Extrusion, Bottom (blk) | 10 |
|
- | ||||
| 12 | 74001561 | Trim, Side (rt-blk) | 10 |
|
- | ||||
| 12 | 74001562 | Trim, Side (lt-blk) | 10 |
|
- | ||||
| 13 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 10 |
|
Immediately | $ 6.85 | |||
| 14 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 10 |
|
Immediately | $ 6.85 | |||
| 15 | 7756P070-60 | Extrusion, Vent (blk) | 10 |
|
- | ||||
| 16 | 74003005 | Lever, Latch (blk) | 10 |
|
- | ||||
| 17 | 8002P072-60 | Latch, Door (Replaces: 74006343) | 10 |
|
$ 306.52 | ||||
| 18 | 2618F116-51 | Panel, Side (lt) | 10 |
|
- | ||||
| 18 | 2618F115-51 | Panel, Side (rt) | 10 |
|
- | ||||
| 19 | 3804F105-51 | Retainer, Rear | 10 |
|
- | ||||
| 20 | 3804F118-51 | Retainer, Top | 10 |
|
- | ||||
| 21 | 3604F101-80 | Shield, Air | 10 |
|
- | ||||
| 22 | 3604F048-80 | Shield, Terminal | 10 |
|
- | ||||
| 23 | 74009591 | Switch, Door Latch | 10 |
|
$ 102.26 | ||||
| 24 | 7403P063-60 | Switch, High Limit | 10 |
|
$ 156.41 | ||||
| 25 | 790271 | Tube, Oven Vent | 10 |
|
- | ||||
| 26 | WP98008545 | Screw (blk) (Replaces: 74009537) | 10 |
|
$ 15.94 | ||||
| 27 | 7752P011-60 | Extrusion, Top (blk) | 10 |
|
- |
