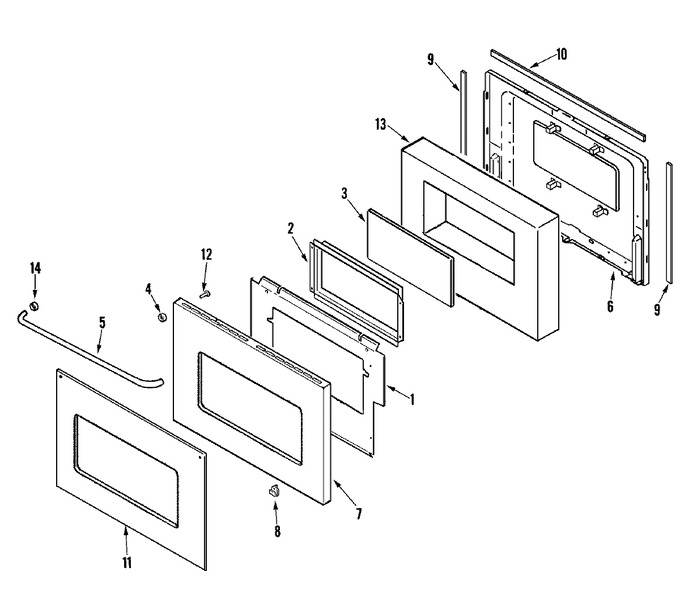

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP7101P126-60		Screw   (Replaces: 7101P356-60)	10		Immediately	$ 6.85
1	3601F103-51		Baffle, Door	10	Appelez-nous	-
2	550785		Frame - Window	10	Appelez-nous	-
3	74009406		Glass, Inner Door	10			$ 54.10
4	8010P127-60		Spacer, Door Handle (blk)   (Replaces: 74003987)	10	Appelez-nous	-
5	WP7701P495-60		Handle, Door (stl)   (Replaces: 74010606)	10			$ 169.48
6	74001905		Lining, Door	10	Appelez-nous	-
7	7101P272-60		Screw, Service Drawer	10	Appelez-nous	-
7	2401F103-70		Panel, Door (blk)	10	Appelez-nous	-
8	WP98008545		Screw (blk)   (Replaces: 74009537)	10			$ 15.94
8	74010609		Clip, Glass	10	Appelez-nous	-
9	7212P007-60		Seal, Door (vertical)	10			$ 47.10
10	WP7212P006-60		Seal, Door (horizontal)   (Replaces: 7212P006-60)	10			$ 105.81
11	74010628		Door, Panel/glass Assy (stl)	10	Appelez-nous	-
12	7101P326-60		Screw	10	Appelez-nous	-
13	7002P019-60		Insulation, Door Lower	10	Appelez-nous	-
14	8010P127-60		Spacer, Door Handle (blk)   (Replaces: 74003987)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
