SELECT A DIAGRAM
New Model Search:

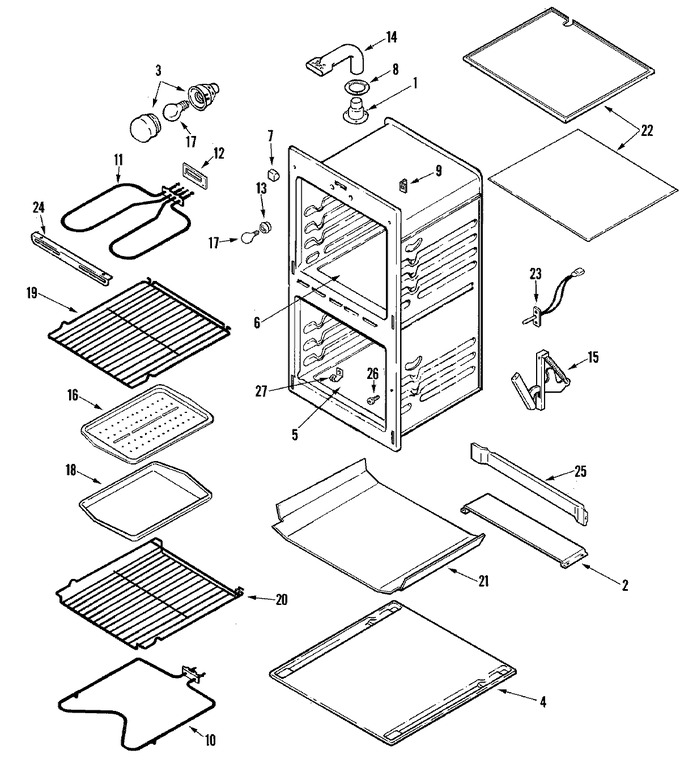

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71001395 | Screw | 10 |
|
- | ||||
| 1 | 7505P226-60 | Catalyst, Burner | 10 |
|
- | ||||
| 2 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 10 |
|
Immediately | $ 6.85 | |||
| 2 | 3601F005-80 | Baffle, Base | 10 |
|
- | ||||
| 3 | WP7101P485-60 | Screw, Base (Replaces: 7101P084-60) | 10 |
|
$ 26.33 | ||||
| 3 | WP74011278 | Oven Light Assy. (Replaces: 71002427) | 10 |
|
$ 101.56 | ||||
| 4 | W11684512 | Screw (10abx1.0-zn) (Replaces: 7101P060-60) | 10 |
|
$ 12.69 | ||||
| 4 | 74001845 | Base, Oven | 10 |
|
- | ||||
| 5 | 2205F004-19 | Bottom, Oven (lower) | 10 |
|
- | ||||
| 6 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 10 |
|
Immediately | $ 6.85 | |||
| 6 | 2205F003-19 | Bottom, Oven | 10 |
|
- | ||||
| 7 | 8003P009-60 | Bumper, Door (square) | 10 |
|
- | ||||
| 8 | 7201P016-60 | Gasket | 10 |
|
- | ||||
| 9 | 7112P020-60 | Clip, Oven Front | 10 |
|
- | ||||
| 9 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 10 |
|
Immediately | $ 6.85 | |||
| 10 | WPY04000066 | Element, Bake (2400w) (Replaces: 74004073) | 10 |
|
Immediately | $ 70.53 | |||
| 11 | 7101P065-60 | Screw | 10 |
|
- | ||||
| 11 | WP7406P203-60 | Element, Broil (Replaces: 74001234) | 10 |
|
$ 154.52 | ||||
| 12 | 7201P003-60 | Gasket, Element | 10 |
|
- | ||||
| 13 | 7408P035-60 | Receptacle, Oven Bulb | 10 |
|
$ 30.71 | ||||
| 14 | 74003107 | Tube, Vent | 10 |
|
- | ||||
| 15 | 74001856 | Hinge Assy. | 10 |
|
$ 123.16 | ||||
| 15 | 74001984 | Hinge, Door | 10 |
|
$ 126.36 | ||||
| 16 | Y3413F01619 | Insert, Broil Pan | 10 |
|
- | ||||
| 16 | W10124350 | Not Required Part Or See Note No Longer Supplied With Unit | 11 |
|
- | ||||
| 17 | 8009 | Bulb-oven (Replaces: 7407P103-60) | 10 |
|
Immediately | $ 16.80 | |||
| 18 | W10124350 | Not Required Part Or See Note No Longer Supplied With Unit | 11 |
|
- | ||||
| 18 | Y3401F02019 | Pan, Broil | 10 |
|
- | ||||
| 19 | 7801P005-60 | Rack | 10 |
|
- | ||||
| 20 | 7801P007-60 | Rack, Offset | 10 |
|
- | ||||
| 21 | 3804F104-51 | Retainer, Bottom Insulation | 10 |
|
- | ||||
| 22 | 7002P163-60 | Insulation (bottom) | 10 |
|
- | ||||
| 22 | 3804F054-51 | Retainer, Insulation | 10 |
|
- | ||||
| 23 | WP7430P044-60 | Sensor, Oven (Replaces: 74010385) | 10 |
|
Immediately | $ 158.35 | |||
| 24 | 3807F176-19 | Support, Broil Element | 10 |
|
- | ||||
| 25 | 3807F135-80 | Support | 10 |
|
- | ||||
| 26 | WP4159193 | Screw (Replaces: 7101P115-60) | 10 |
|
$ 4.29 | ||||
| 27 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 10 |
|
Immediately | $ 11.07 | |||
| 27 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 10 |
|
Immediately | $ 6.85 |
