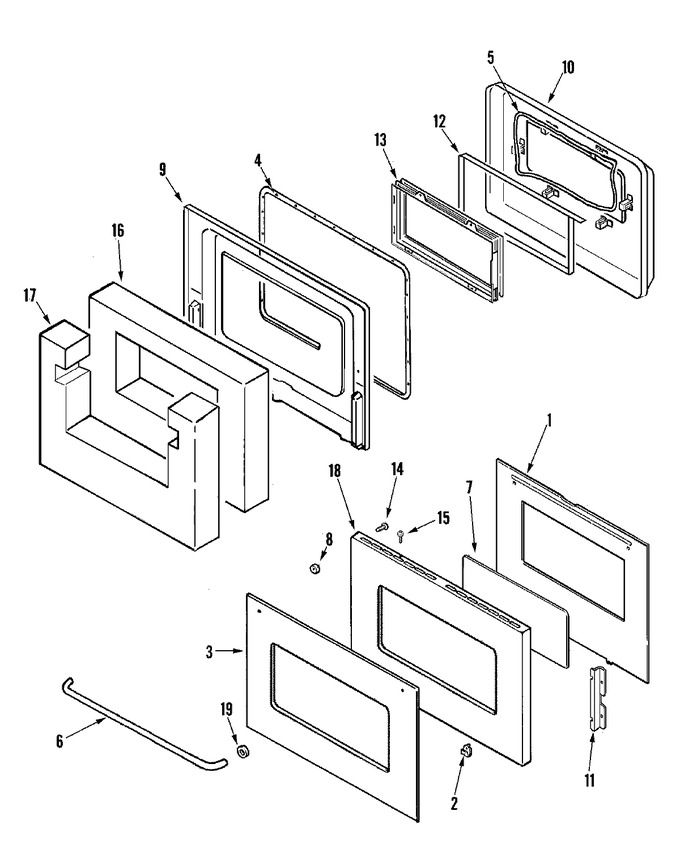

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3601W131-51		Baffle, Door Assembly	10	Appelez-nous	-
1	WP7101P126-60		Screw   (Replaces: 7101P356-60)	10		Immediately	$ 6.85
2	WP98008545		Screw (blk)   (Replaces: 74009537)	10			$ 15.94
2	74010609		Clip, Glass	10	Appelez-nous	-
3	74010605		Door, Panel/glass Assy (stl)	10			$ 157.46
4	7201P053-60		Gasket, Door	10	Appelez-nous	-
5	7201P020-60		Gasket	10	Appelez-nous	-
6	WP7701P495-60		Handle, Door (stl)   (Replaces: 74010606)	10			$ 169.48
7	7902P097-60		Glass, Inner	10			$ 63.87
8	8010P127-60		Spacer, Door Handle (blk)   (Replaces: 74003987)	10	Appelez-nous	-
9	74002201		Lining, Door	10	Appelez-nous	-
10	2410W042-19		Pad, Door	10	Appelez-nous	-
11	3804F051-80		Retainer, Glass	10	Appelez-nous	-
11	WP7101P126-60		Screw   (Replaces: 7101P356-60)	10		Immediately	$ 6.85
12	3804F021-45		Retainer, Gasket	10	Appelez-nous	-
13	5700A082-60		Window Assy.	10			$ 164.77
13	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
14	7101P326-60		Screw	10	Appelez-nous	-
15	WP98008545		Screw (blk)   (Replaces: 74009537)	10			$ 15.94
16	7002P023-60		Insulation, Door----na	10	Appelez-nous	-
17	7002P021-60		Insulation, Door	10	Appelez-nous	-
18	74004991		Panel, Oven Door (blk)	10	Appelez-nous	-
19	8010P127-60		Spacer, Door Handle (blk)   (Replaces: 74003987)	10	Appelez-nous	-
