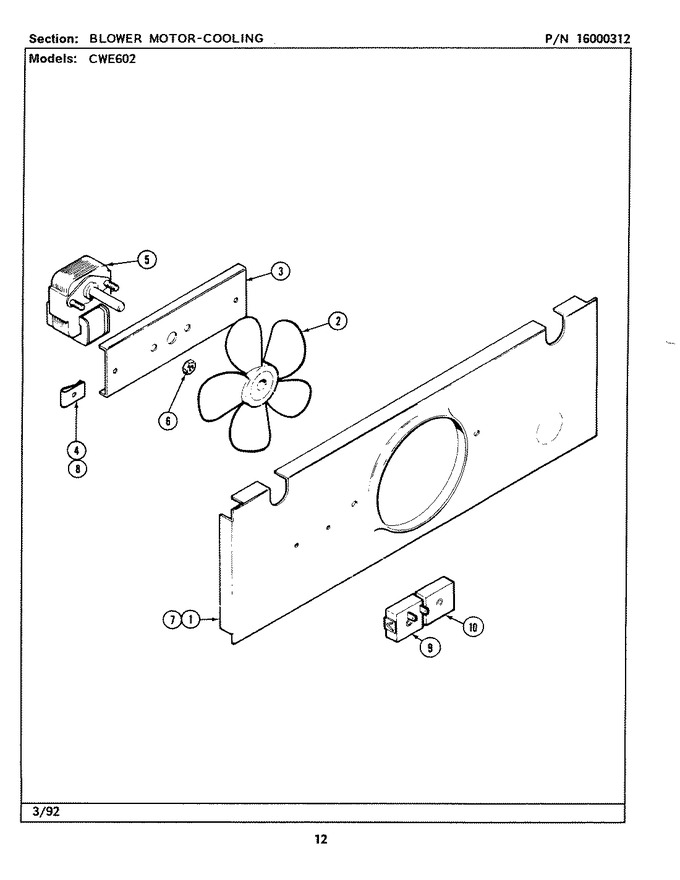

01 - Blower Motor-cooling
02 - Body
03 - Control Panel
04 - Door
05 - Internal Controls
06 - Oven
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 704336 | Plate, Motor | 00 |
|
- | ||||
| 3 | Y704732 | Mount, Motor | 00 |
|
- | ||||
| 4 | Y700556 | Clip, J | 00 |
|
- | ||||
| 5 | Y701721 | Motor, Fan | 00 |
|
- | ||||
| 6 | M0282005 | Nut, Hex (Replaces: 701719) | 00 |
|
$ 7.07 | ||||
| 7 | WP90767 | Screw (Replaces: Y700502) | 00 |
|
Immediately | $ 7.04 | |||
| 8 | WP90767 | Screw (Replaces: 715773) | 00 |
|
Immediately | $ 7.04 | |||
| 9 | 704354 | Switch, Bake Cycle | 00 |
|
- | ||||
| 10 | 704355 | Switch, Broil Cycle | 00 |
|
- | ||||
| NI | 701718 | Blade, Fan | 00 |
|
- |
