SELECT A DIAGRAM

01 - Blower Motor-cooling


02 - Body


03 - Control Panel


04 - Door


05 - Internal Controls


06 - Oven


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	00705174		Frame, Oven Door   (Replaces: 705174)	00		Immediately	$ 473.81
2	712188		Liner, Door	00	Appelez-nous	-
3	Y712010		Plate, Latch (upper)	00	Appelez-nous	-
4	WP210720		Rivet   (Replaces: 701662)	00			$ 12.14
5	701652		Bracket, Stand-off	00	Appelez-nous	-
6	712250		Baffle	00	Appelez-nous	-
7	WPY706189		Screw (blk)   (Replaces: Y704238)	00		Immediately	$ 6.47
8	Y704223		Bumper, Button	00	Appelez-nous	-
9	Y704287		Glass, Lower Door	00	Appelez-nous	-
9	705071K		Glass, Screened	00	Appelez-nous	-
10	703861		Handle, Oven Cwe1000	00	Appelez-nous	-
11	703862		Spacer, Door Cwe1000	00	Appelez-nous	-
12	715939		Bushing	00	Appelez-nous	-
13	Y700446		Washer	00			$ 5.27
14	W11164114		Screw (no.10-24) ----sub   (Replaces: Y703532)	00			$ 3.76
15	701648		Window Pack	00	Appelez-nous	-
16	701658		Insulation, Bottom	00	Appelez-nous	-
17	Y712208		Plug (lower)	00	Appelez-nous	-
18	704487		Clip	00	Appelez-nous	-
19	Y704488		Screw (black)	00	Appelez-nous	-
20	WP701650		Seal, Oven Door   (Replaces: 701650)	00			$ 184.62
21	DE81-08905A		Insulation, Side   (Replaces: 701659)	00			$ 160.26
22	DE81-07129A		Rivet, Accordion   (Replaces: 701641)	00			$ 128.48
23	701643		Nut, Push In	00	Appelez-nous	-
24	Y704820		Glass, Baffle	00	Appelez-nous	-
25	705404		Clip	00	Appelez-nous	-
26	701660		Insulation, Top	00	Appelez-nous	-
27	703958		Screw	00	Appelez-nous	-
28	715870		Screw	00	Appelez-nous	-
29	W11233072		Screw   (Replaces: Y707347)	00		Immediately	$ 12.62
30	Y704819		Retainer, Glass	00	Appelez-nous	-

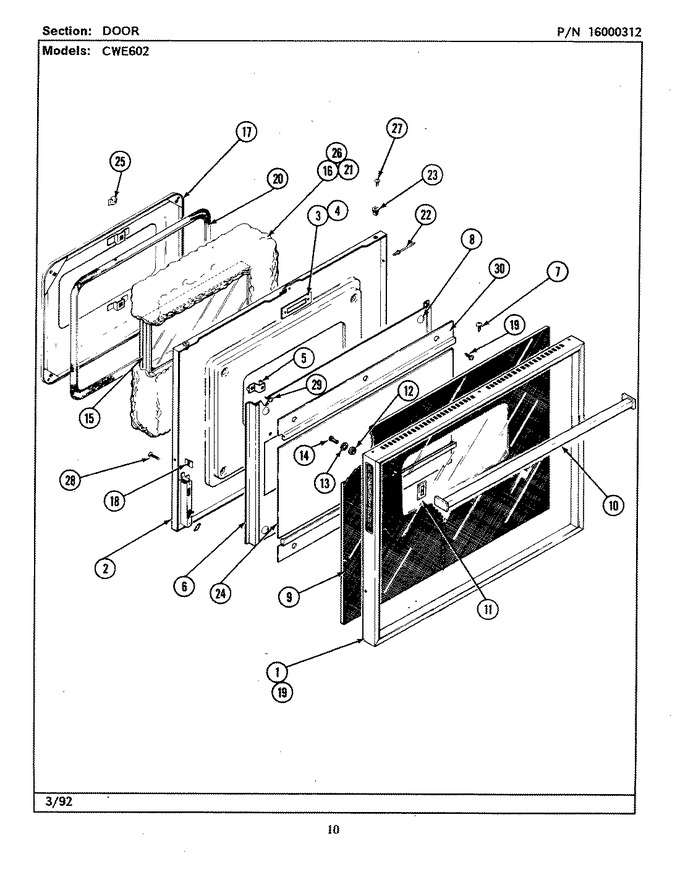

    View Diagram in Separate Window       Print Part List
