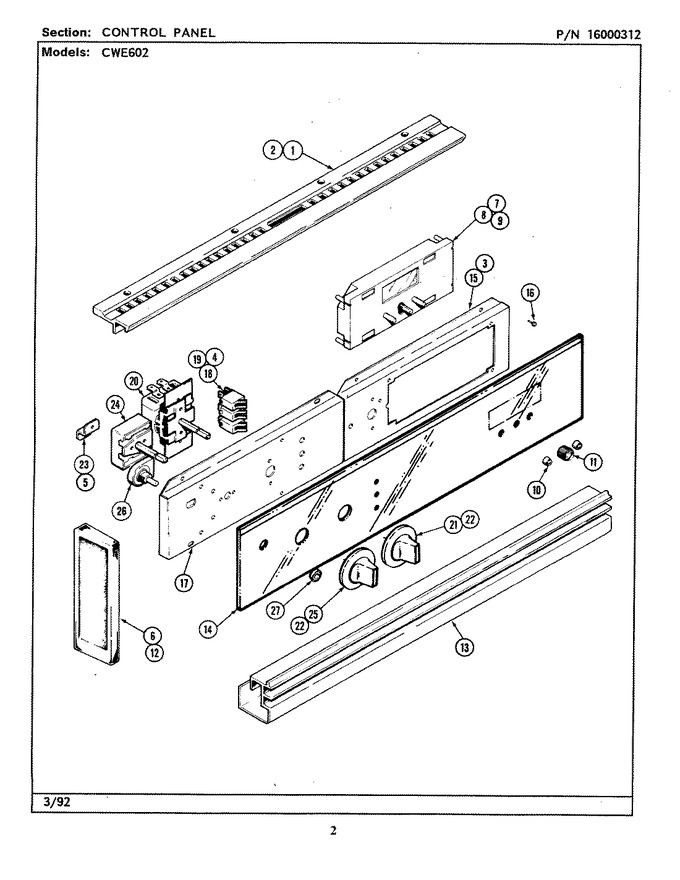

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 704256 | Extrusion, Top | 00 |
|
- | ||||
| 2 | 712066 | Screw | 00 |
|
- | ||||
| 3 | 702286 | Plug, Hole | 00 |
|
- | ||||
| 4 | Y700630 | Lens, Indicator Lights | 00 |
|
$ 4.18 | ||||
| 5 | WP12990527 | Screw (Replaces: Y708955) | 00 |
|
Immediately | $ 7.15 | |||
| 6 | 701635 | Cap, End (lt) | 00 |
|
- | ||||
| 7 | 703676 | Bracket, Timer | 00 |
|
- | ||||
| 8 | Y703708 | Clock | 00 |
|
- | ||||
| 9 | 703679 | Palnut | 00 |
|
- | ||||
| 10 | WP7711P492-60 | Knob, Clock (sm/blk) (Replaces: Y704239) | 00 |
|
$ 12.13 | ||||
| 11 | WP7711P492-60 | Knob, Clock (blk) (Replaces: Y703910) | 00 |
|
$ 12.13 | ||||
| 12 | 701619 | Cap, End (rt) | 00 |
|
- | ||||
| 13 | 705140 | Extrusion, Bottom (blk) | 00 |
|
- | ||||
| 14 | 04100275 | Glass, Control Panel (blk) | 00 |
|
- | ||||
| 15 | 705336 | Panel, Control (rt) | 00 |
|
- | ||||
| 16 | 705331 | Pad, Spacer | 00 |
|
- | ||||
| 17 | 705337 | Panel, Control (lt) | 00 |
|
- | ||||
| 18 | Y702394 | Light, Indicator 240v | 00 |
|
- | ||||
| 19 | Y702393 | Light, Indicator-120v | 00 |
|
- | ||||
| 20 | 703080 | Thermostat-upper | 00 |
|
- | ||||
| 21 | Y04100277 | Knob, Thermostat (blk) | 00 |
|
- | ||||
| 22 | 71002058 | Screw (Replaces: Y702124) | 00 |
|
$ 5.82 | ||||
| 23 | 701609 | Angle, Attachment | 00 |
|
- | ||||
| 24 | 703078 | Switch, Selector (upper) | 00 |
|
- | ||||
| 25 | WPY704841 | Knob, Selector (Replaces: Y04100276) | 00 |
|
$ 40.37 | ||||
| 26 | Y705011 | Switch, Push (alum) | 00 |
|
- | ||||
| 27 | 703089 | Wire, Tan | 00 |
|
- | ||||
| 27 | DE81-09159A | Wire, Wire (Replaces: 703370) | 00 |
|
$ 313.88 | ||||
| 27 | 702746 | Tie, Mount Cable | 00 |
|
- | ||||
| 27 | 702793 | Extension, Switch | 00 |
|
- | ||||
| 27 | DE81-04412A | Wire, Pink (Replaces: 703090) | 00 |
|
$ 327.97 | ||||
| 27 | 703738 | Harness, Wire | 00 |
|
- | ||||
| 27 | 704903 | Harness, Wire | 00 |
|
- | ||||
| 27 | 705040 | Resistor, Lead | 00 |
|
- |
