SELECT A DIAGRAM
01 - Blower Motor-cooling
02 - Body
03 - Control Panel
04 - Door
05 - Internal Controls
06 - Oven
SELECT A DIAGRAM
New Model Search:

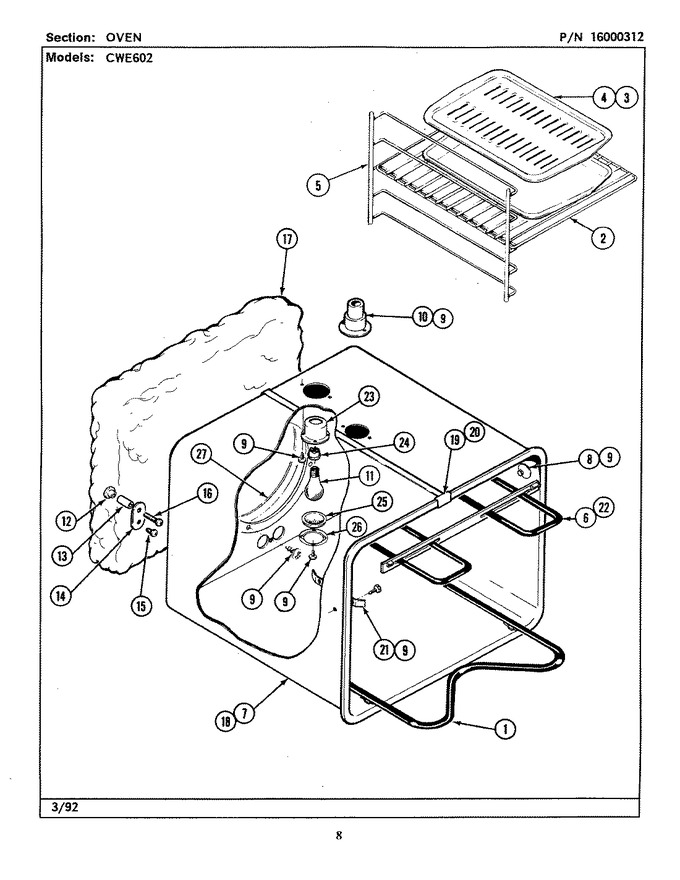

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y704665 | Element, Bake | 00 |
|
- | ||||
| 2 | Y704661 | Rack, Oven | 00 |
|
- | ||||
| 2 | Y704663 | Rack, Oven (offset) | 00 |
|
- | ||||
| 3 | 4396923 | Pan, Broil (Replaces: 703164) | 00 |
|
Immediately | $ 52.04 | |||
| 4 | 4396923 | Insert, Broil Pan (Replaces: 703165) | 00 |
|
Immediately | $ 52.04 | |||
| 5 | Y701728 | Support, Rack | 00 |
|
- | ||||
| 6 | WPY04100514 | Element, Broil (Replaces: Y704667) | 00 |
|
$ 138.97 | ||||
| 7 | Y04100676 | Liner, Oven | 00 |
|
- | ||||
| 8 | 703007 | Standoff | 00 |
|
- | ||||
| 8 | 712088 | Cover, Meat Probe | 00 |
|
- | ||||
| 9 | WP1163283 | Screw (Replaces: Y703741) | 00 |
|
$ 6.47 | ||||
| 10 | 701738 | Tube, Vent | 00 |
|
- | ||||
| 11 | 8009 | Bulb, Oven (40 Watt Brass) (Replaces: Y707319) | 00 |
|
Immediately | $ 16.80 | |||
| 12 | 715294 | Nut, Tee | 00 |
|
- | ||||
| 13 | 701741 | Spacer, Oven | 00 |
|
- | ||||
| 14 | 701742 | Plate, Grounding | 00 |
|
- | ||||
| 15 | WP71001171 | Screw (Replaces: Y707745) | 00 |
|
$ 6.26 | ||||
| 16 | 701744 | Screw | 00 |
|
- | ||||
| 17 | 701703 | Insulation, Rear | 00 |
|
- | ||||
| 18 | 701702 | Insulation, Wrap | 00 |
|
- | ||||
| 19 | Y702618 | Clip, Oven | 00 |
|
- | ||||
| 20 | WP210720 | Rivet (Replaces: 701662) | 00 |
|
$ 12.14 | ||||
| 21 | Y701541 | Clip, Bulb | 00 |
|
- | ||||
| 22 | WP179051 | Screw (Replaces: 708764) | 00 |
|
Immediately | $ 7.16 | |||
| 23 | 704142 | Receptacle, Holder | 00 |
|
- | ||||
| 24 | Y704145 | Receptacle, Snap-in | 00 |
|
- | ||||
| 25 | Y704143 | Lens, Light | 00 |
|
- | ||||
| 26 | Y704144 | Retainer, Lens | 00 |
|
- | ||||
| 27 | 705343 | Plate, Non-convect | 00 |
|
- |
