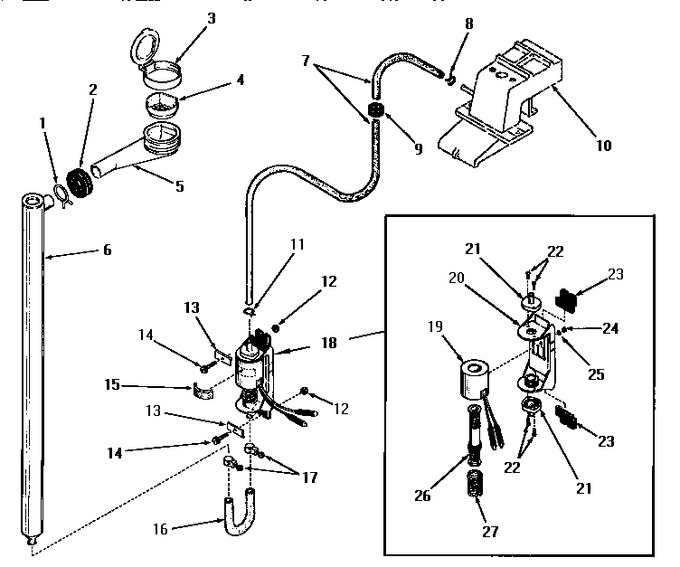

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y03640		Clamp		Appelez-nous	-
2	20118		Grommet,1982 Inv		Appelez-nous	-
3	22484		Bleach Lid		Appelez-nous	-
4	21984		Cover,dispenser				$ 101.66
5	22377		Dispenser Xreplace		Appelez-nous	-
6	22303		Tube,bleach		Appelez-nous	-
7	22300		Hose		Appelez-nous	-
8	23410		Hose Clamp		Appelez-nous	-
9	22299		Grommet		Appelez-nous	-
10	Y00000000		See Note Water Inlet		Appelez-nous	-
11	22295		Hose Clamp		Appelez-nous	-
12	22001		Nut,10-24 Nylon Hex Br				$ 99.72
13	Y22287		Bleach Pump Bracket		Appelez-nous	-
14	25989		Hex Head Screw		Appelez-nous	-
15	25220		Bumper		Appelez-nous	-
16	22302		Hose		Appelez-nous	-
17	24904		Clamp		Appelez-nous	-
18	22337		Pump,bleach		Appelez-nous	-
19	22337B		Coil And Frame		Appelez-nous	-
20	22337A		Base		Appelez-nous	-
21	22337E		Hose Connector		Appelez-nous	-
22	51356		Screw,6-32 X 5/16 Rd H		Appelez-nous	-
23	22337F		Isolation Mount		Appelez-nous	-
24	22337G		Nut		Appelez-nous	-
25	21735		Lockwasher,no.10 Intshkp		Appelez-nous	-
26	22337C		Armature And Valve		Appelez-nous	-
27	22337D		Spring		Appelez-nous	-
