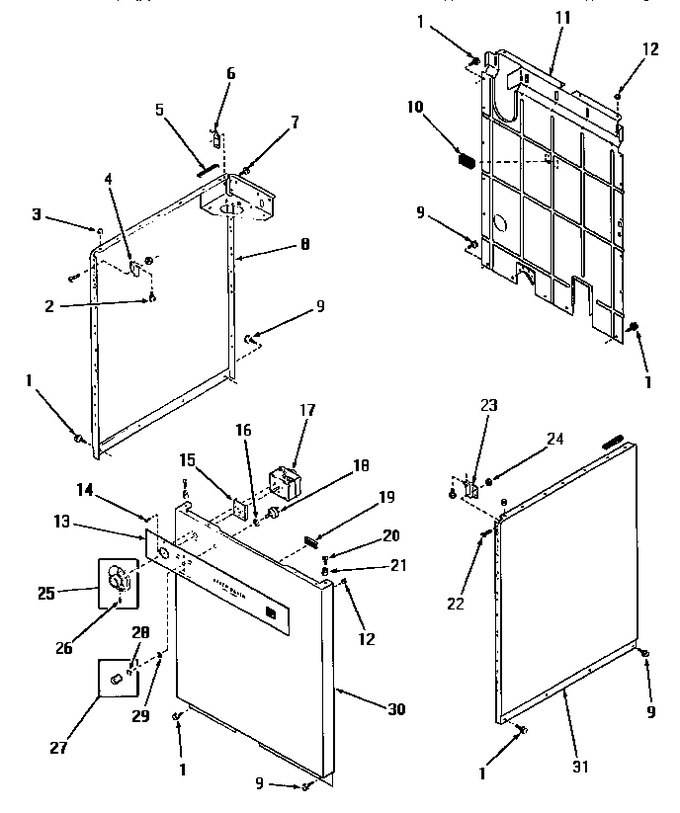

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	26592		Hex Head Screw		Appelez-nous	-
2	23008		Screw,10-24 X 3/4 Sems				$ 6.95
3	21176		Bumper		Appelez-nous	-
4	22847		Bracket		Appelez-nous	-
5	80312		Bumper Pad				$ 20.03
6	52487		Lug,hold-down		Appelez-nous	-
7	51784		Screw,10b-16 X 1/2 Hex		Appelez-nous	-
8	25967W		Side Panel, Left, White		Appelez-nous	-
9	WP27001200		Hex Head Screw   (Replaces: 26415)				$ 6.91
10	23257		Pad,bumper		Appelez-nous	-
11	24342GR		Rear Panel, Gray		Appelez-nous	-
12	20387		Bumper		Appelez-nous	-
13	26368		Control Panel		Appelez-nous	-
14	21355		Screw,8-32 X 1/2 Pan H				$ 14.99
15	26345		Spacer		Appelez-nous	-
16	91176		Lockwasher,3/8 Intshkp				$ 1.44
17	26377		No Longer Available		Appelez-nous	-
18	21300		Switch,temperature				$ 45.99
19	23259		Pad,bumper		Appelez-nous	-
20	Q6535		Screw,10b-16 X 3/4 Rou		Appelez-nous	-
21	23020		Mount,panel		Appelez-nous	-
22	03814		Screw,10-24 X 1/2 Roun		Appelez-nous	-
23	22847		Bracket		Appelez-nous	-
24	M0282009		Locknut   (Replaces: 23951)				$ 12.06
25	26383		Timer Knob Assembly		Appelez-nous	-
26	26381		Setscrew		Appelez-nous	-
27	22245		Xreplace		Appelez-nous	-
28	22244		Clip,c Xreplace		Appelez-nous	-
29	24205		Nut,knurled 3/8-24				$ 244.00
30	26414W		Front Panel, White		Appelez-nous	-
31	24336W		Xreplace		Appelez-nous	-
