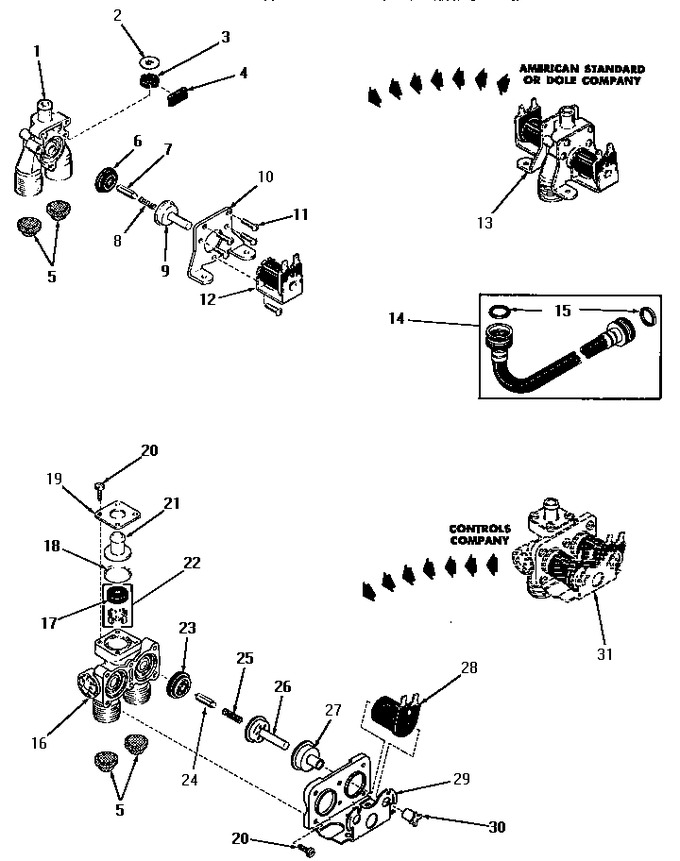

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	20678		Body,valve		Appelez-nous	-
2	23224G		Diffuser		Appelez-nous	-
3	21187C		Regulator,flow		Appelez-nous	-
3	23224C		Regulator,flow		Appelez-nous	-
4	21561D		Plug		Appelez-nous	-
5	20181-0		Inlet Screen		Appelez-nous	-
6	23224F		Diaphragm		Appelez-nous	-
7	23224D		Armature		Appelez-nous	-
8	23224E		Spring		Appelez-nous	-
9	23224B		Guide		Appelez-nous	-
10	21561E		Mounting Bracket		Appelez-nous	-
11	21561G		Round Head Screw		Appelez-nous	-
12	21714A		Solenoid		Appelez-nous	-
13	Y00000000		See Note Mixing Valve Assembly		Appelez-nous	-
14	20241		Inlet Hose, 4 Feet		Appelez-nous	-
15	20290		Washer, 19/32 Idx1.031		Appelez-nous	-
16	24596Q		Valve Body		Appelez-nous	-
17	Y00000000		See Note Install With Concave Surface Down Toward Valve Body		Appelez-nous	-
18	24596L		Outlet Fitting Gasket		Appelez-nous	-
19	24596N		Outlet Fitting Plate		Appelez-nous	-
20	24596P		Screw		Appelez-nous	-
21	24596M		Outlet Fitting		Appelez-nous	-
22	24596J		Regulator,flow		Appelez-nous	-
22	24597J		Flow Regulator		Appelez-nous	-
23	24596H		Diaphragm		Appelez-nous	-
24	24596G		Armature		Appelez-nous	-
25	24596F		Spring		Appelez-nous	-
26	24596E		Guide		Appelez-nous	-
27	24596D		Guide Sleeve		Appelez-nous	-
28	24596A		Solenoid		Appelez-nous	-
29	24596C		Mounting Bracket		Appelez-nous	-
30	24596B		Solenoid Sleeve		Appelez-nous	-
31	Y00000000		See Note Mixing Valve Assembly		Appelez-nous	-
