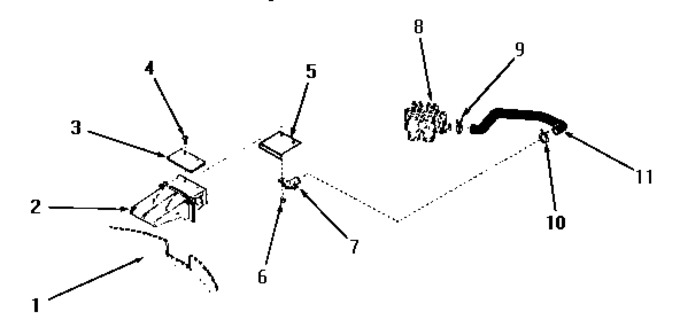

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y00000000		See Note Drain Tub		Appelez-nous	-
2	23480		Inlet,water		Appelez-nous	-
3	23474		Support Plate		Appelez-nous	-
4	20375		Round Head Screw		Appelez-nous	-
5	23572		Screen		Appelez-nous	-
6	21752		Nut,8-32 Hex Brilock		Appelez-nous	-
7	23477		Nozzle,fill Xreplace		Appelez-nous	-
8	Y00000000		See Note Mixing Valve		Appelez-nous	-
9	80479		Hose Clamp		Appelez-nous	-
10	23478		Hose Clamp		Appelez-nous	-
11	25824		Hose,filler		Appelez-nous	-
	NOTE:		Use On Automataic Washers, With Reversing Motors, That Are Located In Areas Where Low Voltage Exists. This Kit Will Help Eliminate Motor Burn Outs.		Appelez-nous	-
