SELECT A DIAGRAM

01 - Cabinet Section

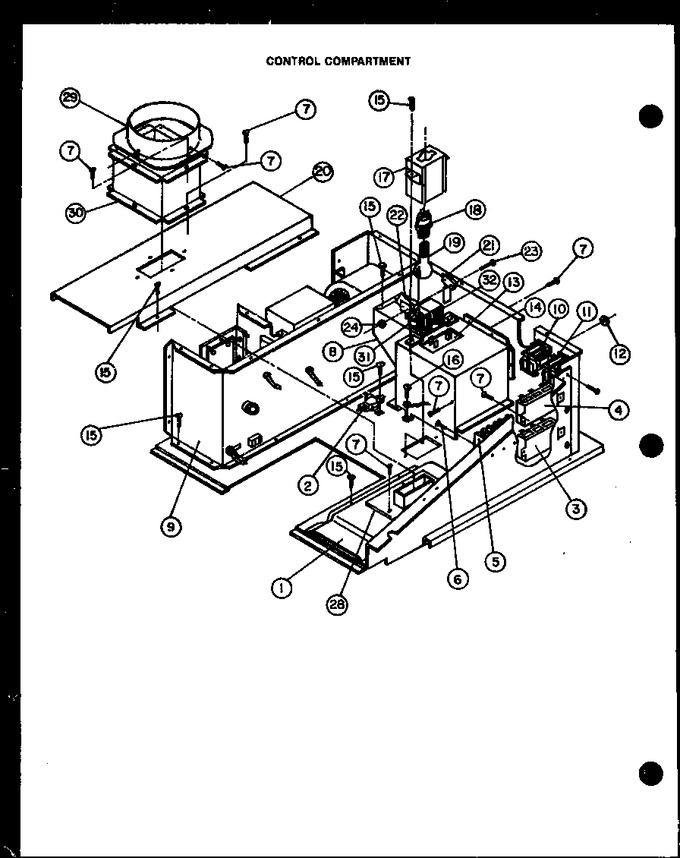

02 - Control Compartment


03 - Door Latch Assy


04 - Magnetron


05 - Oven Acessories


06 - Oven Door Assy


07 - Page 1


08 - Power Supply


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0040582		Use 0053256		Appelez-nous	-
2	Y0042056		Switch Fan Spdt		Appelez-nous	-
4	Y0042040		Sub 91669, Relay		Appelez-nous	-
5	Y0042191		Term Blk Eo&go 1m-2.5m-5m-10m		Appelez-nous	-
6	Y0041813		Screw Cabinet Trim		Appelez-nous	-
7	Y41808		Screw		Appelez-nous	-
8	51710		Duct, Air & Sail Sw.		Appelez-nous	-
9	Y00000000		See Note Power Supply Assy.		Appelez-nous	-
10	51808		Relay		Appelez-nous	-
12	M0282005		Nut K   (Replaces: Y0097887)				$ 7.07
13	Y00000000		See Note Magnetron Assy.		Appelez-nous	-
14	51717		Duct, Magnetron		Appelez-nous	-
15	Y71642		Screw		Appelez-nous	-
16	72270		Screw, Grounding		Appelez-nous	-
17	Y0051688		Cover, Receptacle		Appelez-nous	-
18	73028		Fastener		Appelez-nous	-
19	Y0042175		Bulb, Light		Appelez-nous	-
20	51689		Cover, Flue Box & Mag. Exhaust		Appelez-nous	-
21	66207		Sail Switch				$ 20.50
22	Y0091523		Insulation, Esm		Appelez-nous	-
23	Y71911		Screw		Appelez-nous	-
24	77906		Keps Nut, Hex		Appelez-nous	-
31	51808		Relay		Appelez-nous	-
32	67779		Relay		Appelez-nous	-
NI	40831		Flue Box Cover		Appelez-nous	-
NI	51653		Vent Tube		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
