01 - Cabinet Section


02 - Control Compartment


03 - Door Latch Assy


04 - Magnetron


05 - Oven Acessories


06 - Oven Door Assy


07 - Page 1


08 - Power Supply

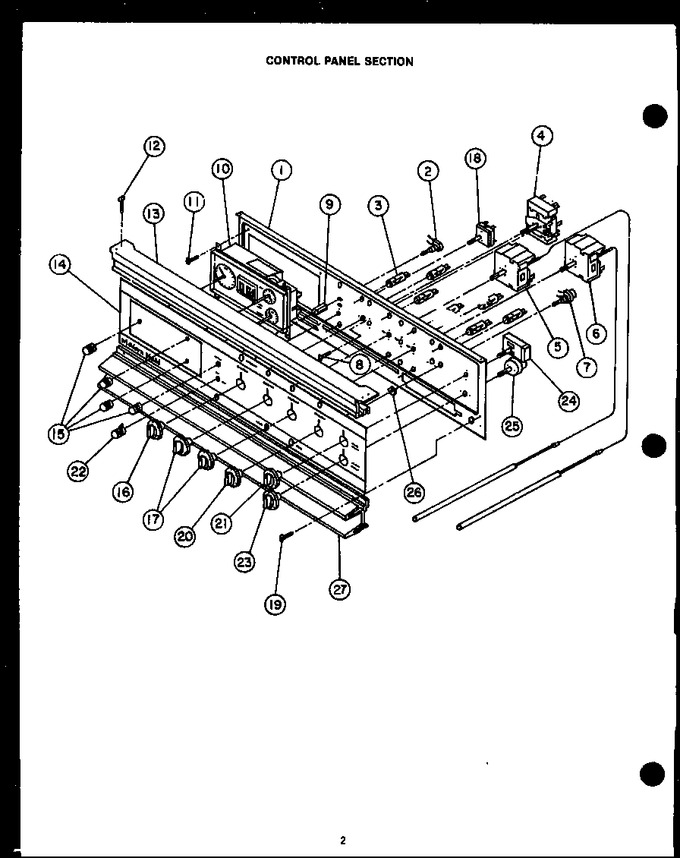

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0051700		Mtg. Bracket, Control		Appelez-nous	-
2	Y0042055		Switch, Oven Light		Appelez-nous	-
3	Y0042183		Indicator Light		Appelez-nous	-
5	0042075		Pyro. Thermostat With Top Heat		Appelez-nous	-
7	65631		Switch, Variable Power Selecto		Appelez-nous	-
8	WP3400882		Screw, No.8-32 X 3/16 Pph   (Replaces: Y0041768)			Immediately	$ 6.47
9	Y0042012		Switch Bushing ,metal		Appelez-nous	-
10	Y0053070		Digital Clock		Appelez-nous	-
11	Y41808		Screw		Appelez-nous	-
12	0041839		Black Screw 8-18x.500		Appelez-nous	-
13	42575		L H Glide		Appelez-nous	-
14	0053073		Glass, Control Panel		Appelez-nous	-
15	Y0042633		Knob, Clock W/o Spring		Appelez-nous	-
17	0042629		Thermostat Knob (black)		Appelez-nous	-
18	Y63503		System Selector Switch		Appelez-nous	-
19	0041839		Black Screw 8-18x.500		Appelez-nous	-
20	51698		Knob, M/w Power Selector		Appelez-nous	-
21	51712		Knob, Microwave Timer		Appelez-nous	-
22	Y63504		Knob, System Selector		Appelez-nous	-
23	51713		Knob, Microwave Delay Timer		Appelez-nous	-
24	63443		Timer, Microwave		Appelez-nous	-
25	67792		Delay Timer, Microwave		Appelez-nous	-
26	Y71897		Nut, 3/8 X 32, Var. Power Sel.		Appelez-nous	-
27	Y0042572		Sub 52492, Trim, Bot., Cntrl P		Appelez-nous	-
NI	0043184		Tape, Foam		Appelez-nous	-
NI	67922		Screw, 6-32 X 1//4		Appelez-nous	-
NI	Y65339		Insulation, Delay Timer Mounti		Appelez-nous	-
NI	0043740		5651105 C		Appelez-nous	-
