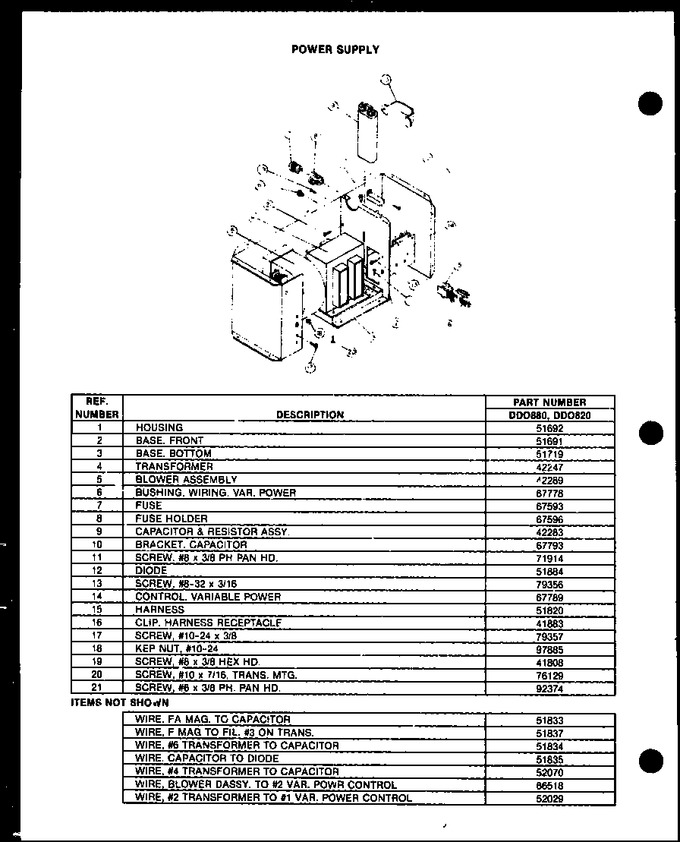

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	51692		Housing		Appelez-nous	-
2	51691		Base, Bottom		Appelez-nous	-
3	51719		Base, Bottom		Appelez-nous	-
4	Y0042247		Sub 312899, Kit Transformer		Appelez-nous	-
5	Y0042289		Blower Assy Microwaves		Appelez-nous	-
6	Y67778		Bushing, Wiring, Var. Power		Appelez-nous	-
7	67593		Fuse		Appelez-nous	-
8	67596		Fuse Holder		Appelez-nous	-
9	0042283		Capacitor & Res 60hz		Appelez-nous	-
10	67793		Bracket, Capacitor		Appelez-nous	-
11	Y71914		Screw, S.m.		Appelez-nous	-
12	Y0051884		Sub 89945, Diode		Appelez-nous	-
13	79356		Screw		Appelez-nous	-
14	67789		Control, Variable Power		Appelez-nous	-
15	512120001		Harness   (Replaces: 51820)		Appelez-nous	-
16	Y0041883		Mounting Clip Ko-661		Appelez-nous	-
17	79357		Screw		Appelez-nous	-
18	M0282009		Nut   (Replaces: Y0097885)				$ 12.06
19	Y41808		Screw		Appelez-nous	-
20	DE81-07625A		Screw   (Replaces: 76129)				$ 43.88
21	Y0092374		Metal Screw 6x3/8 Phil Pan Hd		Appelez-nous	-
NI	51833		Spacer		Appelez-nous	-
NI	51837		Door Release Rod		Appelez-nous	-
NI	51834		Shaft,drum		Appelez-nous	-
NI	Y0052070		Wire Jumper		Appelez-nous	-
NI	66518		Wire		Appelez-nous	-
NI	52029		Wire		Appelez-nous	-
NI	51835		Shaft,fan				$ 9.22
