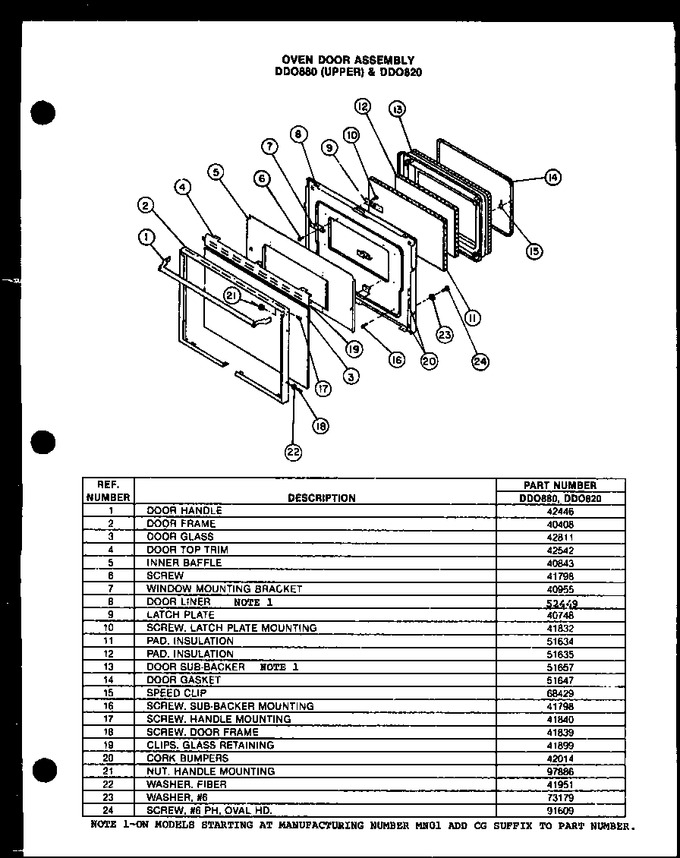

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0042446		Oven Door Handle		Appelez-nous	-
2	0040408		Sub 42599, Door Frame, Black		Appelez-nous	-
3	0042811		Oven Door Glass No Window		Appelez-nous	-
4	0042542		Door Top Trim Pk411		Appelez-nous	-
5	Y0040843		Sub 301830g, Inner Baffle		Appelez-nous	-
6	0041798		Screw 8-18x.875 B Hx Hd		Appelez-nous	-
7	Y0040955		Window Mtg. Brkt. Pk411		Appelez-nous	-
8	0052449		Door Liner, Charcoal Gray		Appelez-nous	-
9	Y0040748		Sub 52039, Latch Plate		Appelez-nous	-
10	Y0041832		Screw No.8x3/8 Sq. Drive		Appelez-nous	-
11	51634		Pad, Insulation		Appelez-nous	-
12	51635		Pad, Insulation		Appelez-nous	-
13	Y0051657		Backer, Oven Door		Appelez-nous	-
14	Y51647		Tape,2 In Wide 3m 234		Appelez-nous	-
15	Y68429		Speed Clip		Appelez-nous	-
16	0041798		Screw 8-18x.875 B Hx Hd		Appelez-nous	-
17	0041840		Screw 8-32x.375 Dk Gl Dr Hdl		Appelez-nous	-
18	0041839		Black Screw 8-18x.500		Appelez-nous	-
19	Y0041899		Glass Clip		Appelez-nous	-
20	0042014		Cork Bumper		Appelez-nous	-
21	WP488130		Nut K   (Replaces: Y0097886)				$ 6.27
22	0041951		Black Fiber Washer		Appelez-nous	-
23	73179		Switch		Appelez-nous	-
24	Y0091609		Screw		Appelez-nous	-
