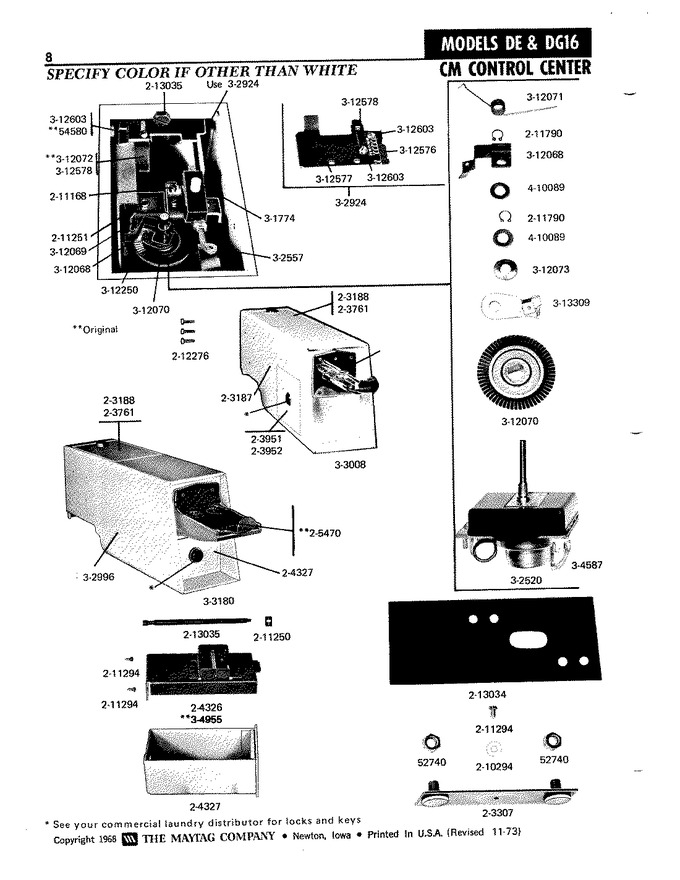

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 205470 | Maytag Coin Slide | 00 |
|
- | ||||
| 2 | Y301774 | Switch For Coin Slide | 00 |
|
- | ||||
| 3 | 304955 | Coin Box Cover | 00 |
|
- | ||||
| 4 | 302520 | Timer | 00 |
|
- | ||||
| 5 | 302557 | Wire, Switch To Timer | 00 |
|
- | ||||
| 6 | Y302924 | Actuator Kit-dryer Slides | 00 |
|
- | ||||
| 7 | 302996 | Outer Case-white | 00 |
|
- | ||||
| 8 | 303008 | Control Center-white | 00 |
|
- | ||||
| 9 | 303180 | Control Center-white | 00 |
|
- | ||||
| 10 | Y312068 | Return Lever | 00 |
|
$ 16.46 | ||||
| 11 | Y312069 | Stop For Actuator | 00 |
|
- | ||||
| 12 | 312070 | Ratchet For Timer | 00 |
|
- | ||||
| 13 | Y312071 | Return Spring For Actuator | 00 |
|
- | ||||
| 14 | 312072 | Slide Adjustment | 00 |
|
- | ||||
| 15 | 312073 | Spring Washer | 00 |
|
- | ||||
| 16 | 312250 | Timer Support Bracket | 00 |
|
- | ||||
| 17 | Y312576 | Zero Slide Adjustment | 00 |
|
- | ||||
| 18 | Y312577 | Bracket For Slide | 00 |
|
- | ||||
| 19 | Y312578 | Slide Adjustment | 00 |
|
- | ||||
| 20 | 312603 | Screw Adjustment Assembly | 00 |
|
- | ||||
| 21 | Y313309 | Timer Actuator Lever | 00 |
|
- | ||||
| 22 | 203187 | Outer Case-white | 00 |
|
- | ||||
| 23 | 203188 | Door, Access (wht) | 00 |
|
- | ||||
| 24 | 203307 | Mtg. Strap----na | 00 |
|
- | ||||
| 25 | 203761 | Access Door-white | 00 |
|
- | ||||
| 26 | 203951 | Coin Box-white | 00 |
|
- | ||||
| 27 | 203952 | Super Security Coin Box | 00 |
|
- | ||||
| 28 | 204326 | Coin Drop Assembly | 00 |
|
- | ||||
| 29 | 204327 | Coin Box-white----na | 00 |
|
- | ||||
| 30 | 210294 | Washer | 00 |
|
- | ||||
| 31 | WPW10139210 | Screw, No.8 X 5/16 Inch (Replaces: 211168) | 00 |
|
$ 6.75 | ||||
| 32 | 211250 | Fastener | 00 |
|
- | ||||
| 33 | 211251 | Screw | 00 |
|
- | ||||
| 34 | WP90767 | Screw (Replaces: 211294) | 00 |
|
Immediately | $ 7.04 | |||
| 35 | 211790 | Lock Ring For Timer Shaft | 00 |
|
$ 6.54 | ||||
| 36 | WP90767 | Screw (Replaces: 212276) | 00 |
|
Immediately | $ 7.04 | |||
| 37 | 213034 | Gasket Under Control Center | 00 |
|
- | ||||
| 38 | 213035 | Bolt, Locking | 00 |
|
$ 5.84 | ||||
| 39 | 410089 | Washer | 00 |
|
- | ||||
| 40 | M0282009 | Hex. Nut----na (Replaces: Y052679) | 00 |
|
$ 12.06 | ||||
| 41 | WP62739 | Nut (Replaces: Y052740) | 00 |
|
$ 6.85 | ||||
| 42 | 054580 | Screw, No.10-32 X 1/4 | 00 |
|
- | ||||
| 43 | 054852 | Lock Washer, 3/16 | 00 |
|
- |
