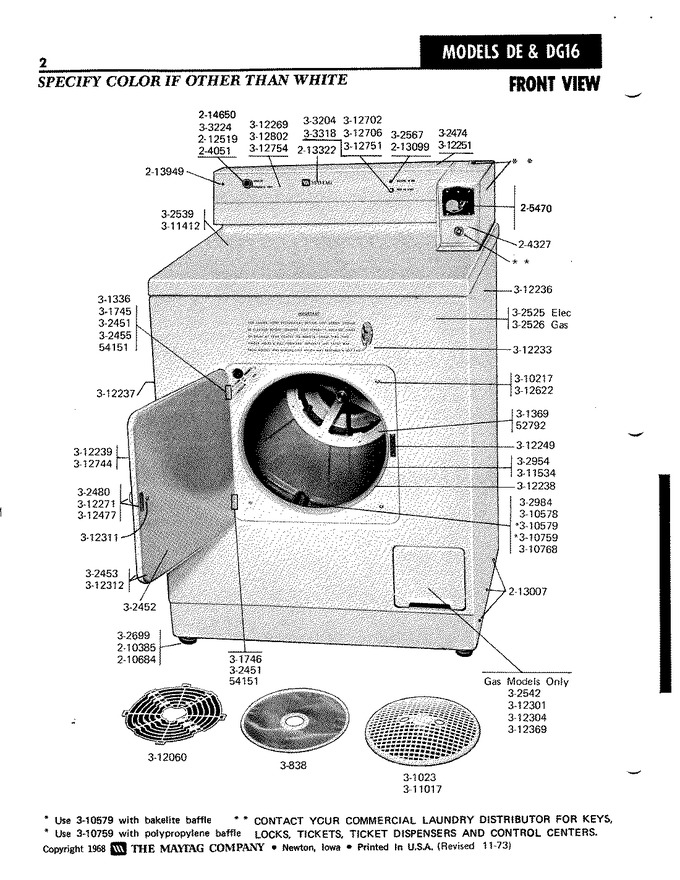

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 205470 | Maytag Coin Slide | 00 |
|
- | ||||
| 2 | 300838 | Lint Screen | 00 |
|
$ 32.17 | ||||
| 3 | 301023 | Lint Screen Retainer | 00 |
|
$ 31.44 | ||||
| 5 | 301369 | Shaft With Spider | 00 |
|
- | ||||
| 6 | 301745 | Door Hinge On Cabinet | 00 |
|
- | ||||
| 7 | 301746 | Door Hinge On Cabinet | 00 |
|
- | ||||
| 8 | 302451 | Hinge Assembly | 00 |
|
- | ||||
| 9 | 302452 | Door Liner | 00 |
|
- | ||||
| 10 | 302453 | Door-white | 00 |
|
- | ||||
| 11 | Y302455 | Switch | 00 |
|
- | ||||
| 12 | 302474 | Control Cover-white | 00 |
|
- | ||||
| 13 | 302480 | Latch | 00 |
|
- | ||||
| 14 | 302525 | Front Panel-white | 00 |
|
- | ||||
| 15 | 302539 | Top Cover-white | 00 |
|
- | ||||
| 16 | 302567 | Pilot Light | 00 |
|
- | ||||
| 17 | 22003428 | Leg, Adjustable (w/nut) (Replaces: Y302699) | 00 |
|
Immediately | $ 14.41 | |||
| 18 | 302954 | Drum W/felt - Porcelain | 00 |
|
- | ||||
| 19 | 302984 | Baffle Assembly - Poly | 00 |
|
- | ||||
| 20 | Y303204 | Start Switch With Nuts | 00 |
|
- | ||||
| 21 | Y303224 | Selector Switch | 00 |
|
- | ||||
| 23 | 310217 | No Longer Available | 00 |
|
- | ||||
| 24 | 310578 | Washer | 00 |
|
- | ||||
| 25 | 310579 | Screw, No.10-24 X 11/16 Inch | 00 |
|
- | ||||
| 26 | Y310759 | Screw | 00 |
|
$ 5.75 | ||||
| 27 | 310768 | Washer | 00 |
|
- | ||||
| 28 | Y311017 | Retainer Spring | 00 |
|
- | ||||
| 29 | 311412 | Screw | 00 |
|
- | ||||
| 30 | 311534 | Felt Seal | 00 |
|
- | ||||
| 31 | 311551 | Clip For Door Harness | 00 |
|
- | ||||
| 32 | Y312060 | Shield For Spider | 00 |
|
- | ||||
| 33 | 312233 | Drying Instruction Overlay | 00 |
|
- | ||||
| 34 | 312236 | Panel-white | 00 |
|
- | ||||
| 35 | 312237 | Panel-white | 00 |
|
- | ||||
| 36 | 312238 | Door Seal | 00 |
|
- | ||||
| 37 | 312239 | Door Panel-white | 00 |
|
- | ||||
| 38 | 312249 | Strike Plate | 00 |
|
- | ||||
| 39 | 312251 | Back For Control Panel | 00 |
|
- | ||||
| 40 | 312255 | Angle For Cabinet - Dryer | 00 |
|
- | ||||
| 41 | 312269 | Control Panel | 00 |
|
- | ||||
| 42 | 312271 | Handle | 00 |
|
- | ||||
| 43 | 312311 | Screw----na | 00 |
|
- | ||||
| 44 | 312312 | Insulation - Door | 00 |
|
- | ||||
| 45 | 312477 | Magnetic Latch Retainer | 00 |
|
- | ||||
| 46 | 312622 | Screw, No.10-16 X 1/2 Inch | 00 |
|
- | ||||
| 47 | Y312702 | Knurled Nut | 00 |
|
$ 18.18 | ||||
| 48 | Y312706 | Hex Nut On Switch | 00 |
|
- | ||||
| 49 | Y312744 | Door Panel-white | 00 |
|
- | ||||
| 50 | WPW10139799 | Lock Washer (Replaces: 312751) | 00 |
|
$ 8.32 | ||||
| 51 | 312754 | Control Panel | 00 |
|
- | ||||
| 52 | 312802 | Control Panel | 00 |
|
- | ||||
| 53 | 204051 | Knob | 00 |
|
Immediately | $ 164.03 | |||
| 54 | 204327 | Coin Box-white----na | 00 |
|
- | ||||
| 55 | WP210385 | Nut, Lock (Replaces: 210385) | 00 |
|
$ 6.26 | ||||
| 56 | WP210684 | Foot, Rubber (Replaces: 210684) | 00 |
|
Immediately | $ 14.09 | |||
| 57 | WP90767 | Screw (Replaces: 211294) | 00 |
|
Immediately | $ 7.04 | |||
| 58 | WP90767 | Screw (Replaces: 212276) | 00 |
|
Immediately | $ 7.04 | |||
| 59 | WP488234 | Screw, No.8-32 X 1/4 Inch (Replaces: 212519) | 00 |
|
$ 6.07 | ||||
| 60 | 213007 | Screw, Cabinet | 00 |
|
$ 10.99 | ||||
| 61 | 213099 | Lens For Control Panel | 00 |
|
- | ||||
| 62 | 213322 | Maytag Decal | 00 |
|
- | ||||
| 63 | WP355214 | Screw, No.8-18 X 5/16 Inch (Replaces: 213949) | 00 |
|
Immediately | $ 7.26 | |||
| 64 | 052792 | Screw, 1 1/4-20 X 5/16 | 00 |
|
- | ||||
| 65 | 054151 | Screw, No.4-40 X 1/4 | 00 |
|
- | ||||
| 66 | 214650 | Screw For 2-4051 Knob | 00 |
|
$ 62.55 |
