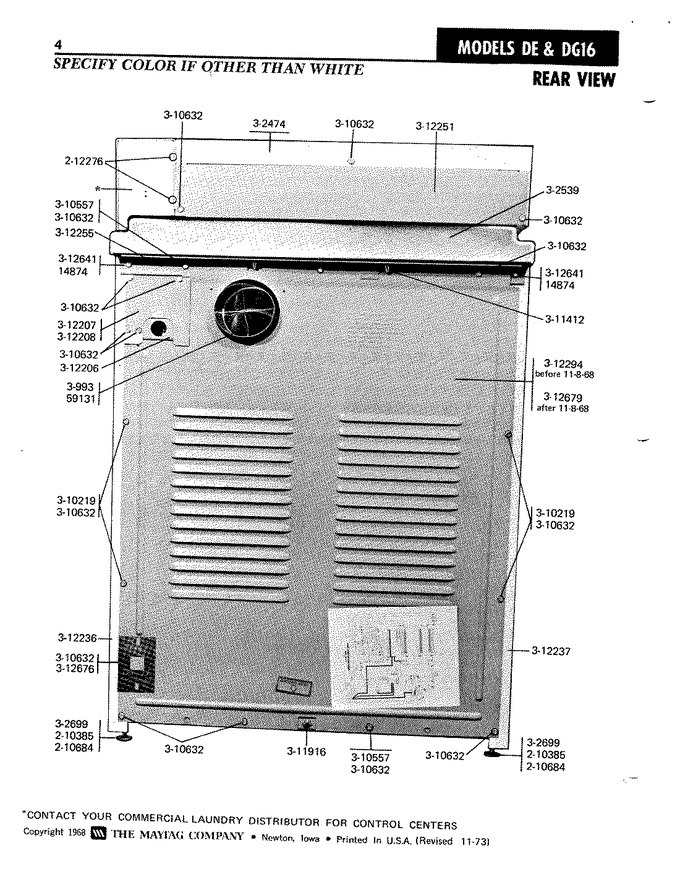

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10311986 | Clamp (Replaces: 300993) | 00 |
|
Immediately | $ 169.33 | |||
| 2 | 302474 | Control Cover-white | 00 |
|
- | ||||
| 3 | 302526 | Front Panel-white | 00 |
|
- | ||||
| 4 | 302539 | Top Cover-white | 00 |
|
- | ||||
| 5 | 22003428 | Leg, Adjustable (w/nut) (Replaces: Y302699) | 00 |
|
Immediately | $ 14.41 | |||
| 6 | 303074 | Pipe And Bracket Assembly | 00 |
|
- | ||||
| 7 | 310219 | No.10z Fastener | 00 |
|
- | ||||
| 8 | 310557 | Washer | 00 |
|
- | ||||
| 9 | Y310632 | Screw | 00 |
|
- | ||||
| 10 | 311412 | Screw | 00 |
|
- | ||||
| 11 | W10850756 | Ground Lug (Replaces: Y311916) | 00 |
|
$ 6.98 | ||||
| 12 | 312206 | Terminal Bracket | 00 |
|
- | ||||
| 13 | 312207 | Terminal Cover | 00 |
|
- | ||||
| 14 | 312236 | Panel-white | 00 |
|
- | ||||
| 15 | 312237 | Panel-white | 00 |
|
- | ||||
| 16 | 312251 | Back For Control Panel | 00 |
|
- | ||||
| 17 | 312255 | Angle For Cabinet - Dryer | 00 |
|
- | ||||
| 18 | 312294 | Back For Cabinet | 00 |
|
- | ||||
| 19 | Y312641 | Ground Clip Speed Nut | 00 |
|
- | ||||
| 20 | 312679 | Back Panel | 00 |
|
- | ||||
| 21 | WP210385 | Nut, Lock (Replaces: 210385) | 00 |
|
$ 6.26 | ||||
| 22 | WP210684 | Foot, Rubber (Replaces: 210684) | 00 |
|
Immediately | $ 14.09 | |||
| 23 | WP90767 | Screw (Replaces: 212276) | 00 |
|
Immediately | $ 7.04 | |||
| 24 | WPY014874 | Screw (Replaces: Y014874) | 00 |
|
$ 6.98 | ||||
| 25 | Y059131 | Elbow, Venting (4``) | 00 |
|
- |
