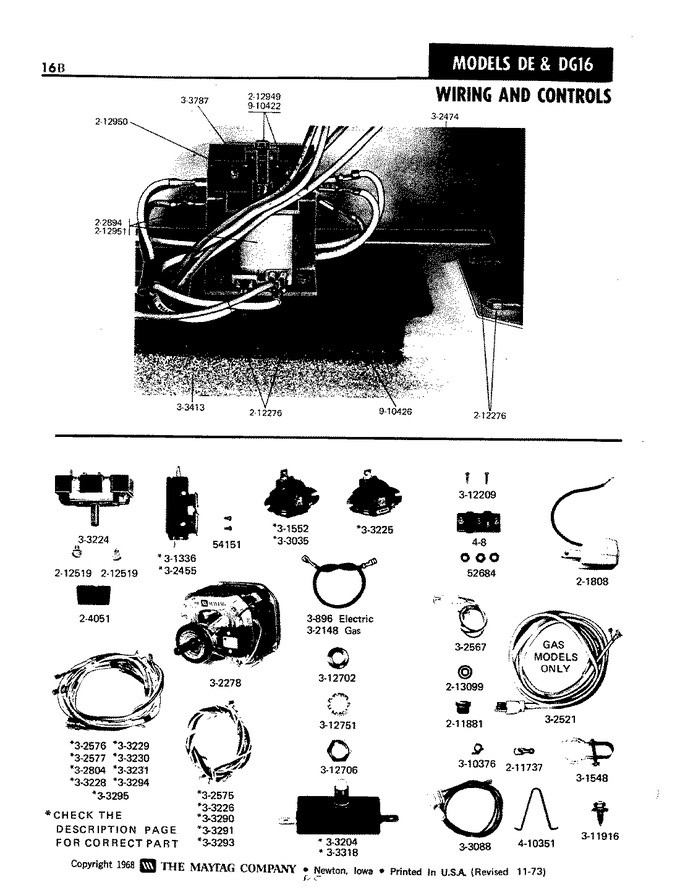

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y300896 | No.2 Wire | 00 |
|
- | ||||
| 3 | 301548 | Clamp, Ground (w/screw) | 00 |
|
- | ||||
| 4 | 301552 | Regulating Thermostat | 00 |
|
- | ||||
| 5 | 302148 | No.4 Wire W/receptacles Gas | 00 |
|
- | ||||
| 6 | Y302278 | Motor | 00 |
|
- | ||||
| 7 | Y302455 | Switch | 00 |
|
- | ||||
| 8 | 302567 | Pilot Light | 00 |
|
- | ||||
| 9 | 302575 | Door Switch Harness | 00 |
|
- | ||||
| 10 | 302576 | Wire Harness | 00 |
|
- | ||||
| 11 | WP694674 | Regulating Thermostat (Replaces: 303035) | 00 |
|
Immediately | $ 45.46 | |||
| 12 | 303088 | Gas Valve Wires With Plug | 00 |
|
- | ||||
| 13 | Y303204 | Start Switch With Nuts | 00 |
|
- | ||||
| 14 | Y303224 | Selector Switch | 00 |
|
- | ||||
| 15 | Y303225 | Thermostat, Permanent Press | 00 |
|
$ 46.70 | ||||
| 16 | 303226 | Wire Harness For Door Switc | 00 |
|
- | ||||
| 17 | 303227 | Thermostat Wire Harness | 00 |
|
- | ||||
| 19 | 303229 | Main Wire Harness | 00 |
|
- | ||||
| 21 | 303291 | Door Switch Harness | 00 |
|
- | ||||
| 24 | 303295 | Wire Harness, Main | 00 |
|
- | ||||
| 26 | Y310376 | Clip, Wire Harness | 00 |
|
- | ||||
| 27 | W10850756 | Ground Lug (Replaces: Y311916) | 00 |
|
$ 6.98 | ||||
| 28 | W11164114 | Screw, No.10-24 X 3/4 Inch (Replaces: Y312209) | 00 |
|
$ 3.76 | ||||
| 29 | Y312702 | Knurled Nut | 00 |
|
$ 18.18 | ||||
| 30 | Y312706 | Hex Nut On Switch | 00 |
|
- | ||||
| 31 | WPW10139799 | Lock Washer (Replaces: 312751) | 00 |
|
$ 8.32 | ||||
| 32 | Y201808 | Converter | 00 |
|
- | ||||
| 33 | 204051 | Knob | 00 |
|
Immediately | $ 164.03 | |||
| 34 | WP248562 | Wire Connector (Replaces: 211737) | 00 |
|
$ 6.95 | ||||
| 35 | WP488234 | Screw, No.8-32 X 1/4 Inch (Replaces: 212519) | 00 |
|
$ 6.07 | ||||
| 36 | 213099 | Lens For Control Panel | 00 |
|
- | ||||
| 37 | 400008 | Block, Terminal | 00 |
|
$ 29.20 | ||||
| 38 | 410351 | Harness Retainer | 00 |
|
- | ||||
| 39 | WP112432 | Hex. Nut, No.10-32 (Replaces: Y052684) | 00 |
|
$ 7.16 | ||||
| 40 | 054151 | Screw, No.4-40 X 1/4 | 00 |
|
- |
