SELECT A DIAGRAM

02 - Cabinet


03 - Liner


04 - Breaker And Partition


05 - Unit


06 - Door , Not Illustrated And Optional

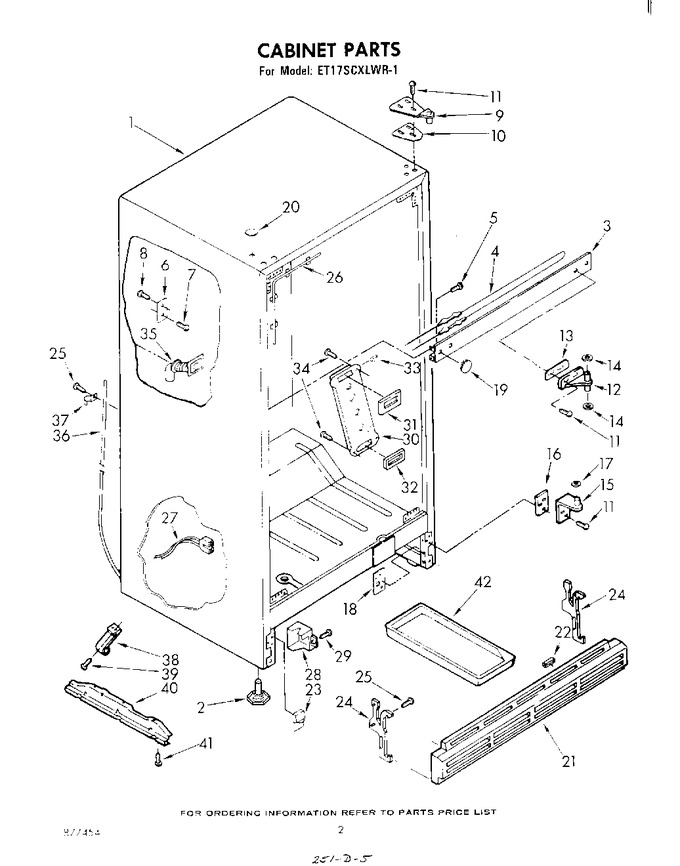

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	836392		Cabinet, Level		Appelez-nous	-
3	836067		Center Rail (white)		Appelez-nous	-
4	989256		Heater, Mullion		Appelez-nous	-
5	488624		Screw, 8 X 3/8 (4)		Appelez-nous	-
5	487470		Screw (repair)		Appelez-nous	-
6	547603		Strap, Ground		Appelez-nous	-
7	WP489128		Screw, 8-32 X 3/8   (Replaces: 488500)				$ 9.79
8	488684		Screw, 8-32 X 1-1/2		Appelez-nous	-
9	842039		Hinge, Top		Appelez-nous	-
10	836151		Shim, Hinge Top		Appelez-nous	-
11	488949		Screw (repair)		Appelez-nous	-
11	WP999367		Screw, 10-32 X 3/4 (3)   (Replaces: 488948)				$ 7.07
12	836153		Hinge, Center		Appelez-nous	-
13	836155		Shim, Hinge Center		Appelez-nous	-
14	WP488296		Washer (2)   (Replaces: 488296)				$ 6.47
15	836686		Hinge (bottom)		Appelez-nous	-
16	836196		Shim, Bottom Hinge		Appelez-nous	-
17	WP487802		Washer   (Replaces: 488723)			Immediately	$ 7.12
18	836162		Tap-plate, Bottom Hinge		Appelez-nous	-
19	835974		Hole, Plug (2) (white)		Appelez-nous	-
20	842031		Hole Plug (3) (white)		Appelez-nous	-
21	934568		Exterior, Grille		Appelez-nous	-
22	546131		Bumper, Grille (2)		Appelez-nous	-
23	934569		Filler, Grille		Appelez-nous	-
24	844614		Support, Grille (2)		Appelez-nous	-
25	W11624204		Screw, 8 X 1/2 (2)   (Replaces: 486194)				$ 12.62
26	531670		Stile, Heater		Appelez-nous	-
27	548734		Wire Assembly (water Valve)		Appelez-nous	-
28	549947		Box, Junction		Appelez-nous	-
29	WP488729		Screw, 8 X 1/2   (Replaces: 486993)			Immediately	$ 7.01
30	934057		Duct, Air		Appelez-nous	-
31	836565		Gasket Inlet		Appelez-nous	-
32	934058		Gasket Outlet		Appelez-nous	-
33	488564		Speednut (4)		Appelez-nous	-
34	WP98165		Screw, 8 X 5/8 (2)   (Replaces: 488401)				$ 7.20
35	942546		Fitting, Drain		Appelez-nous	-
36	8316810		Tube, Drain   (Replaces: 509638)				$ 107.76
37	836077		Tube Clamp		Appelez-nous	-
38	840239		Drain, Clamp Deck		Appelez-nous	-
39	489050		Screw, 8-32 X 1/2 (2)				$ 623.30
40	843164		Drain Pan Slide		Appelez-nous	-
41	489050		Screw, 8-32 X 1/2 (6)				$ 623.30
42	836205		Tray, Evaporator		Appelez-nous	-
