SELECT A DIAGRAM

02 - Cabinet


03 - Liner


04 - Breaker And Partition

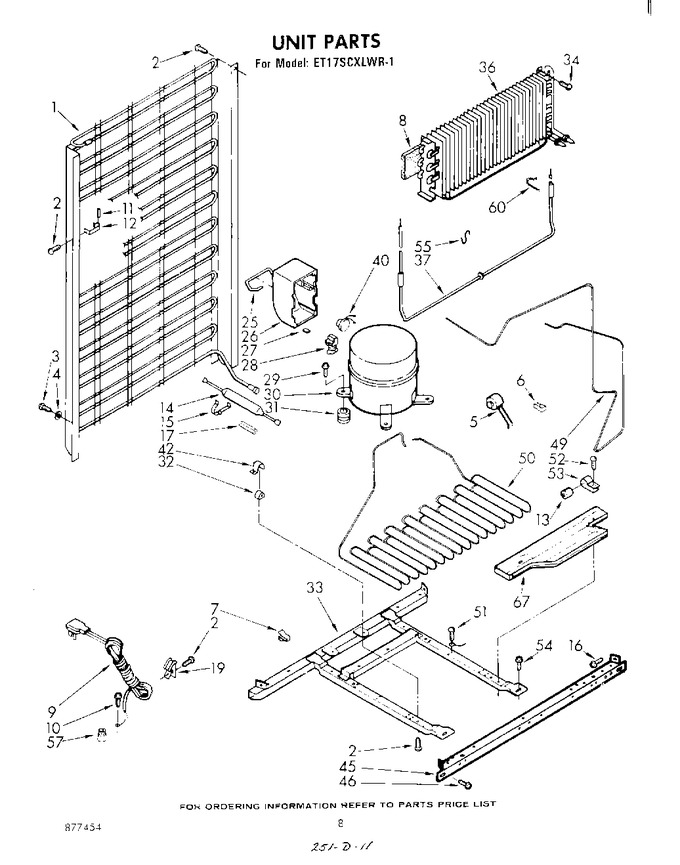

05 - Unit


06 - Door , Not Illustrated And Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	938147		Condenser		Appelez-nous	-
2	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 12.62
3	WP488729		Screw, 8 X 1/2   (Replaces: 486993)			Immediately	$ 7.01
4	204349		Bumper		Appelez-nous	-
5	WP4387489		Defrost, Bimetal   (Replaces: 989589)				$ 93.42
5	WP4387489		Defrost, Bimetal (alternate)   (Replaces: 989588)				$ 93.42
6	513584		Clamp		Appelez-nous	-
7	548745		Clip, Wire (2)		Appelez-nous	-
8	981726		Baffle, Evaporator		Appelez-nous	-
9	850626		Cord, Service		Appelez-nous	-
10	488474		Screw, Ground		Appelez-nous	-
11	850194		Dampener		Appelez-nous	-
12	515268		Clip		Appelez-nous	-
13	510769		Dampener (2)		Appelez-nous	-
14	W10843121		Drier   (Replaces: 978246)			Immediately	$ 47.31
15	547637		Clamp, Drier		Appelez-nous	-
16	WP488729		Screw, 8 X 1/2 (4)   (Replaces: 488964)			Immediately	$ 7.01
17	510446		Sleeve, Restrictor		Appelez-nous	-
19	549193		Clamp-cord				$ 12.05
25	531318		Spring		Appelez-nous	-
26	549945		Case		Appelez-nous	-
27	547272		Bumper		Appelez-nous	-
28	989661		Relay (alternate)		Appelez-nous	-
28	989662		Relay		Appelez-nous	-
29	488400		Screw, 1/4-28 X 1`` (4)		Appelez-nous	-
30	464081		Compressor		Appelez-nous	-
31	547283		Grommet (4)		Appelez-nous	-
32	513646		Grommet (4)		Appelez-nous	-
33	548654		Frame		Appelez-nous	-
34	W11693756		Screw, 8 X 5/8   (Replaces: 488687)			Immediately	$ 12.65
36	989650		Evaporator		Appelez-nous	-
37	992942		Heater, Defrost		Appelez-nous	-
40	549041		Overload		Appelez-nous	-
42	531086		Clamp, Tube (4)		Appelez-nous	-
45	941697		Rail, Front		Appelez-nous	-
46	489340		Screw, 5/16-18 X 5/8 (4)   (Replaces: 488683)		Appelez-nous	-
49	943360		Exchanger, Heat		Appelez-nous	-
50	938355		Precooler		Appelez-nous	-
51	303776		Screw, Ground   (Replaces: 488879)		Appelez-nous	-
52	WPW10141625		Screw, 8-32 X 1/2 (2)   (Replaces: 488197)				$ 19.04
53	510716		Clamp (2)		Appelez-nous	-
54	488454		Screw, 1/4-28 X 1/2 (2)		Appelez-nous	-
55	851358		Support, Heater		Appelez-nous	-
57	227991		Nut, Wire		Appelez-nous	-
60	850721		Clip, Heater (2)		Appelez-nous	-
67	978030		Valve, Access (3/4``)				$ 117.64
67	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 94.73
67	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 19.48
67	978028		Valve, Access (1/2)		Appelez-nous	-
67	978029		Valve Access (5/8``)				$ 93.85
67	989269		Pan, Drip		Appelez-nous	-
67	978026		Valve, Access (5/16``)			Immediately	$ 115.28

    View Diagram in Separate Window       Print Part List
