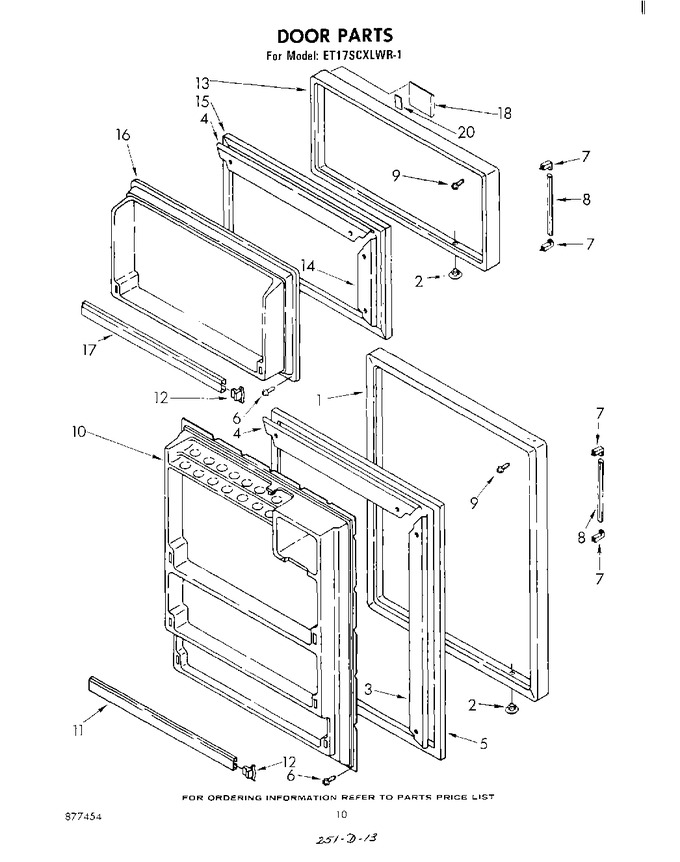

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	992828		Refrigerator Door (white)		Appelez-nous	-
2	534927		Hole Plug (2)		Appelez-nous	-
3	836117		Retainer, Gasket Side (2)		Appelez-nous	-
4	836118		Retainer, Gasket Top & Bottom (4)		Appelez-nous	-
5	2188450A		Door Gasket, Magnetic   (Replaces: 943981)				$ 243.50
6	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 12.62
6	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 7.07
7	845793		End, Door Handle (2)		Appelez-nous	-
8	845792		Door, Handle Center		Appelez-nous	-
9	488818		Screw, .190 X 3/4 (2)				$ 42.82
10	984169		Interior Door Panel		Appelez-nous	-
11	982341		Door Shelf Trim (2)		Appelez-nous	-
12	839975		Retainer, Door Trim (4)				$ 5.84
13	935154		Freezer Door (white)		Appelez-nous	-
14	836119		Retainer, Gasket Side (2)		Appelez-nous	-
15	2188460A		Door Gasket Magnetic   (Replaces: 942933)				$ 198.44
16	983155		Interior Door Panel F.c.		Appelez-nous	-
17	843707		Trim, Door Shelf		Appelez-nous	-
18	945114		Nameplate		Appelez-nous	-
20	877454		List, Parts		Appelez-nous	-
20	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
20	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 10.96
20	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 156.56
20	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 106.15
20	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 208.40
20	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
20	799351		Blend, Thinner (1 Gal.)		Appelez-nous	-
20	515393		Transformer (115-230 Volt)		Appelez-nous	-
20	941676		Tech Sheet		Appelez-nous	-
20	942209		Energy Guide		Appelez-nous	-
20	942207		Use & Care Guide		Appelez-nous	-
20	942208		Consumer Buy Guide		Appelez-nous	-
20	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
20	991259		Tape Strip		Appelez-nous	-
20	212643		Sealer, Gum (4 Feet)			Immediately	$ 73.92
20	479502		Tape, Vinyl (1/4`` X 108``)				$ 66.77
20	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
20	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
20	606755		Bag, Insulation (36-5/8`` X 46``)				$ 70.61
20	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
20	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
20	350942		Primer White (13 Oz. Spray Can)				$ 80.69
20	350941		Leveler (13 Oz. Spray Can)		Appelez-nous	-
20	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)			Immediately	$ 51.34
20	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
20	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
