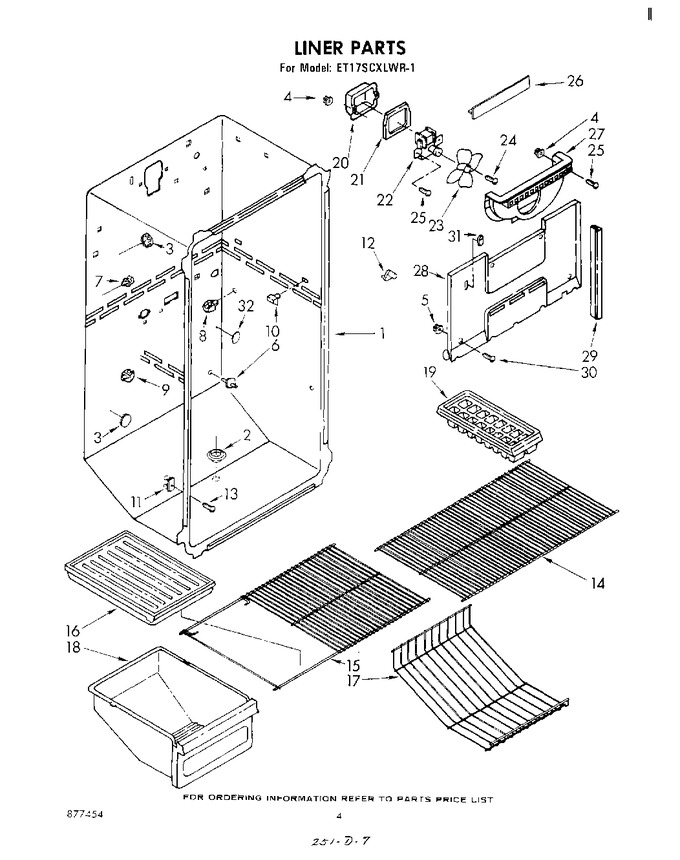

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	835370		Drain Hole Cover		Appelez-nous	-
3	519890		Hole Plug (2)		Appelez-nous	-
4	842339		Grommet		Appelez-nous	-
5	848445		Grommet		Appelez-nous	-
6	652581		Shelf Stud (2)		Appelez-nous	-
7	942219		Shelf Stud (6)		Appelez-nous	-
8	523263		Shelf, Stud R.s. (2)		Appelez-nous	-
9	523264		Shelf, Stud L.s. (3)		Appelez-nous	-
10	836374		Retainer, Stud (4)		Appelez-nous	-
11	539760		Insulator, Spacer (8)		Appelez-nous	-
12	836040		Insulator, Spacer (2)		Appelez-nous	-
13	WP488163		Screw, 8 X 13/16 (8)   (Replaces: 488208)				$ 6.79
14	942203		Shelf Wire (2)		Appelez-nous	-
15	942204		Pan, Shelf Wire		Appelez-nous	-
16	836448		Pan, Cover		Appelez-nous	-
17	942218		Trivet		Appelez-nous	-
18	942205		Pan, Plastic		Appelez-nous	-
19	WP841180A		Ice Tray (2)   (Replaces: 841180)			Immediately	$ 41.00
20	836474		Fan, Motor Cover		Appelez-nous	-
21	836475		Gasket, Fan Cover		Appelez-nous	-
22	482731		Motor, Fan   (Replaces: 548697)			Immediately	$ 71.15
23	WP1100938		Blade, Fan   (Replaces: 548041)				$ 79.08
24	00487887		Screw, 3-48 X 1/4 (2)   (Replaces: 487887)				$ 220.32
25	W11624204		Screw, 8 X 1/2 (2)   (Replaces: 486194)				$ 12.62
26	935068		Gasket, Sealing		Appelez-nous	-
27	935067		Scroll, Fan		Appelez-nous	-
28	986628		Cover, Evaporator		Appelez-nous	-
29	981749		Gasket, Evaporator		Appelez-nous	-
30	WP488729		Screw, 8-15 X 1/2 (6)   (Replaces: 488992)			Immediately	$ 7.01
31	659776		Hole, Plug		Appelez-nous	-
32	943920		Grommet Drain Fitting		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
