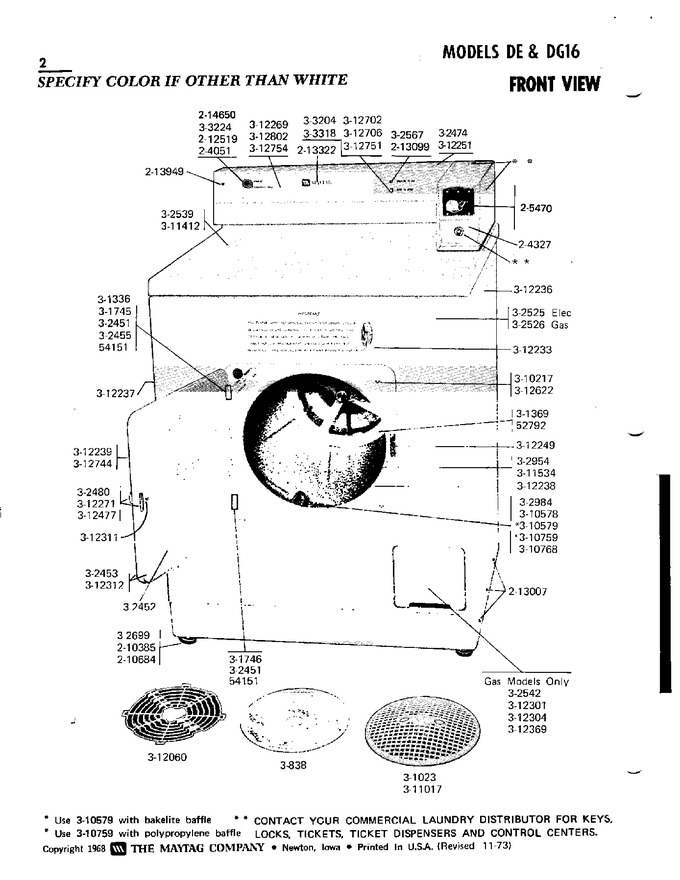

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | NLA | Maytag Coin Slide | 00 |
|
- | ||||
| 002 | 300838 | Lint Screen | 00 |
|
$ 32.17 | ||||
| 003 | 301023 | Lint Screen Retainer | 00 |
|
$ 31.44 | ||||
| 004 | NLA | Shaft With Spider | 00 |
|
- | ||||
| 005 | NLA | Door Hinge On Cabinet | 00 |
|
- | ||||
| 006 | 301746 | Door Hinge On Cabinet | 00 |
|
- | ||||
| 007 | NLA | Hinge Assembly----n | 00 |
|
- | ||||
| 008 | NLA | Door Liner | 00 |
|
- | ||||
| 009 | NLA | Door-white | 00 |
|
- | ||||
| 010 | NLA | Control Cover-white | 00 |
|
- | ||||
| 011 | NLA | Latch | 00 |
|
- | ||||
| 012 | NLA | Front Panel-white | 00 |
|
- | ||||
| 013 | NLA | Top Cover-white | 00 |
|
- | ||||
| 014 | NLA | Access Door (white) | 00 |
|
- | ||||
| 015 | NLA | Pilot Light | 00 |
|
- | ||||
| 016 | 22003428 | Leg, Adjustable (w/nut)---s (Replaces: Y302699) | 00 |
|
Immediately | $ 14.41 | |||
| 017 | NLA | Drum W/felt - Porcelain | 00 |
|
- | ||||
| 018 | NLA | Baffle Assembly - Poly | 00 |
|
- | ||||
| 019 | Y303224 | Selector Switch | 00 |
|
- | ||||
| 020 | NLA | No Longer Available | 00 |
|
- | ||||
| 021 | NLA | Washer | 00 |
|
- | ||||
| 022 | NLA | Screw, No.10-24 X 11/16 Inch | 00 |
|
- | ||||
| 023 | Y310759 | Screw | 00 |
|
$ 5.75 | ||||
| 024 | NLA | Washer | 00 |
|
- | ||||
| 025 | Y311017 | Retainer Spring | 00 |
|
- | ||||
| 026 | NLA | Screw | 00 |
|
- | ||||
| 027 | 311534 | Felt Seal | 00 |
|
- | ||||
| 028 | NLA | Clip For Door Harness | 00 |
|
- | ||||
| 029 | Y312060 | Shield For Spider----c | 00 |
|
- | ||||
| 030 | NLA | Drying Instruction Overlay | 00 |
|
- | ||||
| 031 | NLA | Panel-white | 00 |
|
- | ||||
| 032 | NLA | Panel-white | 00 |
|
- | ||||
| 033 | 312238 | Door Seal | 00 |
|
- | ||||
| 034 | NLA | Door Panel-white | 00 |
|
- | ||||
| 035 | NLA | Strike Plate | 00 |
|
- | ||||
| 036 | NLA | Back For Control Panel | 00 |
|
- | ||||
| 037 | NLA | Angle For Cabinet - Dryer | 00 |
|
- | ||||
| 038 | NLA | Control Panel | 00 |
|
- | ||||
| 039 | NLA | Handle | 00 |
|
- | ||||
| 040 | NLA | Bushing For Access Stud | 00 |
|
- | ||||
| 041 | Y312304 | Stud F/door | 00 |
|
- | ||||
| 042 | NLA | Screw----na | 00 |
|
- | ||||
| 043 | NLA | Insulation - Door | 00 |
|
- | ||||
| 044 | 312369 | Sleeve-access Panel Stud | 00 |
|
- | ||||
| 045 | NLA | Magnetic Latch Retainer | 00 |
|
- | ||||
| 046 | 312622 | Screw, No.10-16 X 1/2 Inch | 00 |
|
- | ||||
| 047 | Y312702 | Knurled Nut | 00 |
|
$ 18.18 | ||||
| 048 | Y312706 | Hex Nut On Switch | 00 |
|
- | ||||
| 049 | Y312744 | Door Panel-white | 00 |
|
- | ||||
| 050 | WPW10139799 | Lock Washer (Replaces: 312751) | 00 |
|
$ 8.32 | ||||
| 051 | NLA | Control Panel | 00 |
|
- | ||||
| 052 | NLA | Control Panel | 00 |
|
- | ||||
| 053 | 204051 | Knob | 00 |
|
Immediately | $ 164.03 | |||
| 054 | NLA | Coin Box-white----na | 00 |
|
- | ||||
| 055 | WP210385 | Nut, Lock (Replaces: 210385) | 00 |
|
$ 6.26 | ||||
| 056 | WP210684 | Foot, Rubber (Replaces: 210684) | 00 |
|
Immediately | $ 14.09 | |||
| 057 | WP90767 | Screw (Replaces: 211294) | 00 |
|
Immediately | $ 7.04 | |||
| 058 | WP90767 | Screw (Replaces: 212276) | 00 |
|
Immediately | $ 7.04 | |||
| 059 | WP488234 | Screw, No.8-32 X 1/4 Inch (Replaces: 212519) | 00 |
|
$ 6.07 | ||||
| 060 | 213007 | Screw, Cabinet | 00 |
|
$ 10.99 | ||||
| 061 | 213099 | Lens For Control Panel | 00 |
|
- | ||||
| 062 | 213322 | Maytag Decal | 00 |
|
- | ||||
| 063 | WP355214 | Screw, No.8-18 X 5/16 Inch (Replaces: 213949) | 00 |
|
Immediately | $ 7.26 | |||
| 064 | NLA | Screw, 1 1/4-20 X 5/16 | 00 |
|
- | ||||
| 065 | NLA | Screw, No.4-40 X 1/4 | 00 |
|
- | ||||
| 066 | 214650 | Screw For 2-4051 Knob | 00 |
|
$ 62.55 | ||||
| 067 | Y301336 | Door Switch | 00 |
|
- | ||||
| 068 | Y302455 | Switch |
|
- | |||||
| 069 | Y303204 | Start Switch With Nuts |
|
- | |||||
| 070 | Y303318 | Switch Assembly With Hex Nu |
|
- |
