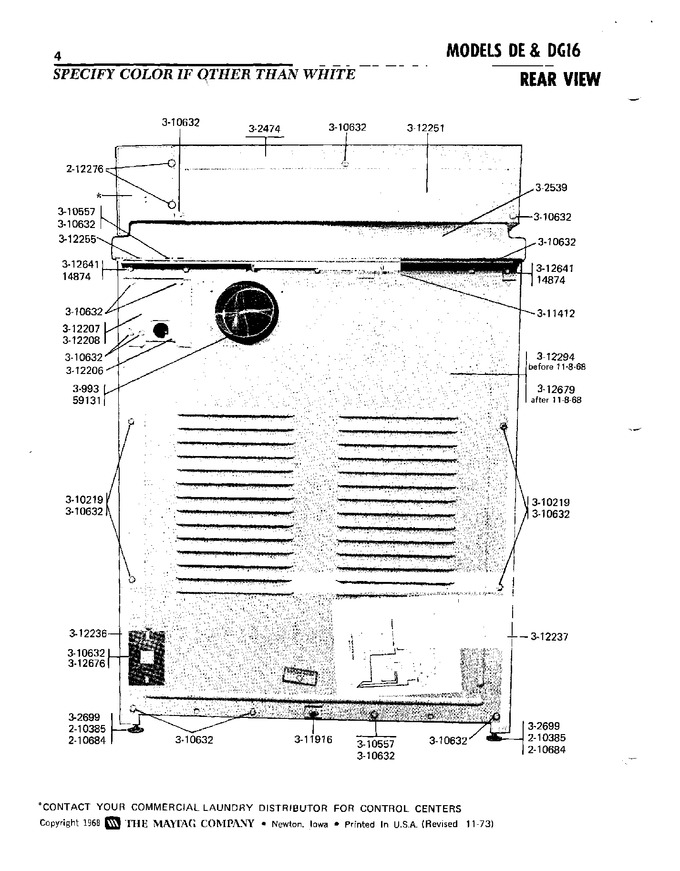

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | NLA | Clamp | 00 |
|
- | ||||
| 002 | NLA | Control Cover-white | 00 |
|
- | ||||
| 003 | 302521 | Power Cord | 00 |
|
- | ||||
| 004 | NLA | Front Panel-white | 00 |
|
- | ||||
| 005 | NLA | Top Cover-white | 00 |
|
- | ||||
| 006 | 22003428 | Leg, Adjustable (w/nut)---s (Replaces: Y302699) | 00 |
|
Immediately | $ 14.41 | |||
| 007 | NLA | Pipe And Bracket Assembly | 00 |
|
- | ||||
| 008 | 310219 | No.10z Fastener | 00 |
|
- | ||||
| 009 | 310557 | Washer | 00 |
|
- | ||||
| 010 | Y310632 | Screw | 00 |
|
- | ||||
| 011 | NLA | Screw | 00 |
|
- | ||||
| 012 | W10850756 | Ground Lug (Replaces: Y311916) | 00 |
|
$ 6.98 | ||||
| 013 | NLA | Terminal Bracket | 00 |
|
- | ||||
| 014 | NLA | Cover For Terminal Opening | 00 |
|
- | ||||
| 015 | NLA | Panel-white | 00 |
|
- | ||||
| 016 | NLA | Panel-white | 00 |
|
- | ||||
| 017 | NLA | Back For Control Panel | 00 |
|
- | ||||
| 018 | NLA | Angle For Cabinet - Dryer | 00 |
|
- | ||||
| 019 | NLA | Back For Cabinet | 00 |
|
- | ||||
| 020 | Y312641 | Ground Clip Speed Nut | 00 |
|
- | ||||
| 021 | NLA | Pipe Support Plate-sq Hole | 00 |
|
- | ||||
| 022 | NLA | Back Panel | 00 |
|
- | ||||
| 023 | WP210385 | Nut, Lock (Replaces: 210385) | 00 |
|
$ 6.26 | ||||
| 024 | WP210684 | Foot, Rubber (Replaces: 210684) | 00 |
|
Immediately | $ 14.09 | |||
| 025 | WP90767 | Screw (Replaces: 212276) | 00 |
|
Immediately | $ 7.04 | |||
| 026 | WPY014874 | Screw (Replaces: Y014874) | 00 |
|
$ 6.98 | ||||
| 027 | Y059131 | Elbow, Venting (4``) | 00 |
|
- |
