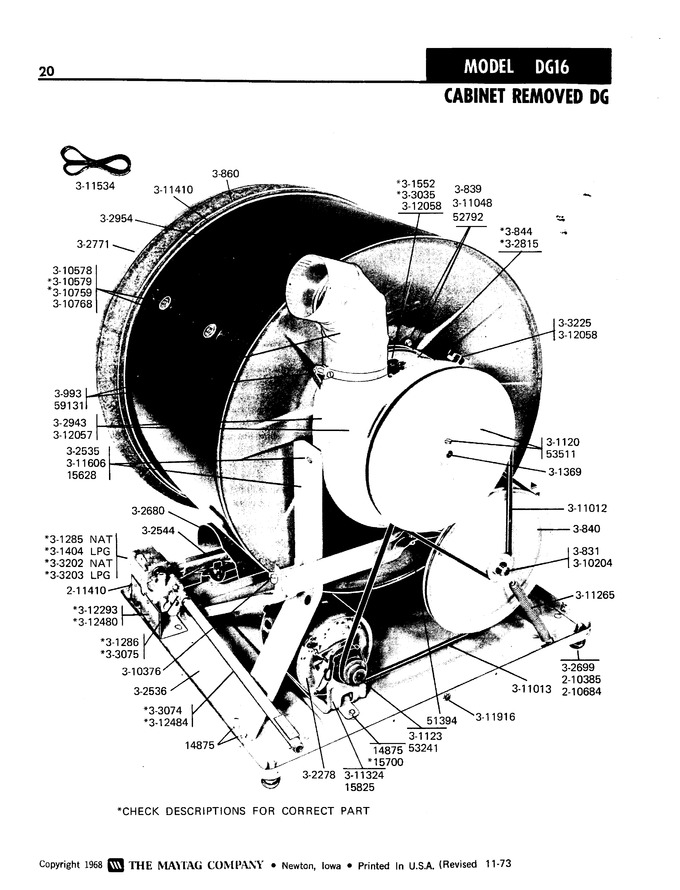

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | NLA | Shaft And Slide | 00 |
|
- | ||||
| 002 | NLA | Seal | 00 |
|
- | ||||
| 003 | 300840 | Reduction Pulley | 00 |
|
- | ||||
| 004 | Y300844 | Exhaust Housing | 00 |
|
- | ||||
| 005 | NLA | Clamp | 00 |
|
- | ||||
| 006 | Y301120 | Drum Pulley | 00 |
|
- | ||||
| 007 | Y304596 | Terminal Post (Replaces: 301122) | 00 |
|
Immediately | $ 22.97 | |||
| 008 | 301123 | Motor Pulley | 00 |
|
$ 1.02 | ||||
| 009 | NLA | Shaft With Spider | 00 |
|
- | ||||
| 010 | 301393 | Insulator | 00 |
|
- | ||||
| 011 | 301552 | Regulating Thermostat | 00 |
|
- | ||||
| 012 | Y301933 | High Limit Thermostat | 00 |
|
- | ||||
| 013 | Y302278 | Motor | 00 |
|
- | ||||
| 014 | NLA | Support | 00 |
|
- | ||||
| 015 | NLA | Base | 00 |
|
- | ||||
| 016 | 22003428 | Leg, Adjustable (w/nut)---s (Replaces: Y302699) | 00 |
|
Immediately | $ 14.41 | |||
| 017 | Y302815 | Blower Housing With Bearing | 00 |
|
- | ||||
| 018 | 302943 | Cover With Lint Seal-blower | 00 |
|
- | ||||
| 019 | NLA | Drum W/felt - Porcelain | 00 |
|
- | ||||
| 020 | WP694674 | Regulating Thermostat (Replaces: 303035) | 00 |
|
Immediately | $ 45.46 | |||
| 021 | Y303036 | High Limit Thermostat | 00 |
|
- | ||||
| 022 | Y303225 | Thermostat, Permanent Press | 00 |
|
$ 46.70 | ||||
| 023 | NLA | Snap Ring | 00 |
|
- | ||||
| 024 | 310262 | Washer | 00 |
|
- | ||||
| 025 | Y310376 | Clip, Wire Harness | 00 |
|
- | ||||
| 026 | NLA | Washer | 00 |
|
- | ||||
| 027 | NLA | Screw, No.10-24 X 11/16 Inch | 00 |
|
- | ||||
| 028 | Y310759 | Screw | 00 |
|
$ 5.75 | ||||
| 029 | NLA | Washer | 00 |
|
- | ||||
| 030 | 310933 | Fastener | 00 |
|
- | ||||
| 031 | Y311012 | Drive Belt | 00 |
|
$ 32.09 | ||||
| 032 | Y311013 | Motor Belt | 00 |
|
$ 28.00 | ||||
| 033 | NLA | Washer, Aluminum | 00 |
|
- | ||||
| 034 | 311265 | Spring | 00 |
|
- | ||||
| 035 | NLA | Motor Base | 00 |
|
- | ||||
| 036 | 311534 | Felt Seal | 00 |
|
- | ||||
| 037 | NLA | Lock Washer | 00 |
|
- | ||||
| 038 | W10850756 | Ground Lug (Replaces: Y311916) | 00 |
|
$ 6.98 | ||||
| 039 | 311944 | Element - 230v | 00 |
|
- | ||||
| 040 | Y311945 | Heater Wire 208 Volt | 00 |
|
- | ||||
| 041 | Y311946 | Heater Wire 240 Volt | 00 |
|
$ 55.28 | ||||
| 042 | WPW10139210 | Screw,spacer ----s (Replaces: Y312057) | 00 |
|
$ 6.75 | ||||
| 043 | WP12990527 | Screw, No.6 X 5/16 Inch (Replaces: Y312058) | 00 |
|
Immediately | $ 7.15 | |||
| 044 | WP210385 | Nut, Lock (Replaces: 210385) | 00 |
|
$ 6.26 | ||||
| 045 | WP210684 | Foot, Rubber (Replaces: 210684) | 00 |
|
Immediately | $ 14.09 | |||
| 046 | WP90767 | Screw (Replaces: 211294) | 00 |
|
Immediately | $ 7.04 | |||
| 047 | WPY014874 | Screw (Replaces: Y014874) | 00 |
|
$ 6.98 | ||||
| 048 | NLA | Cap Screw, No.14 X 1/2 | 00 |
|
- | ||||
| 049 | NLA | Bolt, 5/16 X 3/4 Hex | 00 |
|
- | ||||
| 050 | NLA | Cap Screw, 1/4-20 X 1/2 | 00 |
|
- | ||||
| 051 | WPY015825 | Clip, Motor (Replaces: Y015825) | 00 |
|
$ 21.03 | ||||
| 052 | NLA | Bolt, 5/16 X 2-1/8 | 00 |
|
- | ||||
| 053 | NLA | Screw, 1 1/4-20 X 5/16 | 00 |
|
- | ||||
| 054 | Y053241 | Set Screw, Pulley | 00 |
|
- | ||||
| 055 | Y053511 | Set Screw | 00 |
|
- | ||||
| 056 | NLA | Lock Washer, 5/16 X 3/32 | 00 |
|
- | ||||
| 057 | Y059131 | Elbow, Venting (4``) | 00 |
|
- |
