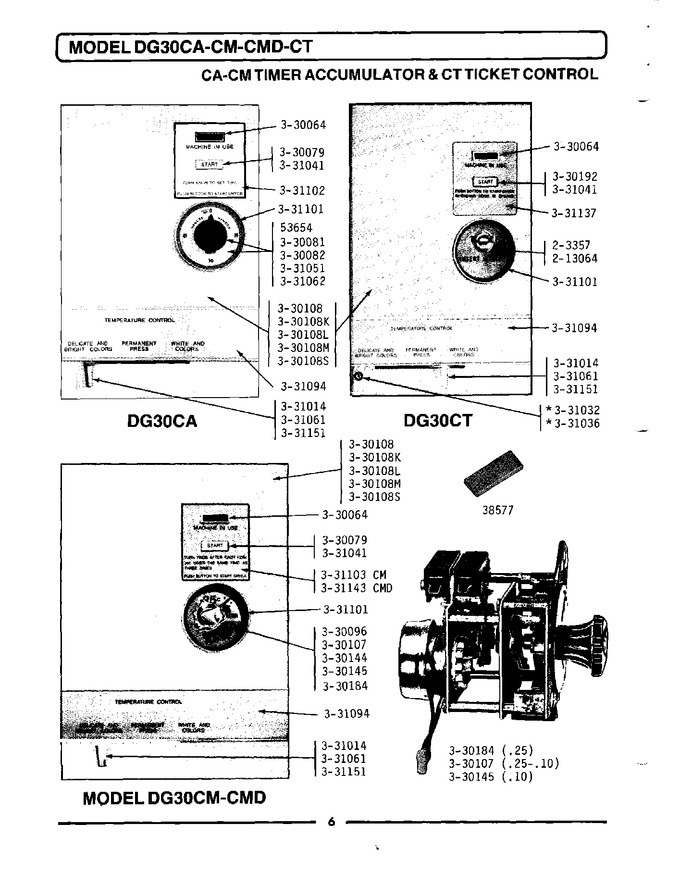

SELECT A DIAGRAM

01 - Front View-door Open


02 - Rear View


03 - Cmd Timer Accumulator


04 - Cmd Timer Accumulator-single Coin


05 - Burner & Controls-upper Compartment


06 - Switch, Temperature & Terminal Block


07 - Ct Control Center & Components


08 - Ct Control Center & Components Series 01


09 - Ticket Receiver Assembly Ct


10 - White Rodgers Gas Valve


11 - Lint Screen-lower Front


12 - Rear View-shield Removed


13 - Drum Bearing Support Assembly


14 - Drum Pulley & Bearing Support Assembly


15 - Motor & Tension Arm Assembly


16 - 240 Volt, 50 Cycle Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	NLA		Tool To Adjust Timing Switc		Appelez-nous	-
002	NLA		Ticket Receiver Assembly		Appelez-nous	-
003	NLA		Front Plate F/ticket Contro		Appelez-nous	-
004	Y330064		Pilot Light		Appelez-nous	-
005	Y330079		Switch, Push-to-start		Appelez-nous	-
006	Y330096		Mounting Plate-accumulator		Appelez-nous	-
007	NLA		Front Panel-white		Appelez-nous	-
008	330108L		Front Panel-almond		Appelez-nous	-
009	330108M		Front Panel-harvest Wheat		Appelez-nous	-
010	NLA		Mounting Plate (accumulator)		Appelez-nous	-
011	Y330145		Conta Accumulator Assembly		Appelez-nous	-
012	330184		Timer Accumulator-25		Appelez-nous	-
013	WP8281196		Screw - Temp. Knob To Lever   (Replaces: 331014)			Immediately	$ 6.47
014	61002031		Screw - Center Panel   (Replaces: 331032)				$ 41.36
015	331036		Washer-front Panel Screws		Appelez-nous	-
016	331041		Button-push-to-start Switch		Appelez-nous	-
017	331061		Knob For Temperature Contro		Appelez-nous	-
018	NLA		Trim Bar For Upper Panel		Appelez-nous	-
019	331101		Bezel For Timer-accumulator		Appelez-nous	-
020	NLA		Instruct Label - Single Coi		Appelez-nous	-
021	331151		Lever-temperature Control		Appelez-nous	-
022	Y330192		Push-to-start Switch		Appelez-nous	-
023	NLA		Timer Accumulator - Cm		Appelez-nous	-
024	NLA		Instruction Plate-ct		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
