SELECT A DIAGRAM

01 - Front View-door Open


02 - Rear View


03 - Cmd Timer Accumulator


04 - Cmd Timer Accumulator-single Coin


05 - Burner & Controls-upper Compartment


06 - Switch, Temperature & Terminal Block


07 - Ct Control Center & Components


08 - Ct Control Center & Components Series 01


09 - Ticket Receiver Assembly Ct


10 - White Rodgers Gas Valve


11 - Lint Screen-lower Front


12 - Rear View-shield Removed


13 - Drum Bearing Support Assembly


14 - Drum Pulley & Bearing Support Assembly


15 - Motor & Tension Arm Assembly


16 - 240 Volt, 50 Cycle Parts

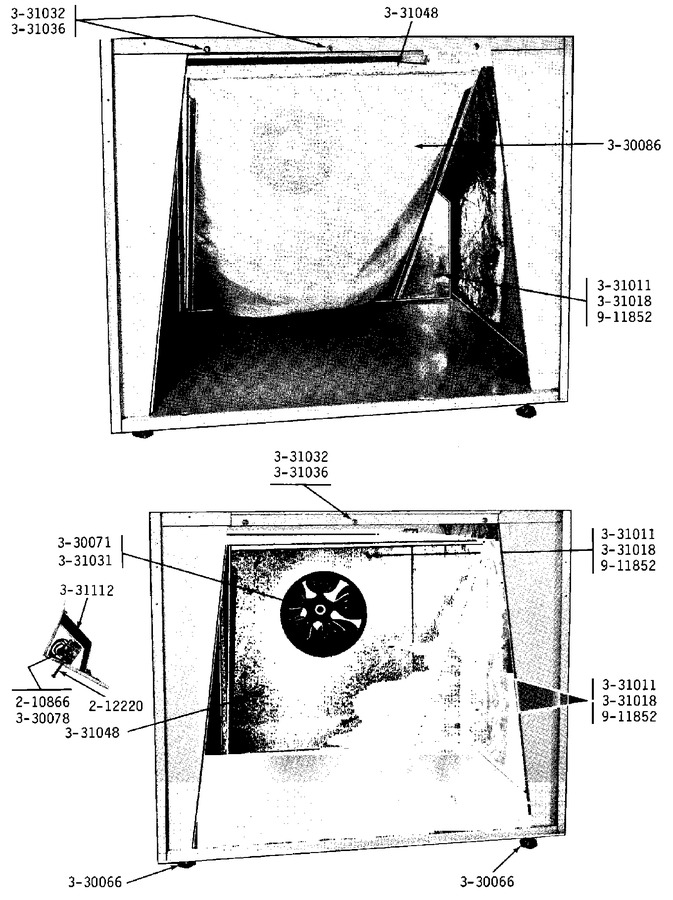

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	WPY055980		Hi-temp Adhesive, 2 Oz Tube   (Replaces: Y055980)			Immediately	$ 28.72
002	210866		Twin Speed Nut		Appelez-nous	-
003	212220		Screw-hex Hd Type B No.6 X 15/16		Appelez-nous	-
004	NLA		Leveling Leg		Appelez-nous	-
005	Y330071		Impeller For Blower		Appelez-nous	-
006	Y330078		Switch, Damper		Appelez-nous	-
007	Y330086		Lint Screen With Frame		Appelez-nous	-
008	NLA		Wing Nut - Lint Hood To Cab		Appelez-nous	-
009	NLA		Washer-lint Hood To Cabinet		Appelez-nous	-
010	331031		Set Screw For Impeller		Appelez-nous	-
011	61002031		Screw - Center Panel   (Replaces: 331032)				$ 41.36
012	331036		Washer-front Panel Screws		Appelez-nous	-
013	331048		Cover For Blower Impeller		Appelez-nous	-
014	NLA		Shield For Damper Switch		Appelez-nous	-
015	911852		Washer, Lock (brace)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
