SELECT A DIAGRAM

01 - Front View-door Open


02 - Rear View


03 - Cmd Timer Accumulator


04 - Cmd Timer Accumulator-single Coin


05 - Burner & Controls-upper Compartment


06 - Switch, Temperature & Terminal Block


07 - Ct Control Center & Components


08 - Ct Control Center & Components Series 01


09 - Ticket Receiver Assembly Ct

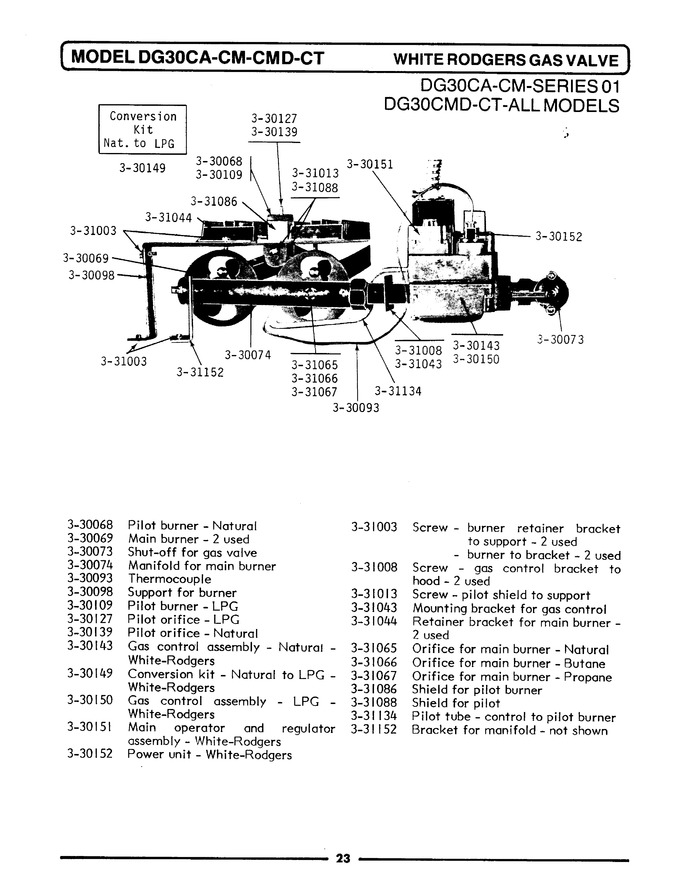

10 - White Rodgers Gas Valve


11 - Lint Screen-lower Front


12 - Rear View-shield Removed


13 - Drum Bearing Support Assembly


14 - Drum Pulley & Bearing Support Assembly


15 - Motor & Tension Arm Assembly


16 - 240 Volt, 50 Cycle Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	Y330068		Pilot Burner - Nat.		Appelez-nous	-
002	NLA		Burner, Main		Appelez-nous	-
003	Y330073		Valve, Shut-off		Appelez-nous	-
004	NLA		Manifold For Main Burner		Appelez-nous	-
005	NLA		Thermocouple----na		Appelez-nous	-
006	NLA		Support For Burners		Appelez-nous	-
007	NLA		Pilot Burner - Lpg		Appelez-nous	-
008	NLA		Pilot Orifice - Lpg		Appelez-nous	-
009	NLA		Pilot Orifice - Nat		Appelez-nous	-
010	NLA		Gas Control, Wr-natural		Appelez-nous	-
011	NLA		Conversion Kit (nat.to Lpg)		Appelez-nous	-
012	NLA		Gas Control, Wr-lpg		Appelez-nous	-
013	NLA		Main Operator & Regulator		Appelez-nous	-
014	NLA		Power Unit		Appelez-nous	-
015	WP489483		Screw - Burner To Bracket   (Replaces: 331003)				$ 9.78
016	NLA		Screw-cont. Bracket To Hood		Appelez-nous	-
017	331013		Screw - Shield To Support		Appelez-nous	-
018	NLA		Bracket For Gas Control		Appelez-nous	-
019	NLA		Retainer Bracket-main Burne		Appelez-nous	-
020	NLA		Orifice, Main Burner-nat.		Appelez-nous	-
021	NLA		Orifice, Main Burner-butane		Appelez-nous	-
022	NLA		Orifice, Main Burner-propan		Appelez-nous	-
023	331086		Shield For Pilot Burner		Appelez-nous	-
024	NLA		Pilot Shield		Appelez-nous	-
025	NLA		Pilot Tubing-wr		Appelez-nous	-
026	NLA		Bracket For Manifold		Appelez-nous	-
101	Y330068		Pilot Burner - Nat.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
