SELECT A DIAGRAM

01 - Front View-door Open


02 - Rear View


03 - Cmd Timer Accumulator


04 - Cmd Timer Accumulator-single Coin


05 - Burner & Controls-upper Compartment


06 - Switch, Temperature & Terminal Block


07 - Ct Control Center & Components


08 - Ct Control Center & Components Series 01


09 - Ticket Receiver Assembly Ct


10 - White Rodgers Gas Valve


11 - Lint Screen-lower Front


12 - Rear View-shield Removed


13 - Drum Bearing Support Assembly

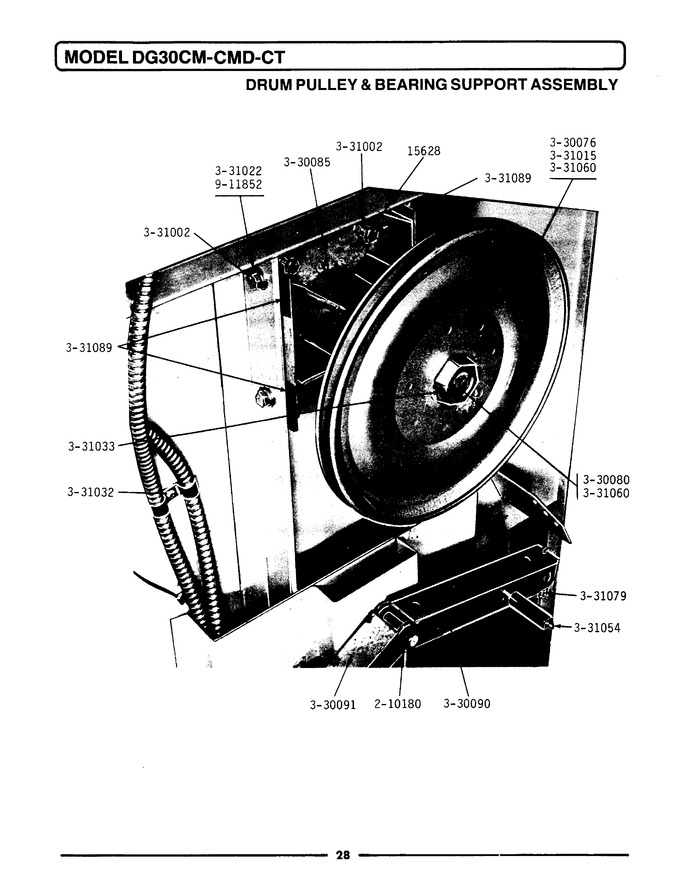

14 - Drum Pulley & Bearing Support Assembly


15 - Motor & Tension Arm Assembly


16 - 240 Volt, 50 Cycle Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	NLA		Bolt, 5/16 X 3/4 Hex		Appelez-nous	-
002	210180		Retaining Ring		Appelez-nous	-
003	Y330076		Pulley, Drum		Appelez-nous	-
004	Y330080		Spider And Shaft Asy.		Appelez-nous	-
005	Y330085		Drum Support Housing		Appelez-nous	-
006	NLA		Tension Arm - Long		Appelez-nous	-
007	Y330091		Tension Arm - Medium		Appelez-nous	-
008	NLA		Bolt For Drum		Appelez-nous	-
009	NLA		Set Screw For Drum Pulley		Appelez-nous	-
010	NLA		Washer For Drum Support		Appelez-nous	-
011	61002031		Screw - Center Panel   (Replaces: 331032)				$ 41.36
012	331033		Hex Nut-drum Pulley Shaft		Appelez-nous	-
013	331054		Grease Fitting - Pulley Pin		Appelez-nous	-
014	331060		Key For Drum		Appelez-nous	-
015	331079		Tension Spring		Appelez-nous	-
016	331089		Shim For Drum Rod		Appelez-nous	-
017	911852		Washer, Lock (brace)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
