| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
52518W |
|
Access Door, White |
|
Appelez-nous
|
- |
|
|
|
| 1 |
52518A |
|
Access Door, Avocado |
|
Appelez-nous
|
- |
|
|
|
| 1 |
52518C |
|
Access Door, Coppertone |
|
Appelez-nous
|
- |
|
|
|
| 1 |
52518H |
|
Xreplace |
|
Appelez-nous
|
- |
|
|
|
| 2 |
51351 |
|
Hinge,rear |
|
Appelez-nous
|
- |
|
|
|
| 3 |
21903 |
|
Strain Relief |
|
Appelez-nous
|
- |
|
|
|
| 4 |
51924 |
|
Screw,10-24 X 1/2 Hex |
|
Appelez-nous
|
- |
|
|
|
| 5 |
M0282009 |
 |
Locknut (Replaces: 23951) |
|
|
|
$ 12.06 |
|
|
| 6 |
54300 |
|
Ground Wire, Green |
|
Appelez-nous
|
- |
|
|
|
| 7 |
20267 |
|
Screw,10-24 X 3/8 Round |
|
Appelez-nous
|
- |
|
|
|
| 8 |
03815 |
|
Lockwasher,no.10 Ext Shk |
|
|
|
$ 3.34 |
|
|
| 9 |
51508 |
|
Power Cord |
|
Appelez-nous
|
- |
|
|
|
| 10 |
03203 |
|
Screw,8-32 X 3/8 Round Head |
|
|
|
$ 14.54 |
|
|
| 11 |
51355 |
|
Bumper |
|
Appelez-nous
|
- |
|
|
|
| 12 |
52614 |
|
Top Baffle Assembly |
|
Appelez-nous
|
- |
|
|
|
| 13 |
Sub. To 807429P |
|
Nut K (Replaces: 51236) |
|
Appelez-nous
|
- |
|
|
|
| 14 |
SM5038-12 |
 |
Nut,nylon (Replaces: 22678) |
|
|
Immediately |
$ 53.70 |
|
|
| 15 |
52503C |
|
Cabinet Top, Coppertone |
|
Appelez-nous
|
- |
|
|
|
| 15 |
52503A |
|
Cabinet Top, Avocado |
|
Appelez-nous
|
- |
|
|
|
| 15 |
52503H |
|
Cabinet Top, Harvest Gold |
|
Appelez-nous
|
- |
|
|
|
| 15 |
52503W |
|
Cabinet Top, White |
|
Appelez-nous
|
- |
|
|
|
| 16 |
53445 |
|
Bumper |
|
Appelez-nous
|
- |
|
|
|
| 17 |
23007 |
|
Caged Nut |
|
Appelez-nous
|
- |
|
|
|
| 18 |
Y00000000 |
|
See Note Ground Wire, Green |
|
Appelez-nous
|
- |
|
|
|
| 19 |
Sub. To D510402P |
|
Relief,strain (Replaces: 52113) |
|
Appelez-nous
|
- |
|
|
|
| 20 |
51350 |
|
Hinge,front |
|
Appelez-nous
|
- |
|
|
|
| 21 |
03630 |
|
Screw,6-32 X 3/8 Round |
|
Appelez-nous
|
- |
|
|
|
|
NOTE: |
|
This Assembly Will Be Supplied Whenever 52963gr Lint Screen Housing Or 53058gr Inner Door Panel Is Ordered. |
|
Appelez-nous
|
- |
|
|
|

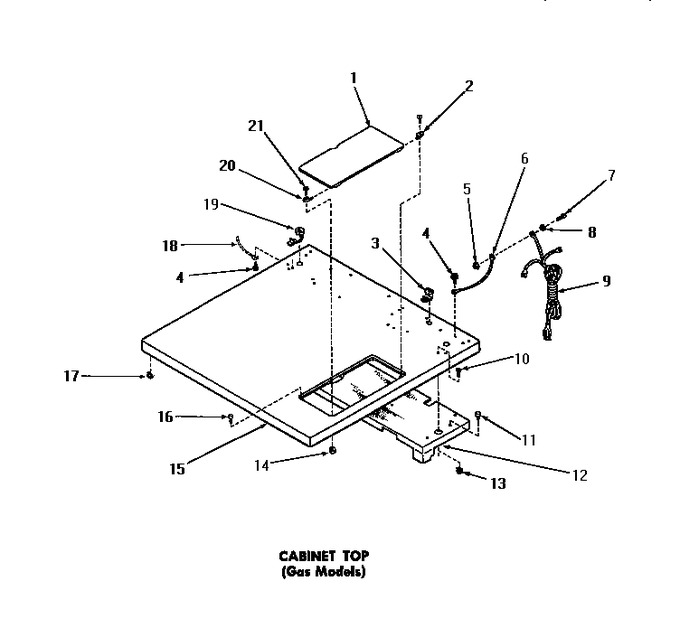

View Diagram in Separate Window
Print Part List
