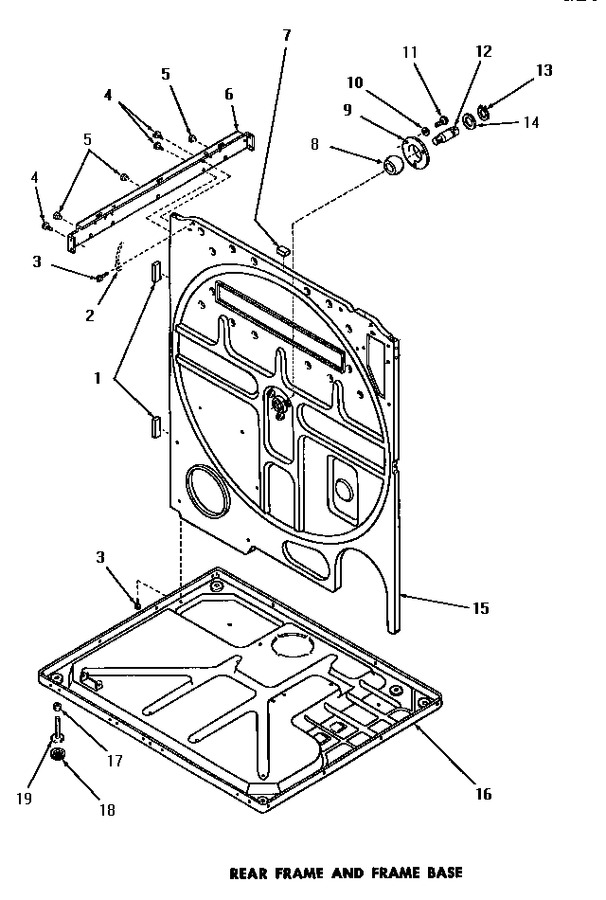

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	20354		Bumper Pad		Appelez-nous	-
2	Y00000000		See Note Ground Wire, Green		Appelez-nous	-
3	51784		Screw,10b-16 X 1/2 Hex		Appelez-nous	-
4	WP3390631		Hex Head Screw   (Replaces: 51780)				$ 7.04
5	21685		Bumper			Immediately	$ 6.95
6	51818		Support Channel, Right Or Left		Appelez-nous	-
7	Y0054053		Element, Large 120v		Appelez-nous	-
8	Y52079		Bearing,drum Shaft		Appelez-nous	-
9	51826		Cover,bearing		Appelez-nous	-
10	03189		Lockwasher,1/4 Std-c P		Appelez-nous	-
11	53589		Screw,1/4-20 X 5/8 Hex		Appelez-nous	-
12	53132		Shaft,drum		Appelez-nous	-
13	70061		Ring,retaining				$ 1.70
14	Y52564		Washer		Appelez-nous	-
15	52574		Frame,rear		Appelez-nous	-
16	Y52572		Frame Base		Appelez-nous	-
17	52794		Nut, Hex 3/8-16		Appelez-nous	-
18	70282		Foot,rubber		Appelez-nous	-
19	WP233550		Foot,adjustable   (Replaces: Y52696)				$ 7.16

    View Diagram in Separate Window       Print Part List
