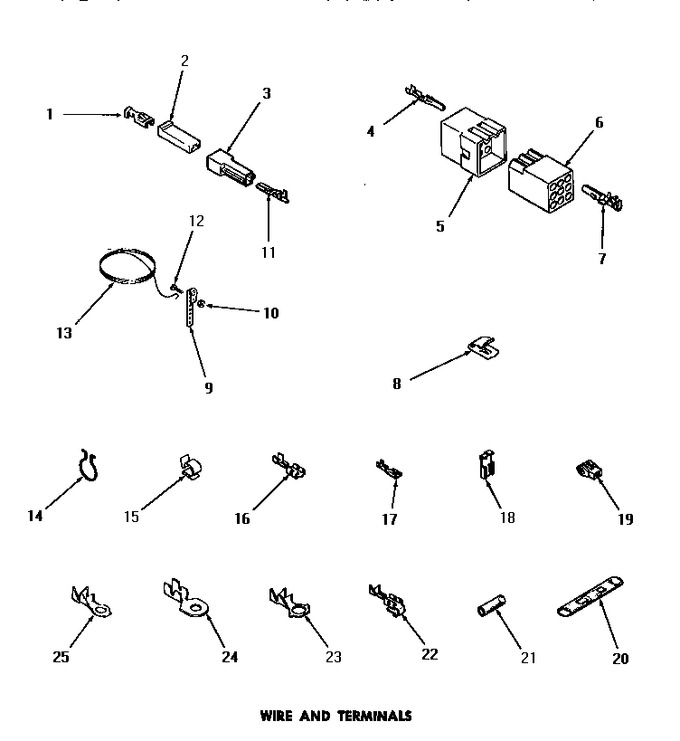

21 - Wire & Terminals


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y00115		Terminal,spade-1/4 Fem		Appelez-nous	-
2	90789		Connector		Appelez-nous	-
3	90788		Housing,tab		Appelez-nous	-
4	Y00116		Terminal,pin-male		Appelez-nous	-
5	23033		Plug,9 Circuit		Appelez-nous	-
6	26163		Receptacle,9 Circuit		Appelez-nous	-
7	Y00117		Female Socket Terminal		Appelez-nous	-
8	20309		Cable Clip		Appelez-nous	-
9	21430		Strap,ground		Appelez-nous	-
10	Y20276		Nut		Appelez-nous	-
11	00133		Terminal,tab-1/4 Male		Appelez-nous	-
12	21431		Round Head Screw		Appelez-nous	-
13	Y21429		Ground Wire		Appelez-nous	-
14	51291		Clip,wire		Appelez-nous	-
15	21036		Clip,cable				$ 62.49
16	Y00119		Spade Terminal(18 Gauge)		Appelez-nous	-
17	00112		Terminal,spade-3/16 Fe		Appelez-nous	-
18	Y00120		Terminal,flag-1/4 Fema		Appelez-nous	-
19	70210		Insulator,blue		Appelez-nous	-
20	21091		Connector Two 1/4 Inch Male		Appelez-nous	-
21	Y21365		Insulator Sleeve		Appelez-nous	-
22	Y00114		Terminal,spade-1/4 Fem		Appelez-nous	-
23	Y00113		Terminal,ring-1/4 Stud		Appelez-nous	-
24	Y00111		Terminal,ring-10 Stud		Appelez-nous	-
25	00110		Terminal,ring-10 Stud				$ 9.23
